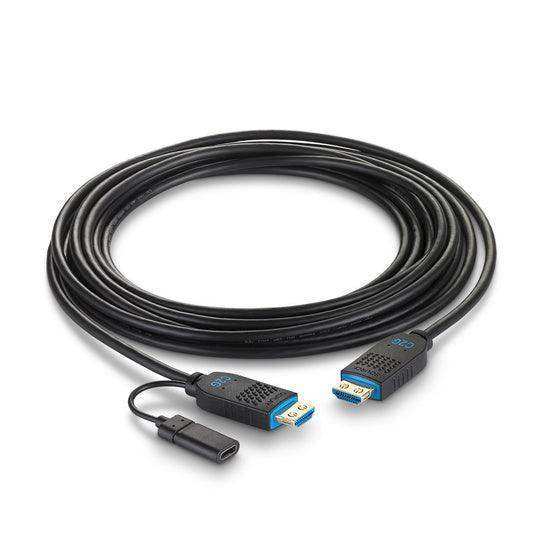

C2G C2G41488 – 150ft Plenum-Rated HDMI Active Optical Cable 4K 60Hz 18Gbps
C2G C2G41488 – 150ft Plenum-Rated HDMI Active Optical Cable 4K 60Hz 18Gbps is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
C2G C2G41488 – 150ft Plenum-Rated HDMI Active Optical Cable 4K 60Hz...
Product Overview
The C2G C2G41488 150ft Performance Series High Speed HDMI Active Optical Cable (AOC) — Plenum-Rated extends 4K 60Hz HDMI at 18Gbps over 150 feet of fiber strand cable with a CMP plenum jacket for code-compliant above-ceiling and in-wall installation. This plenum HDMI AOC delivers EMI/RFI-immune signal performance in classrooms, conference rooms, healthcare facilities, and commercial AV installations where both long-run HDMI reliability and plenum cable compliance are required. Kevlar reinforcement provides the pull strength needed for conduit installation.
Product Description
The C2G41488 uses fiber strand construction to carry the HDMI 2.0 signal immune to electromagnetic and radio frequency interference — critical in commercial buildings with HVAC motors, fluorescent lighting, and dense network cabling. The CMP plenum jacket allows direct above-ceiling installation meeting NEC requirements without conduit in most jurisdictions.
This is the 150ft plenum model in C2G's Performance Series AOC line. For longer plenum runs, the C2G41489 (200ft) and C2G41490 (250ft) are available at creationnetworks.net. The cable is directional and source-powered from the HDMI port in most installations. It carries a lifetime warranty.
Key Features
- 150ft (46m) Plenum-Rated HDMI Extension — CMP plenum jacket for direct above-ceiling and in-wall installation meeting NEC fire code requirements.
- 4K 60Hz (4:4:4) at 18Gbps — Full HDMI 2.0 bandwidth with no signal degradation at 150 feet.
- EMI/RFI Immune Fiber Construction — Fiber strands eliminate interference from HVAC, lighting, and network equipment.
- Kevlar Reinforced — Enhanced pull strength for conduit and overhead cable installation.
- HDR Support (PQ and HLG) — Passes HDR10 and HLG metadata for 4K HDR displays.
- eARC, ARC, CEC Supported — Full HDMI 2.0 feature set.
- Source-Powered — No external power supply required in most installations.
- Lifetime Warranty — C2G commercial lifetime warranty.
Typical Applications
- Plenum above-ceiling HDMI runs in classrooms and conference rooms
- Healthcare facility display installation in high-EMI environments
- Digital signage in plenum-rated commercial airspace
- Government and education facilities requiring NEC-compliant AV cable
- Auditorium and training room 4K display extension
Technical Specifications
| Cable Length | 150ft (46m) |
| Cable Type | Active Optical Cable (AOC), fiber strand |
| Jacket Rating | Plenum (CMP) |
| HDMI Standard | HDMI 2.0 |
| Max Resolution | 4K (4096x2160) at 60Hz, 4:4:4 |
| Bandwidth | 18 Gbps |
| HDR | PQ (HDR10) and HLG |
| Audio | Up to 32 channels; Dolby TrueHD, DTS-HD Master Audio, eARC/ARC |
| Power | Source-powered; no external supply in most installations |
| Reinforcement | Kevlar strands |

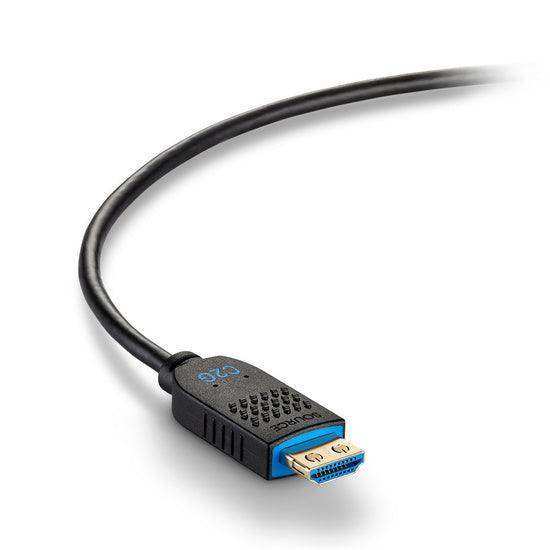

| Directional | Yes — TX to source, RX to display |
| Warranty | Lifetime |
| SKU | C2G41488 |
Frequently Asked Questions
- How does this differ from C2G41489 and C2G41490?
The C2G41488 is 150ft plenum-rated. The C2G41489 is 200ft plenum-rated. The C2G41490 is 250ft plenum-rated. All deliver 4K 60Hz at 18Gbps with CMP jackets.
- Is a power supply required?

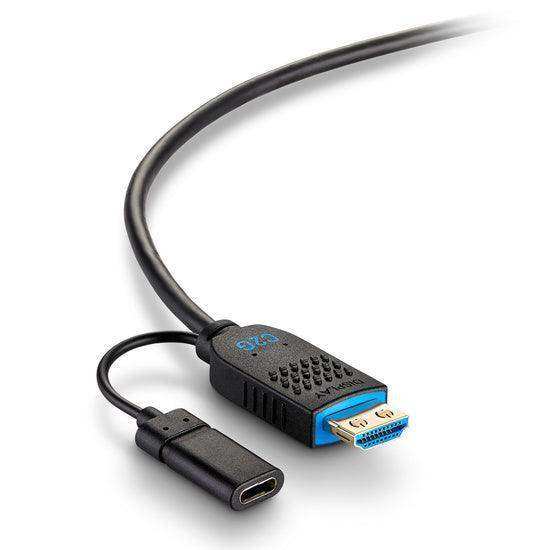

No. The cable is source-powered via the HDMI port. Some sources with limited output may need a USB power injector, sold separately.
- Can it be cut or field-terminated?
No. AOC cables are factory terminated and cannot be cut or re-terminated.
- What warranty does C2G provide?
Lifetime warranty. Contact Creation Networks at creationnetworks.net.
