C2G C2G31030 – HDBaseT Single-Gang Wall Plate HDMI + USB Extender 4K 30Hz

Product Overview

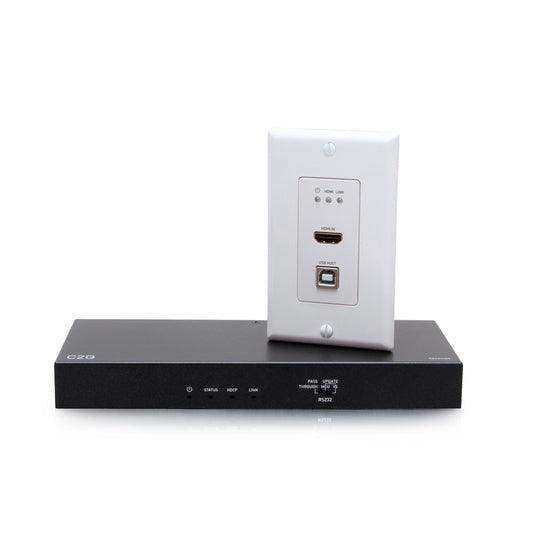

The C2G C2G31030 HDBaseT Single-Gang Wall Plate Transmitter to Box Receiver Kit extends 4K 30Hz HDMI and USB 2.0 from a single-gang wall plate over a single Cat5e, Cat6, or Cat6a cable to a box receiver at the display. Supporting 4K at 30Hz up to 130ft over Cat6a and 1080p up to 230ft over Cat5e/6, this kit is optimized for conference rooms, classrooms, and huddle spaces where a clean single-gang presenter connection is required alongside USB touch extension for interactive displays. RS232 pass-through supports room control system integration.

Product Description

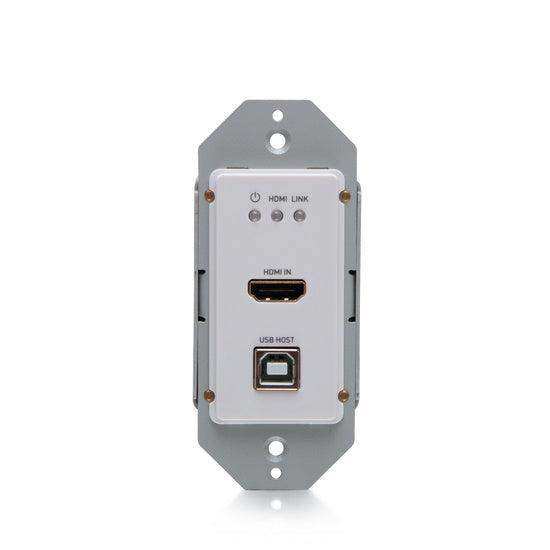

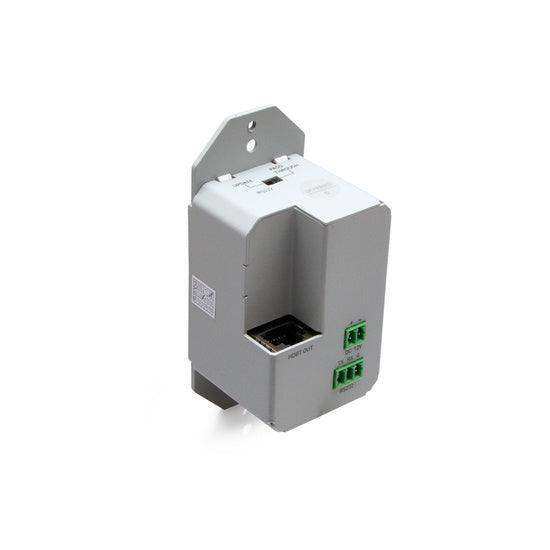

The single-gang wall plate transmitter fits standard electrical boxes and accepts HDMI input at up to 4K 30Hz and a USB-B connection from the host computer. The box receiver provides HDMI output to the display and USB-A for the interactive whiteboard or touch panel. A single Cat cable carries all signals between the two units. RS232 serial control pass-through allows room automation systems to manage display power and input selection.

This kit is the 4K 30Hz single-gang variant in C2G's HDBaseT wall plate line. For 4K 60Hz performance or dual-input HDMI/VGA capability, see additional C2G HDBaseT kits at creationnetworks.net.

Key Features

• Single-Gang Wall Plate Transmitter — Fits standard electrical boxes for a clean, permanent HDMI connection point at the presenter location.
• 4K 30Hz HDMI Extension — Extends HDMI at 4K 30Hz up to 130ft over Cat6a; 1080p up to 230ft over Cat5e/6.
• USB 2.0 Data Extension — USB-B to USB-A for interactive whiteboard and touch display connectivity.
• RS232 Control Pass-Through — Serial control for room automation system integration.
• HDCP Support — Compatible with HDCP-protected content.
• Single Cat Cable — All signals over one Cat5e, Cat6, or Cat6a cable.

Typical Applications

• Conference room single-gang wall plate HDMI connection with whiteboard USB
• Classroom presenter wall plate to ceiling-mounted display
• Huddle space single-gang HDMI and USB extension
• Training room display system with RS232 control

Technical Specifications

Frequently Asked Questions

Does this support 4K 60Hz?

No. This kit supports 4K at 30Hz maximum. For 4K 60Hz HDBaseT extension, see C2G kits such as the C2G30024 or C2G31011 at creationnetworks.net.

Does it fit a standard single-gang box?

Yes. The wall plate transmitter mounts in a standard single-gang electrical box or mud ring.

Can this extend USB for an interactive whiteboard?

Yes. USB-B on the wall plate connects to the host and USB-A on the receiver connects to the whiteboard for simultaneous video and USB touch extension.

What warranty does C2G provide?

C2G provides a standard commercial warranty. Contact Creation Networks at creationnetworks.net for support.
