C2G C2G31013 – HDBaseT Box to Box HDMI + USB + RS232 Extender 4K 60Hz

Product Overview

The C2G C2G31013 HDBaseT Box-to-Box Extender Kit extends 4K 60Hz HDMI, 3.5mm audio, USB 2.0, and RS232 control from a compact box transmitter to a box receiver over a single Cat5e, Cat6, or Cat6a cable — up to 130ft at 4K over Cat6a, or 230ft at 1080p over Cat5e/6. The box-to-box form factor suits AV rack installations where a wall plate is not required — the transmitter mounts near the source device in the rack or on a table, and the receiver mounts near the display. Designed for conference rooms, classrooms, and lecture halls requiring USB whiteboard extension alongside HDMI signal distribution.

Product Description

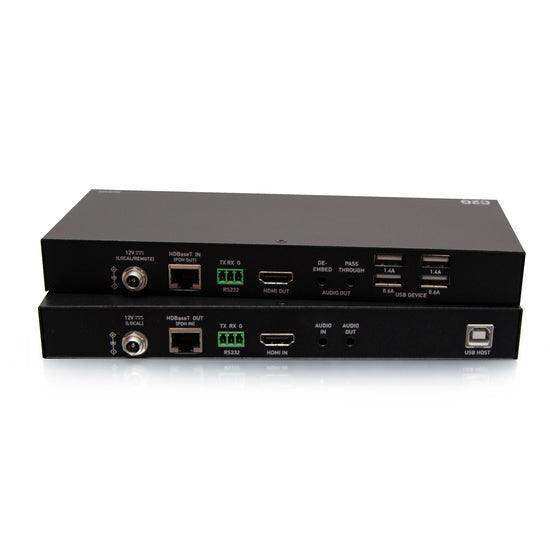

The box transmitter accepts HDMI (up to 4K 60Hz at 4:4:4 with HDCP 2.2), a 3.5mm audio input for analog audio embedding, and a USB-B connection from the host computer. RS232 pass-through supports display power and input control from Crestron, AMX, Extron, and other room control processors. All signals are transmitted over a single Cat cable to the box receiver, which outputs HDMI to the display and USB-A to the whiteboard or touch device.

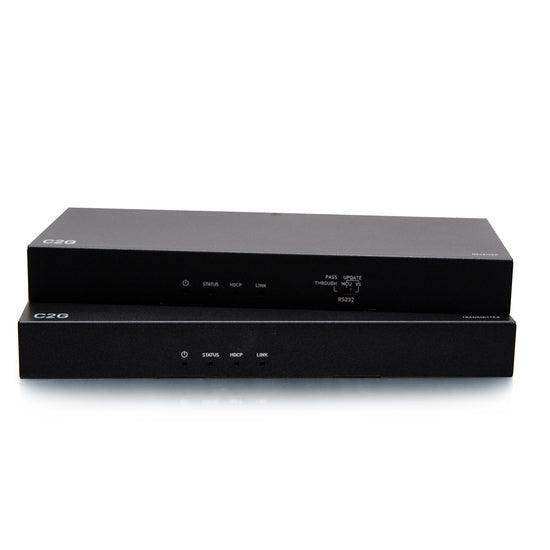

The box-to-box design is the preferred form factor for AV rack environments where the source is a dedicated PC or media player and a wall plate presenter connection is not required. The compact enclosures allow surface mounting near the source and display respectively.

Key Features

• Box-to-Box Form Factor — Compact box transmitter and receiver for rack or surface mount installations without a wall plate.
• 4K 60Hz (4:4:4) over Cat6a to 130ft — Full 18Gbps HDMI 2.0 bandwidth at 4K 60Hz up to 130ft; 1080p to 230ft over Cat5e/6.
• USB 2.0 Data Extension — USB-B to USB-A for interactive whiteboard and touch display connectivity.
• 3.5mm Audio Input — Accepts analog audio for embedding alongside HDMI video.
• RS232 Control Pass-Through — Serial control for room automation system integration.
• HDCP 2.2 Support — Compatible with protected 4K content.
• Single Cat Cable for All Signals — All video, USB, audio, and control signals over one Cat5e/6/6a cable.

Typical Applications

• AV rack-to-display HDMI + USB extension in conference rooms
• Classroom and lecture hall box transmitter at instructor station
• Training room display system with whiteboard USB extension
• Boardroom AV rack to wall-mounted 4K display

Technical Specifications

Frequently Asked Questions

When should I choose box-to-box over a wall plate kit?

Box-to-box is the right choice when the HDMI source is a dedicated rack-mounted PC, media player, or AV processor where a wall plate presenter connection is not needed. Wall plate kits suit rooms where users bring their own laptops.

What is the maximum 4K distance?

Up to 130ft (40m) at 4K 60Hz over Cat6a. 1080p extends to 230ft over Cat5e or Cat6.

Does this support interactive whiteboards?

Yes. USB-B on the transmitter connects to the host and USB-A on the receiver connects to the whiteboard, extending both video and USB touch simultaneously.

What warranty does C2G provide?

C2G provides a standard commercial warranty. Contact Creation Networks at creationnetworks.net for support.
