C2G C2G30024 – 4K HDBaseT Wall Plate Transmitter to Box Receiver HDMI + USB

Product Overview

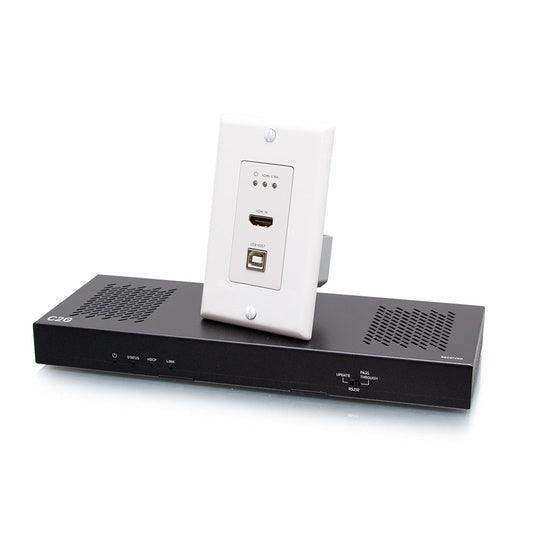

The C2G C2G30024 HDBaseT wall plate transmitter to box receiver kit extends 4K HDMI video, USB 2.0, and RS232 control signals from a single-gang wall plate at the source end to a box receiver at the display over Cat6a up to 130ft — or up to 230ft at 1080p over Cat5e/6. Designed for conference rooms, classrooms, and lecture halls where a clean wall plate at the presenter connection point is required, this kit integrates the transmitter directly into a standard single-gang electrical box while the compact receiver mounts near the display. USB-B to USB-A extension supports interactive whiteboards and touch displays.

Product Description

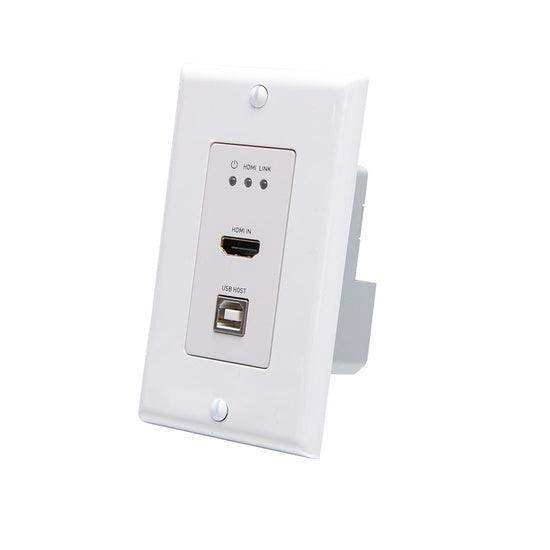

The wall plate transmitter accepts HDMI input (up to 4K 60Hz at 4:4:4 via Cat6a, or 4K at 115ft and 1080p at 230ft via Cat5e/6) and a USB-B connection from the host computer. It fits a standard single-gang wall box and presents a clean, professional surface plate at the presenter end. The RS232 port allows serial control commands to pass through the HDBaseT link for display power and input management from a control system.

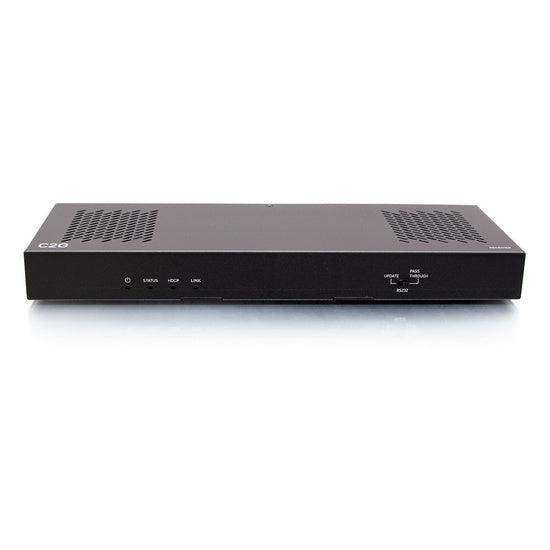

The paired box receiver provides HDMI output to the display and a USB-A port for the interactive whiteboard or touch peripheral. HDCP 2.2 support ensures compatibility with protected 4K content. Both units are NDAA Section 889 compliant. The wall plate format makes this kit the preferred choice for permanent room installations where table boxes are not appropriate and cable management through the wall is required.

Key Features

• Single-Gang Wall Plate Transmitter — Mounts in a standard electrical box for a clean, permanent installation at the presenter connection point.
• 4K 60Hz (4:4:4) over Cat6a — Extends 4K HDMI at full 18Gbps bandwidth up to 130ft over Cat6a; 4K at 115ft and 1080p at 230ft over Cat5e/6.
• USB 2.0 Extension (USB-B to USB-A) — Extends USB 2.0 alongside HDMI for interactive whiteboard and touch display connectivity.
• RS232 Control Pass-Through — Passes RS232 serial control for display management from Crestron, AMX, or Extron control systems.
• HDCP 2.2 Support — Compatible with protected 4K content sources.
• NDAA 889 Compliant — Approved for government and federally funded education AV installations.
• Single Cat Cable Run — All signals travel over one Cat5e, Cat6, or Cat6a cable, minimizing conduit usage.
• 5-Year Warranty — Backed by C2G's commercial product warranty.

Typical Applications

• Conference room wall plate HDMI connection with USB whiteboard extension
• Classroom and lecture hall presenter wall plate to ceiling-mounted display
• Training room RS232-controlled display integration
• Government meeting room permanent AV installation
• Corporate huddle room clean-wall HDMI/USB connectivity

Technical Specifications

Frequently Asked Questions

Does this fit a standard single-gang electrical box?

Yes. The wall plate transmitter is designed to mount in a standard single-gang electrical box or mud ring for a flush, permanent installation.

What is the maximum 4K extension distance?

Up to 130ft (40m) at 4K 60Hz over Cat6a. Using Cat5e or Cat6, 4K extends to 115ft and 1080p extends to 230ft.

Can this be used with an interactive whiteboard?

Yes. The USB-B port on the wall plate connects to the host computer and the USB-A port on the receiver connects to the whiteboard, extending both HDMI video and USB touch simultaneously over the same Cat cable.

Is RS232 bidirectional?

The RS232 port passes serial control signals through the HDBaseT link. Consult the product documentation for directionality details specific to your control system integration.

Is this NDAA compliant for government projects?

Yes. The C2G30024 is NDAA Section 889 compliant, meeting federal procurement requirements for government facility AV installations.

What warranty is provided?

C2G provides a 5-year warranty. Contact Creation Networks at creationnetworks.net for warranty support.
