C2G C2G30022 – 4K Dual HDMI HDBaseT Single-Gang Wall Plate Transmitter
Product Overview

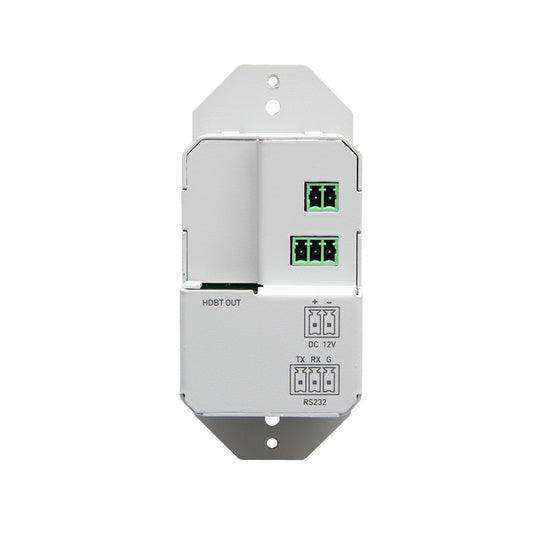

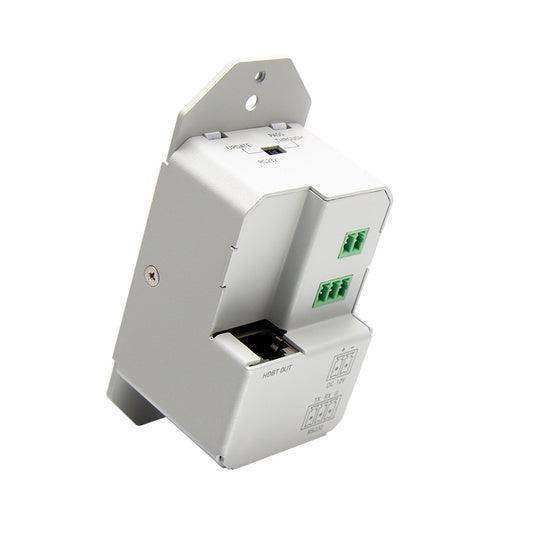

The C2G C2G30022 4K Dual HDMI HDBaseT Single-Gang Wall Plate Transmitter extends 4K 60Hz HDMI with RS232 control from a single-gang wall plate over a single Cat5e, Cat6, or Cat6a cable — up to 130ft at 4K over Cat6a, or 230ft at 1080p over Cat5e/6. This transmitter-only unit provides two HDMI inputs at the wall plate presenter location, accommodating two HDMI source connections with switching for conference rooms, classrooms, and lecture halls. It pairs with a compatible C2G HDBaseT box receiver at the display end.
Product Description
The dual HDMI input wall plate allows two HDMI sources — such as a room PC and a guest laptop connection — to be connected at the presenter wall plate location with switching between them. Only one signal is transmitted over the Cat cable at a time. RS232 pass-through supports display control from room control processors. HDCP 2.2 ensures protected 4K content compatibility.
Note: This is a transmitter-only unit. A compatible C2G HDBaseT receiver is required at the display end. This single-gang wall plate transmitter fits standard electrical boxes for permanent room installation. Contact Creation Networks at creationnetworks.net to confirm receiver compatibility.
Key Features

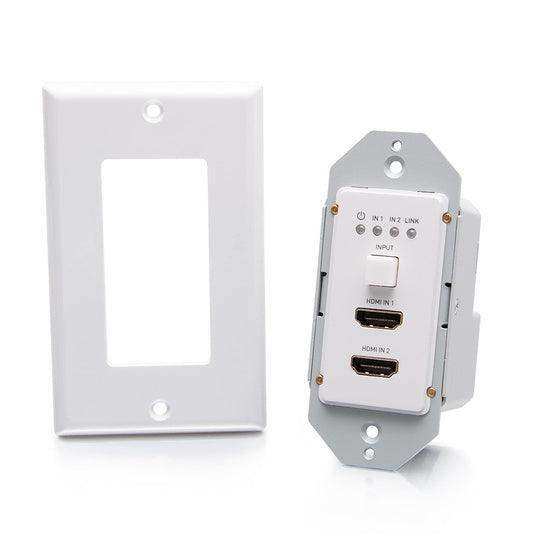

- Dual HDMI Inputs at Single-Gang Wall Plate — Two HDMI source connections at the presenter location for room PC and guest laptop connectivity.
- 4K 60Hz over Cat6a to 130ft — Full 18Gbps HDMI 2.0 at 4K 60Hz; 4K to 115ft and 1080p to 230ft over Cat5e/6.
- RS232 Control Pass-Through — Serial control for room automation system integration.
- HDCP 2.2 — Protected 4K content compatible.
- Transmitter Only — Pairs with compatible C2G HDBaseT receiver (sold separately).
Typical Applications
- Conference room dual-HDMI wall plate for room PC and guest laptop
- Classroom and lecture hall dual HDMI presenter connection point
- Training room dual-source HDMI with RS232 display control
- Corporate boardroom wall plate with two HDMI inputs
Technical Specifications
| Form Factor | Single-gang wall plate transmitter (TX only) |
| HDMI Inputs | 2x HDMI |
| Max Distance — 4K over Cat6a | 130ft (40m) |
| Max Distance — 4K over Cat5e/6 | 115ft (35m) |
| Max Distance — 1080p over Cat5e/6 | 230ft (70m) |
| RS232 | Yes — pass-through |
| HDCP | HDCP 2.2 |
| SKU | C2G30022 |
