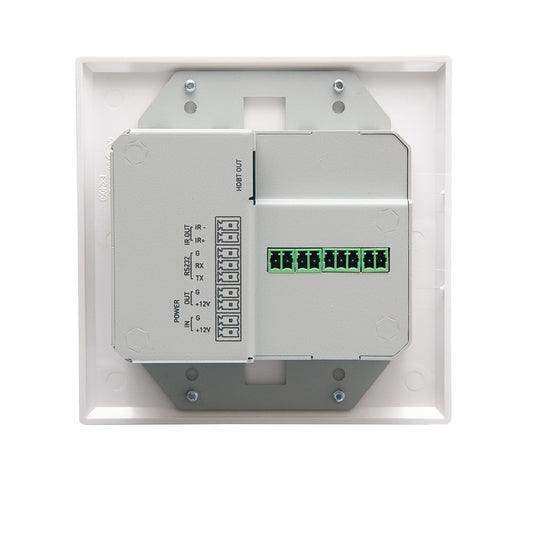

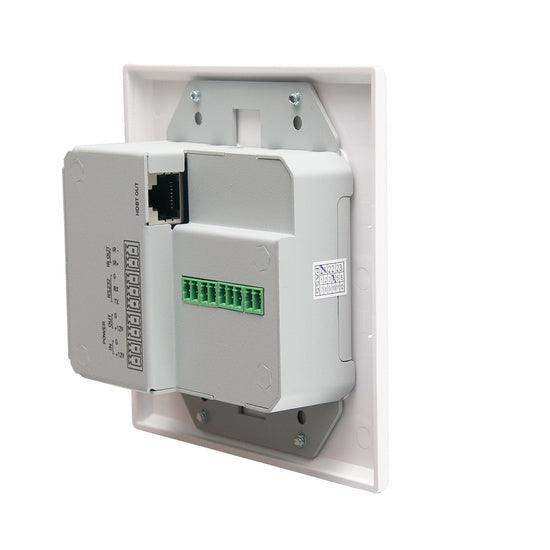

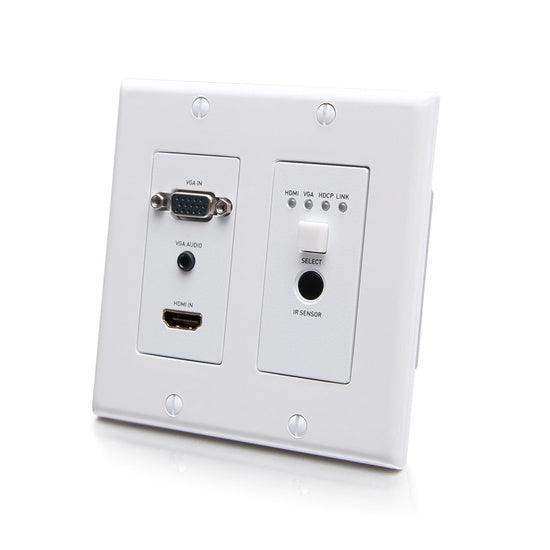

C2G C2G30017 – HDBaseT Dual-Gang Wall Plate HDMI + VGA Transmitter with RS232
C2G C2G30017 – HDBaseT Dual-Gang Wall Plate HDMI + VGA Transmitter with RS232 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
C2G C2G30017 – HDBaseT Dual-Gang Wall Plate HDMI + VGA Transmitter ...
Product Overview
The C2G C2G30017 HDBaseT Dual-Gang Wall Plate Transmitter extends 4K 60Hz HDMI and VGA with 3.5mm audio, RS232, and IR control from a dual-gang wall plate over Cat cable to a compatible C2G HDBaseT receiver. Supporting HDMI and VGA inputs at the presenter connection point, this transmitter covers both modern HDMI and legacy VGA laptop sources at the wall plate. A built-in VGA scaler normalizes VGA resolution for consistent output. Transmitter only — compatible C2G HDBaseT receiver required.
Key Features
- Dual HDMI + VGA Inputs — Accommodates both source types at a single dual-gang wall plate.
- 4K 60Hz via Cat6a — Up to 130ft at 4K over Cat6a; VGA/1080p to 230ft over Cat5e/6.
- Built-In VGA Scaler — Normalizes VGA for consistent display output.
- RS232 and IR Pass-Through.
Technical Specifications
| Form Factor | Dual-gang wall plate (TX only) |
| Inputs | HDMI, VGA + 3.5mm audio |
| Max Distance 4K | 130ft over Cat6a |
| RS232/IR | Yes |
| SKU | C2G30017 |
