C2G C2G30016 – HDBaseT HDMI Scaling Box Receiver with RS232 and IR
Product Overview

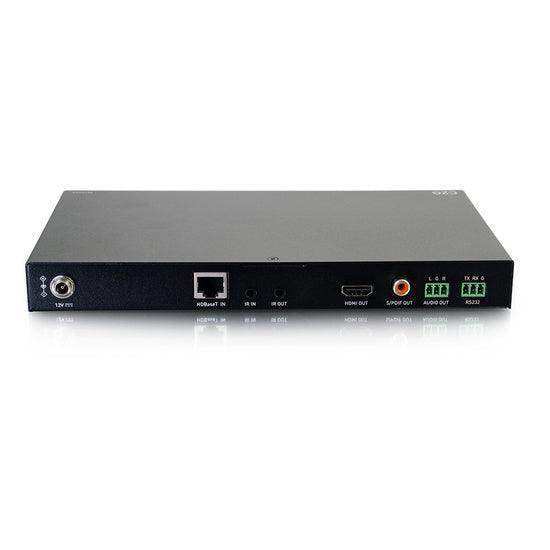

The C2G C2G30016 HDBaseT HDMI RS232 IR Scaling Box Receiver is the display-end component for HDBaseT extension systems, accepting HDMI signal over Cat6a from a compatible HDBaseT transmitter and outputting scaled HDMI to the display with RS232 and IR control pass-through. Supporting 4K 60Hz (4:4:4) at up to 130ft over Cat6a and 1080p at up to 230ft over Cat5e/6, this receiver integrates a built-in scaler to normalize source resolution differences at the display, ensuring consistent output regardless of the source device. Designed for conference rooms, classrooms, and training rooms.
Product Description
The C2G30016 receives the HDBaseT signal from a compatible C2G wall plate or box transmitter and outputs HDMI to the connected display. The integrated scaler up-converts incoming video to match the display's native resolution, eliminating black bars or resolution mismatches when switching between sources of different resolutions. RS232 and IR pass-through ports allow bidirectional control signal routing from a room control system to the display.
The receiver is HDCP 2.2 compliant for protected 4K content and NDAA Section 889 compliant for government and federally funded education projects. It carries a 5-year C2G warranty. This receiver pairs with compatible C2G HDBaseT transmitters — contact Creation Networks to confirm transmitter compatibility for your specific installation.
Key Features
- Built-In Scaler — Up-converts incoming video to the display's native resolution, normalizing output across mixed-resolution source environments.
- 4K 60Hz (4:4:4) at 130ft over Cat6a — Full 18Gbps HDMI 2.0 at up to 130ft; 1080p at up to 230ft over Cat5e/6.
- RS232 and IR Control Pass-Through — Passes bidirectional serial and IR control signals for room automation and display management.
- HDCP 2.2 Support — Compatible with protected 4K content from secure corporate and media sources.
- NDAA 889 Compliant — Meets federal procurement requirements for government and education AV installations.

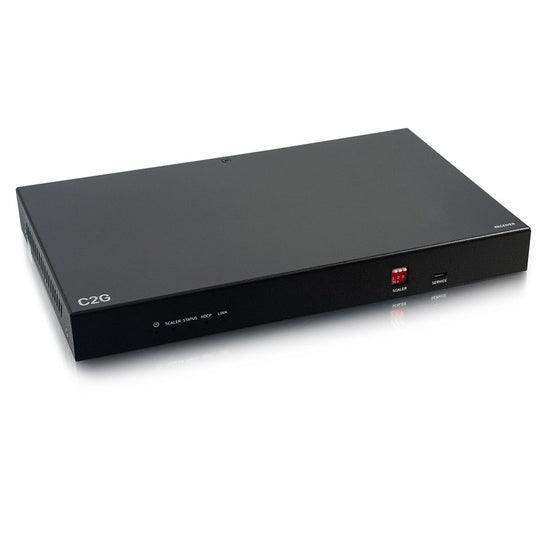

- Box Receiver Form Factor — Compact enclosure for mounting near or behind the display.
- 5-Year Warranty — Backed by C2G's commercial product warranty.
Typical Applications
- Conference room HDBaseT receiver with scaler for mixed-resolution sources
- Classroom display receiver with RS232 control integration
- Training room presentation system receiver
- Government meeting room display with control system integration
- Corporate boardroom AV receiver for 4K display systems
Technical Specifications
| Extension Standard | HDBaseT |
| Max Distance — 4K over Cat6a | 130ft (40m) |
| Max Distance — 1080p over Cat5e/6 | 230ft (70m) |
| Video Output | HDMI 2.0, 4K 60Hz (4:4:4), 18Gbps |

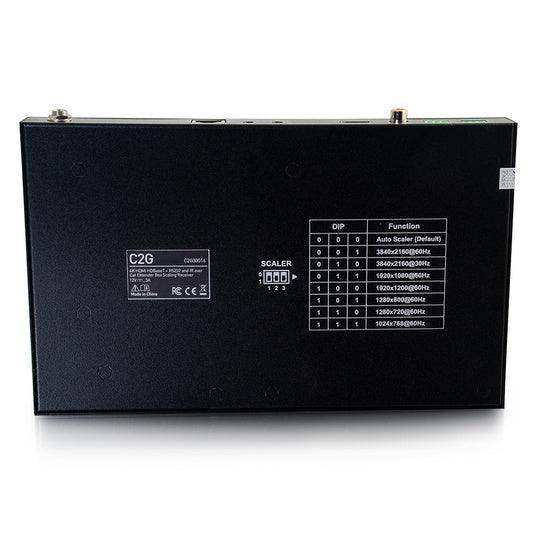

| Built-In Scaler | Yes — up-converts to display native resolution |
| HDCP | HDCP 2.2 |
| RS232 | Yes — bidirectional control pass-through |
| IR | Yes — IR control pass-through |
| Certifications | NDAA 889, REACH, RoHS, TSCA, Prop 65 |
| Warranty | 5 years |
| SKU | C2G30016 |
Frequently Asked Questions
- What transmitter is compatible with the C2G30016?
The C2G30016 pairs with compatible C2G HDBaseT transmitters. Contact Creation Networks at creationnetworks.net to confirm the correct transmitter for your application.
- What does the built-in scaler do?
The scaler up-converts incoming video to match the display's native resolution. This eliminates black bars, overscan, or resolution mismatches when sources of different resolutions are connected — useful in rooms with mixed laptop and media source inputs.
- Does it support USB extension?
USB data extension is supported when paired with a compatible C2G transmitter that includes USB-B to USB-A pass-through. Confirm with the transmitter's specifications.
- Is this NDAA compliant for government projects?
Yes. The C2G30016 is NDAA Section 889 compliant for government and federally funded education facility AV installations.
- What warranty does C2G provide?
5-year commercial warranty. Contact Creation Networks at creationnetworks.net for warranty support.
