C2G C2G30010 – 4K HDBaseT Box to Box HDMI Extender 130ft
Product Overview
The C2G C2G30010 HDBaseT Box-to-Box Extender Kit extends 4K 60Hz HDMI over a single Cat5e, Cat6, or Cat6a cable from a compact box transmitter to a box receiver — up to 130ft at 4K 60Hz over Cat6a, or 230ft at 1080p over Cat5e/6. This HDMI-only box-to-box kit without USB or RS232 is the right choice for rack-to-display installations where video extension is the primary requirement and control or USB are handled by separate systems. HDCP 2.2 and NDAA 889 compliance are included.
Product Description

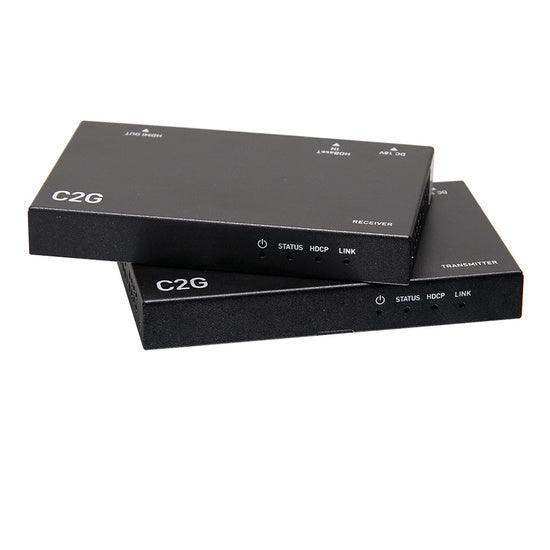

The transmitter accepts HDMI input and sends 4K 60Hz (4:4:4) at full 18Gbps over Cat6a to the receiver. HDCP 2.2 ensures protected content compatibility. Both units are compact box enclosures suited for surface mounting or rack shelf placement near the source and display.
Key Features
- 4K 60Hz at 130ft over Cat6a — Full HDMI 2.0 18Gbps extension in box-to-box format.
- HDCP 2.2 — Protected 4K content compatible.
- NDAA 889 Compliant — Government and education eligible.
- Box-to-Box Form Factor — No wall plate required; surface or shelf mount.
- Single Cat Cable — Cat5e, Cat6, or Cat6a.
Technical Specifications
| Form Factor | Box transmitter to box receiver |
| Max Distance — 4K Cat6a | 130ft (40m) |
| Max Distance — 1080p Cat5e/6 | 230ft (70m) |
| Video | HDMI 2.0, 4K 60Hz (4:4:4), 18Gbps |
| HDCP | HDCP 2.2 |
| Certifications | NDAA 889, REACH, RoHS |
| SKU | C2G30010 |
