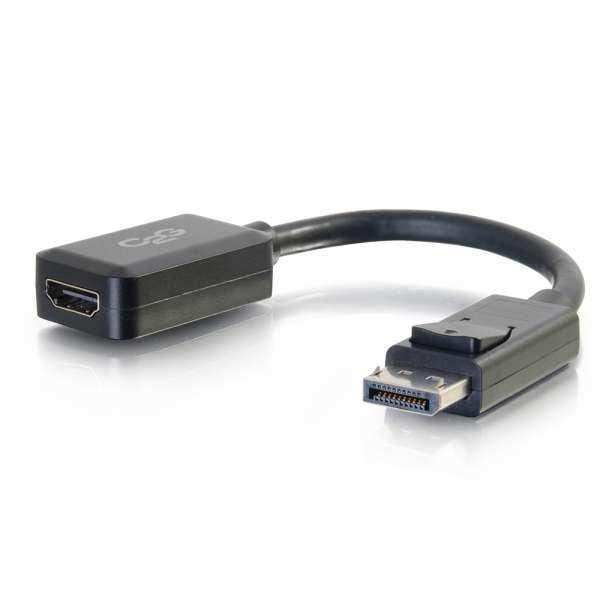

C2G 8in C2G DisplayPort M to HDMI - CG54322
This DisplayPort to HDMI Adapter Converter is an easy and convenient solution for connecting an HDMI monitor to a DisplayPort computer in your home or your office. This adapter converter carries a digital video signal, supports up to a 1080p resolution and meets the requirements of high performance applications.
Avoid frustration by simply plugging the adapter into your computer, then attach to the existing HDMI cable from your monitor or projector. The portable, compact design also makes it easy to carry in a laptop bag when traveling or on the go.
This adapter converter automatically converts the digital DisplayPort signal to HDMI, supporting full HD up to a 1080p resolution.
Features
• Dongle style adapter reduces strain, prolonging the life of the port
• Plug-and-play, so no additional software or drivers needed
• Supports resolutions up to 1080p, for viewing your screen content at full HD
Specs
| UPC : | 757120543220 |
|---|---|
| Warranty : | 3 Years |
| Vendor : | C2G |
| Weight : | 0.083 LB |
Electrical Specifications:
•Voltage Rating: 30v
•Conductor Resistance: @ 20°C max
•Insulation Resistance: 10MΩ/km
•Time Delay: 5.2ns/m (max)
•Attenuation:
5.02dB@100-450MHz 7.69dB@1GHz
12.595dB@2GHz 17.495dB@3GHz
22.395dB@4GHz 27.295dB@5GHz
32.195dB@6GHz 37.095dB@7GHz
Physical Specifications:
•Operating Temperature: 0°C to 50°C
•Storage Temperature: -25°C to 70°C
•Approvals: CE
Conductor (2 Conductors, 5 Pair):
•Conductor: 30AWG (7/0.1TC)
•Insulation: FM-PE, ID:0.8±0.05mm
•Color: White/Brown, White/Red,
White/Orange, White/Green
White/Blue
•Drain: 30AWG (7/0.1TC)
HD-PE ID:0.56±0.05
•Shield: AL-Mylar Wrap
Coverage—100%
Conductor (5 Conductors):
•Conductor: 30AWG (7/0.1TC)
•Insulation: HD-PE, ID:0.56±0.05mm
•Color: Red/Orange/Yellow/Green/ White
Overall Cable:
•Jacket: PVC
•Shield: AL-Mylar—Coverage 100%
Braid—16/9/0.12
•Drain: 2:30AWG (7/0.10 BC)
•OD: 6.5±0.2
