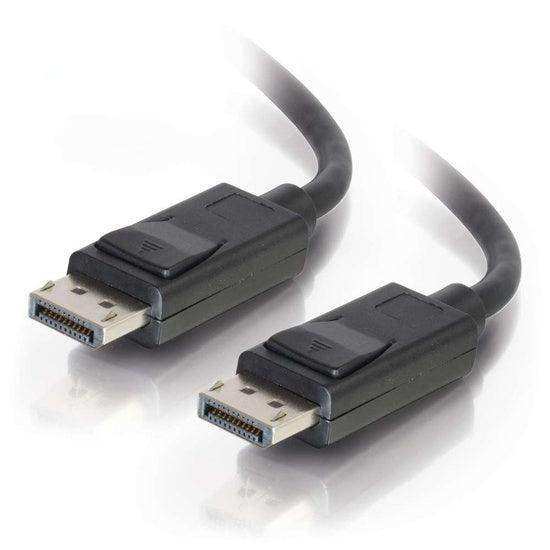

C2G 6ft DisplayPort™ Cable with Latches 8K UHD M/M - Black- CG54401
Roll over image to zoom in Click on image to zoom
C2G 6ft DisplayPort™ Cable with Latches 8K UHD M/M - Black- CG54401
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

C2G 6ft DisplayPort™ Cable with Latches 8K UHD M/M - Black- CG54401

C2G SKU: CG54401
No reviews
Price:
$24.99

Description

These DisplayPort™ Cables with Latches are an ideal solution for connecting the DisplayPort output of a computer  to a computer monitor which accepts a DisplayPort input. This cable carries a digital audio/video signal and the connectors feature latches which secure the cable in the port. Support of a High Bit Rate (HBR) bandwidth means that this cable can carry up to an 8K UHD (7680 x 4320) resolution. This cable meets the requirements of high performance applications.

Features and Benefits

  • Directly connect a DisplayPort output to a DisplayPort input
  • Carries a digital audio/video signal
  • Supports a High Bit Rate (HBR) bandwidth and resolutions up to 8K UHD (7680 x 4320)

Additional Technical Specifications

Electrical Specifications

  • Voltage Rating: 30V
  • Conductor Resistance: @ 20°C max
    • 28AWG: 237.25Ω/km
    • 30AWG: 376.96Ω/km
    • 32AWG: 588.85Ω/km
  • Insulation Resistance: 10M Ω/km min at 20°C DC 500V
  • Time Delay: 5.2ns/m (max)

Physical Specifications

  • Minimum Bend Radius: 73mm
  • Tensile Strength: Unaged: 1500 PSI min Aged: 70%
  • Elongation: Unaged: 100% min, Aged; 65%Approvals: CE
  • Jacket: PVC 0.51mm Min AVG
  • Connectors: DisplayPort 20P male, Solder Type, Contact: Gold Flash Plated; Housing: Black LCP; Shell: Nickel Plated (with Latched)
    • CG54404-5; CG54424-5:
      • 28AWG
      • OD: 7.3±15; 0.287mm
    • CG54403:
      • 30AWG
      • OD: 6.5±15; 0.256mm
    • CG54400-2; CG54423:
      • 32AWG
      • OD: 6.0±15; 0.236mm
    • Product is CE Marked and Conforms to 2011/65/EU ROHS 2
