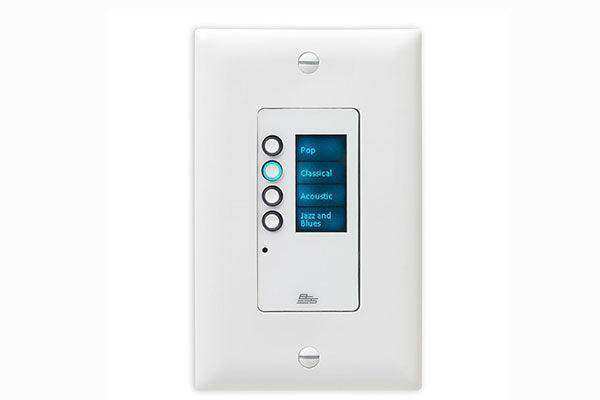

BSS EC-4B-WHT – Soundweb Contrio Ethernet Wall Controller, 4 Buttons (White)

Product Overview

The BSS EC-4B-WHT is a white Soundweb Contrio Ethernet wall controller designed for Harman HiQnet commercial AV systems. This single-gang PoE wall controller integrates directly with BSS Audio Soundweb London processors, Crown DCi series amplifiers, and any HiQnet-compatible device, providing end-users with intuitive hands-on control of audio parameters from a standard wall position. Configured entirely within HiQnet Audio Architect via drag-and-drop, the EC-4B-WHT simplifies commissioning for commercial AV installations of any scale.

Product Description

The BSS EC-4B-WHT is a commercial-grade Ethernet wall controller that brings precise parameter control to any room served by a Soundweb London or HiQnet-based DSP system. The white finish matches standard US Decora single-gang wall plates, making it an ideal choice for bright office environments, conference rooms, corporate lobbies, and educational spaces where white fixtures are the norm. The controller features four programmable buttons and one 64×128 pixel LCD screen — both multi-color backlit with eight selectable colors and adjustable intensity — giving system designers full flexibility over visual feedback and button labeling. Each button can be assigned to binary parameter control such as mute, preset recall, or source selection, enabling straightforward user interfaces without complex programming. Power is delivered via PoE (Power over Ethernet) on a single Cat5e/Cat6 cable that also carries configuration data, control commands, and monitoring traffic — eliminating the need for a local power supply. The EC-4B-WHT connects to any BSS Audio Soundweb London chassis or HiQnet device on the network, including Crown DCi series amplifiers, and can monitor and adjust parameters in real time. A configurable sleep function turns off all LEDs after a defined idle period, useful in dimly lit environments such as auditoriums or house of worship spaces. Security is addressed via remote lock/unlock through external control systems, with local unlock supported via a four-digit PIN entered on the buttons. All configuration is performed in HiQnet Audio Architect using drag-and-drop — no scripting required. The EC-4B-WHT is the white US Decora version; a black variant (EC-4B-BLK) and EU form factor versions are also available through Creation Networks.

Key Features

• Ethernet Wall Controller — Single-gang PoE device for Harman HiQnet commercial AV systems, no local power supply required.
• 4 Programmable Buttons — Each button supports mute control, preset recall, or source selection with multi-color backlit indication (8 colors, adjustable intensity).
• 64×128 Pixel LCD Screen — Multi-color programmable display for custom text labels, status messages, and system feedback.
• Soundweb London Compatible — Controls and monitors parameters within BSS Audio Soundweb London processors and other HiQnet devices including Crown DCi amplifiers.
• PoE Powered — Receives power, configuration, control, and monitoring data over a single Ethernet cable.
• Audio Architect Configuration — Fully configured via drag-and-drop in HiQnet Audio Architect; no custom scripting required.
• Sleep Function — Automatically turns off all LEDs after a configurable idle period, reducing distraction in low-light environments.
• Security Lock — Remote lock/unlock via external control systems; local unlock via four-digit PIN entry on the buttons.
• US Decora Single-Gang Form Factor — White finish fits standard US Decora wall plates for clean, professional installations.
• White Finish — Bright white housing complements light-colored commercial interiors and standard office environments.

Typical Applications

• Boardroom and executive conference room audio control
• Conference room and commercial meeting space DSP control interface
• Multi-purpose room and all-hands room audio system control
• House of worship volume and preset recall
• Training room and auditorium audio parameter control
• Government space and institutional AV control interface

Technical Specifications

Frequently Asked Questions

Q: What DSP processors is the EC-4B-WHT compatible with?

A: The EC-4B-WHT is compatible with BSS Audio Soundweb London processors and any other Harman HiQnet device, including Crown DCi series amplifiers. It communicates over a standard Ethernet network using the HiQnet protocol.

Q: Does the EC-4B-WHT require a separate power supply?

A: No. The EC-4B-WHT is powered via PoE (Power over Ethernet) on the same cable used for control, configuration, and monitoring. A PoE-capable network switch or injector is required at the infrastructure level.

Q: How is the EC-4B-WHT programmed and configured?

A: All configuration is performed within HiQnet Audio Architect using a drag-and-drop interface. No scripting or custom code is required. Button functions, LCD text, LED colors, and sleep settings are all assigned within Audio Architect.

Q: Can the EC-4B-WHT be locked to prevent unauthorized user adjustments?

A: Yes. The controller can be remotely locked and unlocked via external control systems. It can also be unlocked locally by entering a four-digit PIN using the four buttons.

Q: What wall plate format does the EC-4B-WHT use?

A: The EC-4B-WHT uses a single-gang US Decora form factor, compatible with standard Decora wall plates. A US black version (EC-4B-BLK) and EU form factor versions are also available.

Q: What is the difference between the EC-4B-WHT and the EC-4B-BLK?

A: The two models are functionally identical. The EC-4B-WHT has a white housing and the EC-4B-BLK has a black housing. Both use US Decora single-gang form factor and share all features and specifications.

Q: Is the EC-4B-WHT covered by a manufacturer warranty?

A: BSS Audio products are covered by Harman's standard manufacturer warranty. For warranty details and product registration, visit the BSS Audio support page. For purchasing support and assistance, contact Creation Networks.
