BSS BLUCARD-OUT – 4-Channel Analog Output Card for Soundweb London
Product Overview
The BSS BLUCARD-OUT is a four-channel analog line output card for Soundweb London DSP chassis, providing balanced line-level outputs via Phoenix/Combicon connectors. It installs in any of the four I/O card slots on compatible Soundweb London processors, enabling analog audio distribution from the DSP to amplifiers, powered speakers, or other downstream equipment. The BLUCARD-OUT is compatible with BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32, and BLU-16 devices.
Product Description

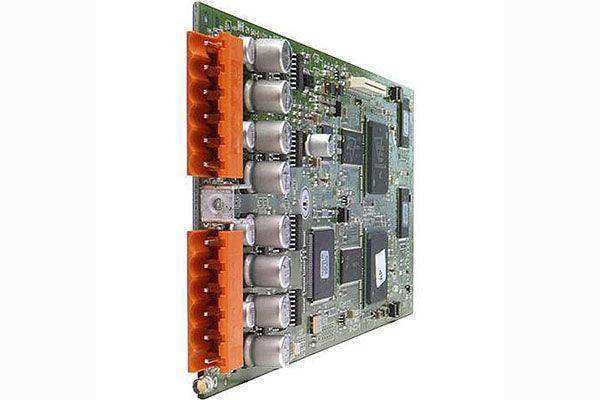

The BSS BLUCARD-OUT Analog Output Card slots into a Soundweb London chassis I/O bay and presents four balanced or unbalanced line-level outputs via two Phoenix/Combicon connectors. Connector 1 carries channels 1 and 2; Connector 2 carries channels 3 and 4. The card is the standard method for routing processed audio from a Soundweb London DSP to analog amplifiers, zone amplifiers, recording equipment, or any downstream analog device. Multiple BLUCARD-OUT cards can populate a single chassis to provide up to 16 analog outputs per device, and slots can be mixed freely with BLUCARD-IN, BLUDIGITAL-IN/OUT, or Telephone Hybrid cards to match the I/O requirements of the installation. Configuration is managed through HiQnet London Architect software. The card is compatible with all major Soundweb London chassis: BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32, and BLU-16. For installations requiring analog input capability, the complementary BSS BLUCARD-IN Analog Input Card is also available from Creation Networks.
Key Features
- 4 Balanced Line Outputs — Provides four balanced or unbalanced line-level outputs for connection to amplifiers, powered speakers, and analog equipment.
- Phoenix/Combicon Connectors — Two removable screw-terminal Combicon connectors provide field-replaceable, secure wiring connections.
- Card Slot Installation — Occupies one of four I/O card slots in the host chassis; multiple cards can be installed for increased output count.
- Wide Chassis Compatibility — Works in BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32, and BLU-16.
- Balanced and Unbalanced Output Support — Combicon connectors accommodate both balanced and unbalanced downstream connections.
- Mixed Card Slot Configuration — Slots can be populated with any combination of analog input, analog output, digital I/O, and telephone hybrid cards.
- HiQnet London Architect Configuration — All routing and output parameters managed in software; no hardware adjustments required post-installation.
Typical Applications
- Conference room DSP analog output to amplifiers
- Boardroom zone amplifier line-level feeds
- Commercial meeting space speaker distribution
- Auditorium and all-hands room DSP output routing
- House of worship amplifier feed from DSP
- Multi-purpose room zone audio distribution
- Broadcast studio analog output from DSP
- Training room amplifier or powered speaker drive
Technical Specifications
| Specification | Value |
| Analog Outputs | 4 line |
| Output Type | Balanced / Unbalanced |
| Connectors | 2 x Phoenix/Combicon (2 channels each) |
| Compatible Chassis | BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32, BLU-16 |
| Card Slots Used | 1 of 4 available I/O card slots |
| Configuration | HiQnet London Architect software |
Frequently Asked Questions
Q: How many BLUCARD-OUT cards can be installed in one chassis?
A: Up to four cards can occupy the I/O slots of a compatible chassis, providing up to 16 analog outputs per device. Slots can be mixed with BLUCARD-IN, BLUDIGITAL-IN/OUT, and Telephone Hybrid cards as required.
Q: What connector type does the BLUCARD-OUT use?
A: The card uses two Phoenix/Combicon removable screw-terminal connectors (MSTB 2.5/6-ST-5.08 or equivalent), each carrying two channels. Mating connectors are supplied with the Soundweb London chassis.
Q: Is this card compatible with the BLU-16?
A: Yes. The BLUCARD-OUT is compatible with the BLU-16 as well as all other major Soundweb London chassis including BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, and BLU-32.
Q: Can I use BLUCARD-OUT with both balanced and unbalanced amplifiers?
A: Yes. The Combicon connectors support both balanced and unbalanced wiring configurations. Refer to the Soundweb London install guide for wiring pin assignments for each mode.
Q: Does the BLUCARD-OUT have any software-controlled output level adjustment?
A: Output level management for analog outputs is handled within the Soundweb London DSP signal processing design in HiQnet London Architect. Gain, mute, and routing for each output are configured as DSP objects, not as hardware controls on the card itself.
Q: Is the BLUCARD-OUT available from Creation Networks?
A: Yes. The BSS BLUCARD-OUT (SKU: BSSBLUCARDOUT-M) is available at creationnetworks.net. Contact us for project pricing or system design support.
