BSS BLUCARD-IN – 4-Channel Analog Input Card for Soundweb London
Product Overview
The BSS BLUCARD-IN is a four-channel analog input card for Soundweb London DSP chassis, providing balanced mic/line inputs with per-channel phantom power and software-controlled gain. It installs in any of the four I/O card slots on compatible Soundweb London processors, adding analog microphone and line-level inputs directly to the DSP without external preamp hardware. The BLUCARD-IN is compatible with BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32, and BLU-16 devices.
Product Description

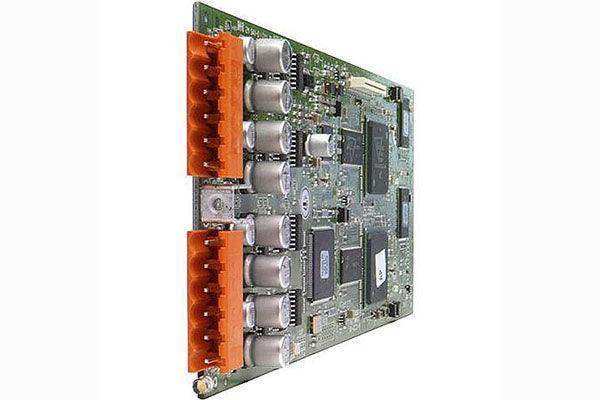

The BSS BLUCARD-IN Analog Input Card slots into a Soundweb London chassis I/O bay and presents four balanced or unbalanced mic/line inputs via two Phoenix/Combicon connectors. Each connector handles two channels (channels 1–2 on Connector 1, channels 3–4 on Connector 2), and each channel supports per-channel selectable 48V phantom power for condenser microphones. Software-controlled analog gain from 0dB to 48dB in 6dB steps is configured through HiQnet London Architect, keeping all gain staging within the DSP design environment. The BLUCARD-IN is the standard method for adding microphone inputs to Soundweb London processors in commercial conferencing, installed sound, and broadcast applications. Multiple cards can populate the available slots of a single chassis to provide up to 16 analog inputs per device (combined with other card types as needed). The card is compatible with all major Soundweb London chassis variants, including BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32, and BLU-16. Complementary output capability is available with the BSS BLUCARD-OUT Analog Output Card.
Key Features
- 4 Balanced Mic/Line Inputs — Accepts balanced or unbalanced mic and line-level signals for flexible source connectivity.
- Per-Channel 48V Phantom Power — Independently selectable phantom power per channel supports condenser microphones without affecting dry channels.
- Software-Controlled Gain — Analog gain from 0dB to 48dB in 6dB steps, configured in HiQnet London Architect for system-level gain management.
- Phoenix/Combicon Connectors — Two removable screw-terminal Combicon connectors provide secure, field-replaceable wiring connections.
- Card Slot Installation — Occupies one of four I/O card slots in the host chassis; multiple cards can be installed for expanded input counts.
- Wide Chassis Compatibility — Works in BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32, and BLU-16.
- Balanced and Unbalanced Signal Support — Compatible with both balanced (XLR/TRS) and unbalanced sources via Combicon wiring.
- HiQnet London Architect Configuration — All input parameters managed in software; no hardware adjustments required post-installation.
Typical Applications
- Conference room microphone input expansion
- Boardroom DSP analog input integration
- Commercial meeting space mic/line sources
- Auditorium and all-hands room microphone inputs
- House of worship installed sound input cards
- Broadcast studio analog input to DSP
- Training room microphone infrastructure
Technical Specifications
| Specification | Value |
| Analog Inputs | 4 mic/line |
| Input Type | Balanced / Unbalanced |
| Phantom Power | 48V, configurable per channel |
| Analog Gain | 0dB to 48dB in 6dB steps (software controlled) |
| Connectors | 2 x Phoenix/Combicon (2 channels each) |
| Compatible Chassis | BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32, BLU-16 |
| Card Slots Used | 1 of 4 available I/O card slots |
| Configuration | HiQnet London Architect software |
Frequently Asked Questions
Q: How many BLUCARD-IN cards can be installed in one chassis?
A: Up to four cards can occupy the I/O slots of a compatible chassis, providing up to 16 analog inputs in a single device. Slots can also be mixed with BLUCARD-OUT, BLUDIGITAL-IN/OUT, or Telephone Hybrid cards depending on system requirements.
Q: Does every channel need to have phantom power enabled?
A: No. Phantom power is selectable per channel in HiQnet London Architect. Channels connected to dynamic microphones or line-level sources should have phantom power disabled to avoid potential equipment damage.
Q: What connector type does the BLUCARD-IN use?
A: The card uses two Phoenix/Combicon removable screw-terminal connectors (MSTB 2.5/6-ST-5.08 or equivalent), with two channels per connector. Mating connectors are supplied with the Soundweb London chassis.
Q: Is this card compatible with the BLU-16?
A: Yes. The BLUCARD-IN is compatible with the BLU-16 as well as all other major Soundweb London chassis including BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, and BLU-32.
Q: Can BLUCARD-IN and BLUCARD-OUT cards coexist in the same chassis?
A: Yes. The I/O card slots are independent, and any combination of analog input, analog output, digital input, digital output, and telephone hybrid cards can be mixed within the four slots of a single chassis.
Q: Is the BLUCARD-IN available from Creation Networks?
A: Yes. The BSS BLUCARD-IN (SKU: BSSBLUCARDIN-M) is available at creationnetworks.net. Contact us for project pricing or system design support.
