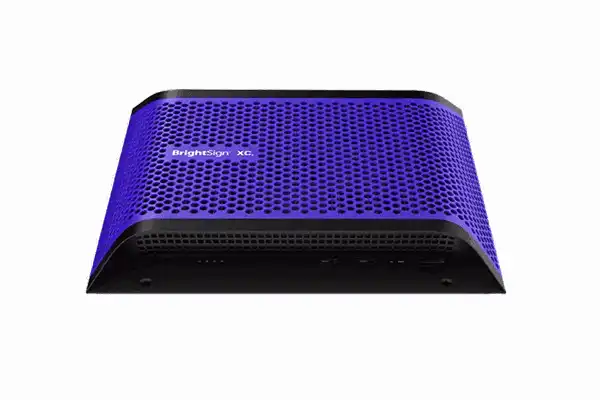

BrightSign XC4055 | 8K Expanded I/O HTML5 Player

Save 12%
BrightSign SKU: XC4055
No reviews

Sale price$1,500.00 Regular price$1,700.00


Quad Output 8K Digital Signage Media Player

The Brightsign XC4055 has 4 HDMI outputs, professional HTML performance, and 8K output. With Brightsign's solid-state platform, BrightSign XC5 models are reliable and have the capability to power up to 4 screens at once from a single player. The multi-output players and the hardware 4K video rotation is created for easy video wall usage. The HTML content supports 3D graphics, Web GL, JavaScript, and interactivity in 8K.

BrightSign XC4055 Features:

  • PC class HTML performance
  • 4 HDMI outputs
  • Industrial design
  • Real time clock with 14 days uninterrupted operation
  • Plays 8K video graphics 8K60p with 8-bit color
  • Powered by BrightSign OS

BrightSign XC4055 Specifications:

  • Video Engine Decoder:
    • Single 8K @ 60p video decoding: X (10-bit)
    • 4K @ 60p video decoding: Quad (10-bit)
    • HDR10, HLG & Rec.2020/BT.2020 Support: Yes
    • 4K video rotation: Yes
    • 8K Full Resolution Graphics: Yes
    • HTML5 Performance: Elite PC class power, 2x the power of XC2055
    • HTML: Full OpenGL Support: Yes
  • Media Formats:
    • 8K video codecs: H.265
    • 8K Video Containers: .ts, .mov, .mp4, .mkv
    • 4K Video codes: H.265, H.264
    • 4K Video Containers: .ts, .mov, .mp4, .mkv
    • Full HD Video Codecs: H.265, H.264 (MPEG-4, Part
    • Full HD Video Containers: .ts, .mpg, .vob, .mov,
    • Images: BMP, JPEG, PNG up to 8K resolution
    • Audio: MP2, MP3, AAC and WAV (AC3 is passed
  • Display Resolution:
    • Supports all common screen resolutions up to 8K (7680x4320 @60fps)
    • Supports customizable display resolutions with unique aspect ratios

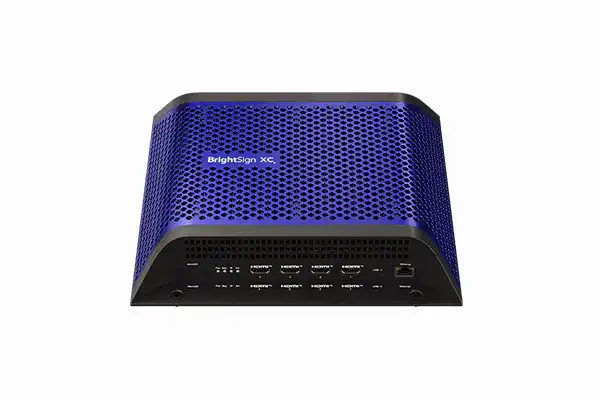

  • Hardware Interfaces:
    • HDMI Outputs: 2
    • HDMI 1 Out: X (HDMI 2.1a)
    • HDMI 2 Out: X (HDMI 2.0a)
    • HDMI 3 Out: X (HDMI 2.0a)
    • HDMI 4 Out: X (HDMI 2.0a)
    • USB Type C port: supports high-speed host mode & provides 5V/1A power to peripheral devices: 1
    • USB Type A port: provides 5V/1A power to peripheral devices: 1
    • 12-pin Phoenix GPIO port with 8 bi-directional GPIOs: Yes
    • 3.5mm RS-232 Serial Port: Yes
    • 3.5mm IR In/Out: Yes
    • 3.5mm Audio Out (analog & SPDIF digital): Yes
    • Gigabit Ethernet: Yes
    • External micro SD Slot for primary storage: Yes
    • M.2 PCIe for optional NVMe SSD storage: Yes
    • E Key M.2 for optional dual antenna Wi-Fi/Bluetooth module: Yes
    • 4 Status LEDs in two locations: Yes
    • Reset and Service Buttons: Yes
    • Real Time Clock with 14 days of life: Yes
    • Locking Power Connector: Yes
  • Software & Services:
    • Free BrightAuthor:connected Software: Yes
    • Yes
  • Accessories:
    • BP200 & BP900 USB Button Pads: Yes
    • WD-105 Dual Antenna Wireless/Bluetooth Module: Yes
    • MicroSD Class 10 Cards (various capacities): Yes
    • 256GB PCIe NVMe M.2 SSD: Yes
  • General:
    • 19V / 4.7A Power Supply: Yes
    • Dimensions (WxDxH): 253.2 x 232.12 x 48mm
    • Multi-Country Power & Regulatory Approvals: Yes
    • Built-in Wall Mounting: Yes
    • Warranty: 1 year parts and labor
