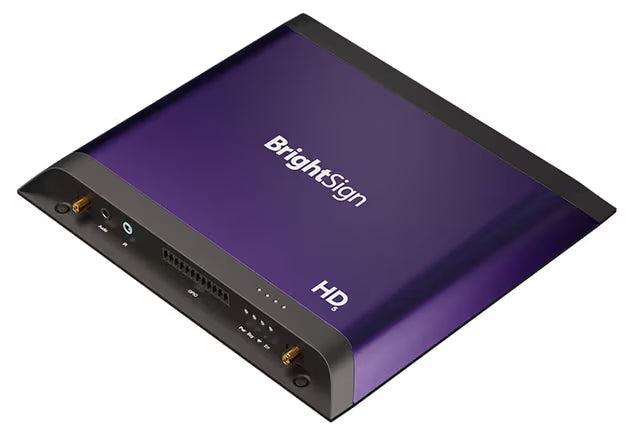

BrightSign HD1026 | 4K HDR Digital Signage Media Player — Series 6, Expanded I/O, AI-Ready (NPU)
BrightSign HD1026 | 4K HDR Digital Signage Media Player — Series 6, Expanded I/O, AI-Ready (NPU) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
BrightSign HD1026 | 4K HDR Digital Signage Media Player — Series 6,...
BrightSign HD1026 — Expanded-I/O 4K Signage for Interactive Deployments
The BrightSign HD1026 (Series 6) transforms displays into eye-catching, premium interactive experiences with diverse engagement capabilities, ultra-high-definition video playback, and impressive HTML performance — a practical PC replacement powered by BrightSign's purpose-built, self-healing BrightSignOS™. Its Expanded I/O package adds USB and serial connectivity for touchscreens and external device control.
Key Features
- Smooth 4K 60Hz video and vibrant 10-bit HDR, plus dual Full HD at 60p decoding
- AI-ready integrated Neural Processing Unit (NPU) — run AI applications without compromising video or graphics
- Expanded I/O: USB-A and serial ports for touchscreens, button pads, and external device control
- Interactive 2D motion graphics; HD HTML5 (CSS, JavaScript, Chromium-compatible) and 4K IP streaming
- Secure internal microSD for dependable operation; optional LTE modem for any location
- Built-in wall mounting, multi-country approvals, and free bsn.Control remote management
- Included 5-year warranty (parts & labor)
The BrightSign Advantage
- Impactful and smooth animations and dynamic visuals effortlessly and reliably, without a PC
- Craft engaging experiences by immersing all the senses and enable interactive storytelling
- Capture user behavior data to deliver personalized experiences
- Seamless integrations with trusted analytics and monetization tools
- Ensure dependable operations with a secure internal microSD, or in any location with an optional LTE modem
- Unparalleled reliability, security, and sustainability on BrightSignOS™
- Reduce total cost of ownership with complimentary remote player management and controls
- Achieve CMS choice flexibility with a trusted global network of leading integrated partner solutions
- Leverage an integrated Neural Processing Unit (NPU) which enables BrightSign players to run powerful AI applications without compromising on video or graphics performance
Typical Applications

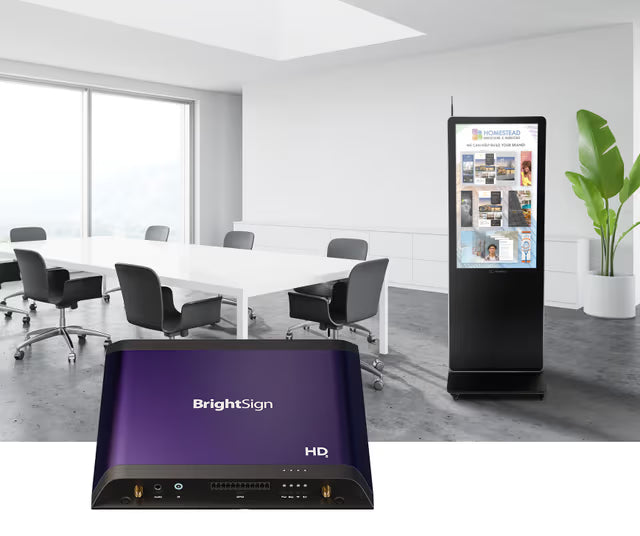

- Conference, huddle & meeting rooms — room-status boards, schedules, and welcome screens that complement video-conferencing platforms including Zoom Rooms, Microsoft Teams Rooms, Google Meet, and Cisco Webex.
- Interactive kiosks & touch displays — wayfinding, product finders, and self-service experiences using USB touch and button pads.
- Retail & QSR — promotional displays, digital menu boards, and point-of-purchase signage.
- Corporate lobbies & campuses — wayfinding, live dashboards, and internal communications.
- Transportation, museums & healthcare — informational and interactive public-space signage.

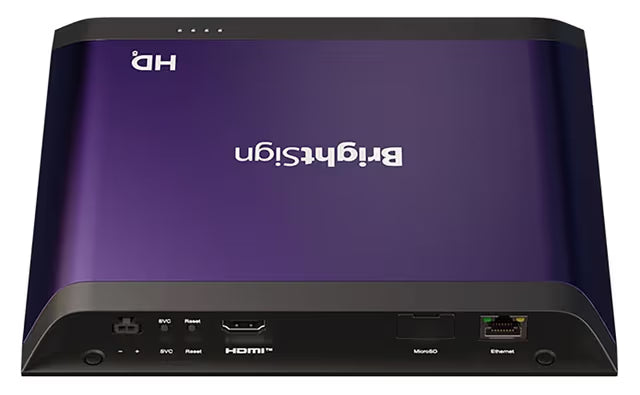

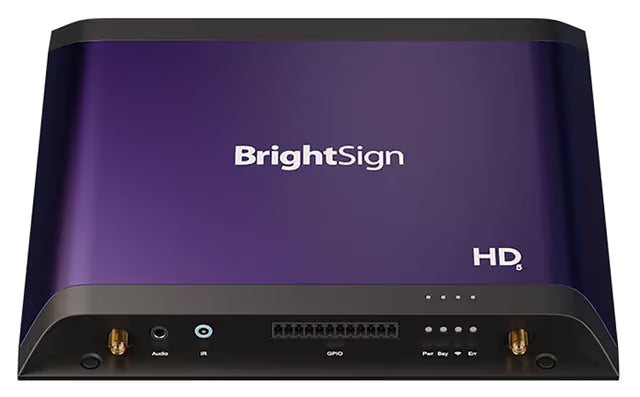

Ports & Connectivity (HD1026 — Expanded I/O)
- HDMI 2.0a video output
- Gigabit Ethernet plus 10/100 Ethernet port
- USB Type-A (5V/1A) for touch & peripherals; Serial (3.5mm) for device control
- Audio (3.5mm) — analog & SPDIF digital; IR (3.5mm); bi-directional GPIO (12-pin Phoenix)
- Internal microSD socket and M.2 E-Key Wi-Fi/Bluetooth slot
- Locking power supply (12V/3A); real-time clock (14-day life)
Technical Specifications
| Spec | HD1026 |
| Series / I/O package | Series 6 / Expanded |
| NPU (AI-ready) | Yes |
| 4K video decoding | Single 10-bit at 60p |
| Full HD video decoding | Dual at 60p |
| HDR support | 10-bit |
| 4K video codecs | H.265/HEVC, H.264/AVC, VP9 (H.265, H.264 at 60p) |
| HTML5 performance | Interactive 2D motion graphics (HTML5, CSS, JS, Chromium — HD) |
| Display resolutions | All common resolutions up to 4K; customizable aspect ratios |
| Images / Audio | BMP, JPEG, PNG / MP2, MP3, AAC, WAV |
| Operating temperature | 0°C to 50°C |
| Dimensions (W × D × H) | 205 × 185.9 × 19.2 mm |
| Weight | 0.59 kg (1.3 kg shipping) |
| Power supply | 12V / 3A locking |
| Mounting / Approvals | Built-in wall mounting; multi-country regulatory |
| Warranty | 5-year, parts & labor |
HD226 vs HD1026 — Which Should You Choose?
Both Series 6 players share the same 4K engine, AI-ready NPU, 10-bit HDR, and 5-year warranty. The difference is the I/O package and peripheral support.
| Feature | HD226 | HD1026 (this player) |
| I/O package | Standard | Expanded |
| HTML5 performance | Modular 2D motion graphics | Interactive 2D motion graphics |
| USB Type-A port (5V/1A, touch & peripherals) | — | Yes |
| Serial port (3.5mm) | — | Yes |
| BP200 / BP900 USB button pads | — | Yes |
| BrightSign Mobile USB modem & service | — | Yes |
| NPU · 4K 10-bit HDR · 4K IP streaming · 5-yr warranty | Yes | Yes |
| Best for | Standard interactive & premium playback signage | Touch- and peripheral-rich interactive deployments |
Built on BrightSignOS™ — The Power of Purple
BrightSignOS™ is the only purpose-built signage operating system: secure (runs a single signed signage application), reliable (persistent self-healing protocols and remote management), superior (optimized video and motion graphics), and sustainable (low power, long life-cycle support, free updates) — lowering total cost of ownership over the life of your deployment.
Why Buy from Creation Networks
As an authorized BrightSign reseller with in-house AV expertise, we help you spec the right player, accessories, and software for your deployment. Pricing is subject to change — contact us for volume and project quotes.
Frequently Asked Questions
Is this a genuine BrightSign product?
Yes. Creation Networks is an authorized BrightSign reseller — every player is genuine and backed by BrightSign's manufacturer warranty.
What warranty is included?
The HD1026 includes BrightSign's 5-year parts & labor warranty when registered (Series 5 and newer, purchased after January 1, 2025).
Do I need a paid subscription?
No. bsn.Control remote device management is free with every BrightSign player. Paid bsn.Content and partner CMS options are available if you need cloud content management.
What's the difference between the HD1026 and HD226?
Both share the same Series 6 4K engine and AI-ready NPU. The HD1026 has an Expanded I/O package — adding a USB-A port, serial port, USB button-pad support, and USB modem support for touch- and peripheral-heavy deployments — while the HD226 is the Standard I/O model.
Can you help me choose the right player or get volume pricing?
Yes — our in-house AV team helps you spec the right player, accessories, and software, and we offer project and volume quotes. Contact us.
