Bose Videobar Display Mounting Kit – VB1 & VB-S Screen Mount (Black)

Product Overview

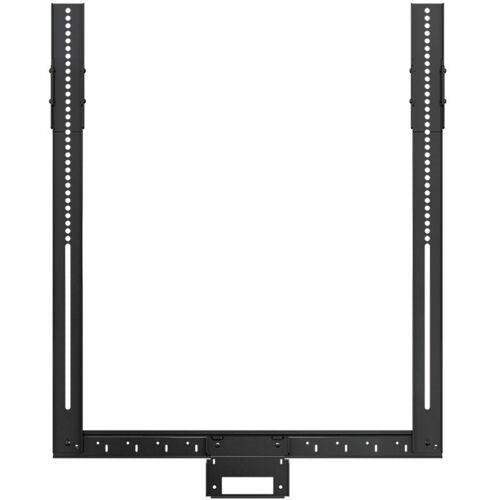

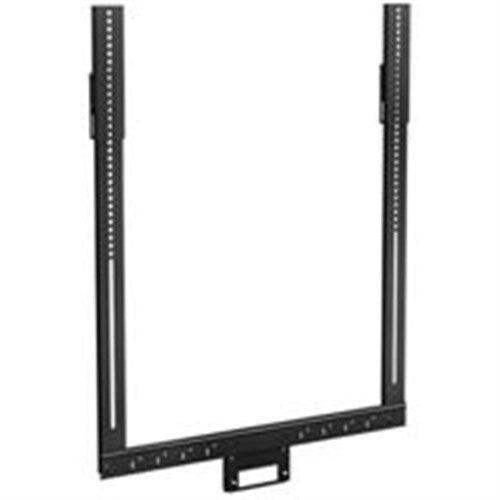

The Bose Videobar Display Mounting Kit (SKU 869196-0010) mounts a Bose Videobar VB1 or VB-S directly above or below a display screen, creating a clean, integrated conference room appearance. It works with screens from 107 cm to 215 cm (42 to 85 inches) and installs between the display's existing VESA wall-mount bracket and the display panel itself. The kit is the recommended mounting solution for AV integrators deploying the Bose Videobar in huddle rooms, conference rooms, and collaboration spaces where cable management and a unified display-bar profile are priorities.

Product Description

Mounting a videobar directly to the display eliminates the separate shelf or rack typically required for a standalone conferencing device. This kit achieves that by attaching to the rear of the display using the screen's own VESA mounting holes, with the bracket acting as a pass-through between the wall mount and the display. The result is a low-profile, wall-mounted videobar that travels with the display and maintains proper camera height for eye-level video conferencing.

The bracket supports a 5-degree upward tilt and 20-degree downward tilt, allowing the camera angle to be adjusted after installation to account for display height or room seating geometry. Extension brackets are included in the kit to accommodate varying VESA hole spacing patterns and to extend vertical positioning range for oversized displays. Two mounting orientation options are provided to align the Videobar VB1 or VB-S flush with the front face of the display screen.

The kit ships in black to match the Bose Videobar VB1 and VB-S finish. Note that the wall-mount bracket for the display itself is not included; this kit is designed to work in conjunction with a separately purchased display wall mount. Compatible with both the Bose Videobar VB1 and Videobar VB-S conferencing devices.

Key Features

• Display-Attached Mounting — Installs between the display VESA wall-mount bracket and the screen; no separate shelf or furniture required.
• Wide Screen Compatibility — Works with displays from 107 to 215 cm (42 to 85 inches) diagonal.
• Tilt Adjustment — Supports 5-degree upward and 20-degree downward tilt for optimal camera angle.
• Extension Brackets Included — Accommodates varying VESA hole spacing and extends vertical positioning for large displays.
• Dual Alignment Options — Two mounting positions to align the Videobar flush with the display front face.
• Compatible Devices — Designed for Bose Videobar VB1 and Videobar VB-S.
• Clean Conference Room Profile — Eliminates shelf clutter; creates an all-in-one display and conferencing appearance.
• Color — Black finish matches Bose Videobar hardware.

Technical Specifications

For conference room AV design and integration support, contact Creation Networks.
