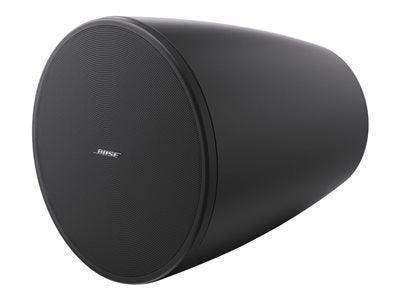

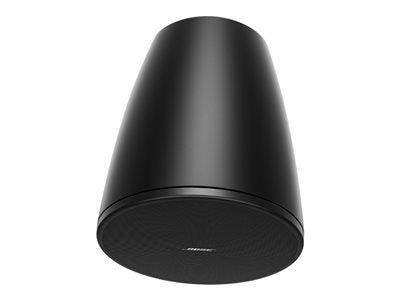

Bose Professional DesignMax DM6PE – 125W 6.5" Pendant Loudspeaker, IP55 (Pair, Black)
Bose Professional DesignMax DM6PE – 125W 6.5" Pendant Loudspeaker, IP55 (Pair, Black) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Bose Professional DesignMax DM6PE – 125W 6.5" Pendant Loudspea...
Product Overview
The Bose Professional DesignMax DM6PE is a 125-watt coaxial pendant loudspeaker designed for commercial sound installations where both audio performance and architectural aesthetics are priorities. The DM6PE delivers a frequency range of 62–20,000 Hz through a 6.5-inch woofer and 1.25-inch neodymium dome tweeter arranged in a Dispersion Alignment coaxial configuration, ensuring consistent coverage at 115° conical dispersion from 1 to 10 kHz. With IP55 outdoor ingress protection and a powder-coated steel grille, the DM6PE is equally suited to indoor commercial venues and covered exterior applications. This listing covers one pair of black-finish DM6PE loudspeakers (SKU 841168-0110), compatible with standard 70V and 100V distributed audio systems as well as direct 8-ohm operation.
Product Description
The DesignMax DM6PE occupies a well-defined position in Bose Professional's 16-model DesignMax commercial loudspeaker line: it is the outdoor-rated pendant option for installations requiring a 6.5-inch coaxial driver, pendant suspension mounting, and weatherproof construction. The coaxial two-way design places the 1.25-inch neodymium dome tweeter within the Dispersion Alignment system at the center of the 165mm woofer cone, matching the acoustic pattern of the woofer to that of the tweeter across the operating bandwidth. This produces consistent timbre and intelligibility at any listening position within the coverage zone without requiring DSP or equalizer compensation at the amplifier.

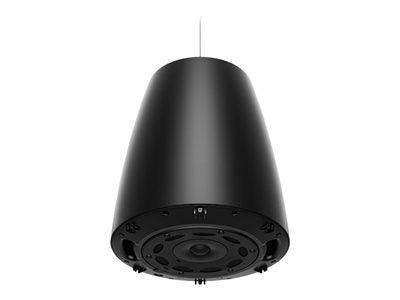

The DM6PE uses a recessed single-point suspension system that keeps the mounting hardware concealed above the ceiling plane or mounting structure. Each loudspeaker includes a 4.5-meter (15-foot) adjustable suspension cable, allowing precise drop height adjustment during installation. The Euroblock 6-pin connector with loop-through, positioned at the top of the enclosure, accommodates 14 to 18 AWG wire and includes a weather-resistant input cover. The enclosure is constructed from highly UV fade-resistant engineered plastics, and the powder-coated perforated steel grille is paintable for custom color matching.
When connected to a compatible Bose Professional DSP or amplifier (such as the PowerShare, PowerSpace+, or ControlSpace EX-series), optional Bose Professional loudspeaker EQ voicing and SmartBass processing can be enabled. SmartBass dynamically adjusts low-frequency output at any listening level, extending perceived bass performance. Without these processors, the DM6PE performs well with any standard commercial amplifier—the passive 2-way crossover at 1.7 kHz handles signal splitting internally with no external DSP required.

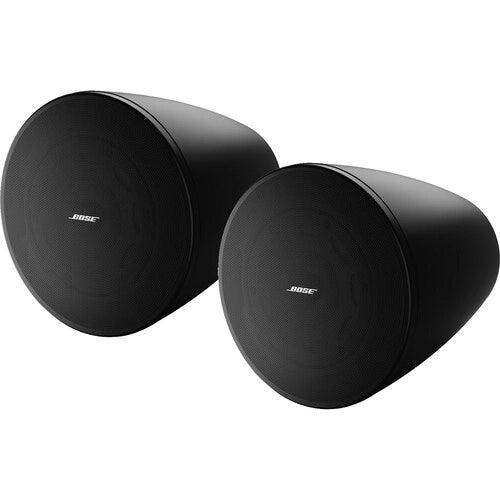

This pair listing includes two DM6PE loudspeakers, two adjustable suspension cable systems, eight cable ties, and two weather-resistant input covers.
Key Features
- Coaxial Two-Way Design — 6.5-inch woofer and 1.25-inch neodymium dome tweeter share a common acoustic axis via the Dispersion Alignment system, ensuring consistent frequency response across the 115° conical coverage pattern.
- IP55 Weather Rating — Rated for outdoor use per IEC 529 IP55; suitable for covered exterior locations, covered patios, and wet commercial environments.
- 125W Power Handling (AES) — Handles 125W long-term continuous per AES standard test; 500W peak. Extended lifecycle test rating: 100W continuous / 400W peak.
- 70V and 100V Distributed Audio — Transformer taps available: 70V (2.5, 5, 10, 20, 40, 80W, bypass) and 100V (5, 10, 20, 40, 80W, bypass) for integration into commercial distributed systems.
- Recessed Single-Point Suspension — Mounting hardware is hidden above the enclosure for a clean pendant appearance; 4.5m (15 ft) adjustable suspension cable included per loudspeaker.
- Passive 2-Way Crossover at 1.7 kHz — Internal crossover eliminates external processing requirements; optional DSP processing available with compatible Bose Professional equipment.
- Euroblock Wiring — 6-pin Euroblock connector with loop-through accepts 14–18 AWG wire; includes weather-resistant input cover.
- Paintable Enclosure and Grille — UV fade-resistant engineering plastic enclosure and perforated steel grille accept paint for custom color matching. Available in black (RAL 9005) or white (RAL 9003).
- SmartBass and Loudspeaker EQ Ready — When paired with compatible Bose Professional DSPs and amplifiers, enables Bose Professional EQ voicing and SmartBass processing for enhanced low-frequency performance.
- Safety Listed — UL Listed (UL 1480A), UL 2239 for suspension cable, NFPA 70 and 90A compliant, CE-compliant.
Typical Applications
- Boardroom
- Conference room
- Huddle room
- House of worship
- Commercial meeting space
- Multi-purpose room
- All-hands room
- Auditorium
- Covered outdoor commercial spaces
Technical Specifications
| Specification | Value |
|---|---|
| Configuration | Coaxial 2-way pendant loudspeaker |
| Frequency Response (-3 dB) | 75–20,000 Hz |
| Frequency Range (-10 dB) | 62–20,000 Hz |
| Nominal Coverage Angle (1–10 kHz) | 115° conical |
| Power Handling, Long-term Continuous (AES) | 125 W |
| Power Handling, Peak (AES) | 500 W |
| Power Handling, Continuous (Extended Lifecycle) | 100 W |
| Sensitivity (1W/1m) | 89 dB |
| Calculated Max SPL @ 1m (continuous) | 110 dB |
| Calculated Max SPL @ 1m (peak) | 116 dB |
| Crossover Frequency | 1.7 kHz (passive 2-way) |
| Recommended High-Pass Protection | 60 Hz, min 24 dB/octave |
| Transformer Taps (70V) | 2.5, 5, 10, 20, 40, 80 W, bypass |
| Transformer Taps (100V) | 5, 10, 20, 40, 80 W, bypass |
| Nominal Impedance | 8 Ω (transformer bypass) |
| Low-Frequency Driver | 165 mm (6.5 in) woofer |
| High-Frequency Driver | 32 mm (1.25 in) neodymium dome tweeter, coaxially mounted, weather-treated |
| Dispersion Alignment System Diameter | 197 mm (7.75 in) |
| Enclosure Dimensions (diameter × depth) | 308 × 375 mm (12.1 × 14.8 in) |
| Net Weight (single loudspeaker) | 5.7 kg (12.5 lb) |
| Shipping Weight (pair) | 15.01 kg (33.09 lb) |
| Suspension Cable (included) | 4.57 m (15 ft) adjustable, per loudspeaker |
| Connector | Euroblock 6-pin with loop-through, 14–18 AWG |
| Enclosure Material | UV fade-resistant engineered plastics |
| Grille | Perforated steel, powder-coated, paintable |
| Ingress Protection | IP55 (IEC 529), outdoor wet location rated |
| Operating Temperature Range | -25°C to 65°C (-13°F to 149°F) |
| Safety Certifications | UL Listed (UL 1480A), UL 2239 suspension cable, NFPA 70 & 90A, CE |
| Color (this listing) | Black (RAL 9005) |
| SKU (this listing) | 841168-0110 (pair, black) |
Frequently Asked Questions
Does the DM6PE require a DSP or external crossover?
No. The DM6PE includes an internal passive 2-way crossover at 1.7 kHz. It operates correctly with any standard commercial amplifier providing an appropriate high-pass filter at 60 Hz (24 dB/octave minimum). Optional Bose Professional EQ voicing and SmartBass processing are available when paired with compatible Bose Professional DSPs and amplifiers.
Is the DM6PE compatible with 70V and 100V distributed audio systems?
Yes. The DM6PE includes a built-in auto-transformer with taps at 2.5, 5, 10, 20, 40, and 80 watts for 70V operation, and 5, 10, 20, 40, and 80 watts for 100V operation, plus a bypass setting for direct 8-ohm connection.
Can the DM6PE be installed outdoors?
Yes. The DM6PE carries an IP55 outdoor rating per IEC 529 and includes a weather-resistant input cover and powder-coated steel grille. It is rated for wet outdoor locations. The operating temperature range is -25°C to 65°C.
What suspension hardware is included?
Each loudspeaker includes one 4.57-meter (15 ft) adjustable suspension cable system and four cable ties. Optional threaded rod adapters, conduit adapters, and additional pendant suspension cable kits are available separately from Bose Professional.
What is the difference between the DM6PE and the DM6SE or DM6C?
All three share the same 6.5-inch coaxial driver and Dispersion Alignment technology. The DM6C is an in-ceiling model; the DM6SE is surface-mount and outdoor-rated; the DM6PE is a pendant-mount, outdoor-rated model. Choose based on mounting preference and architectural requirements.
Is this listing for a single loudspeaker or a pair?
This listing (SKU 841168-0110) covers one pair of DesignMax DM6PE loudspeakers in black finish.
What amplifiers are recommended for the DM6PE?
The DM6PE is compatible with any commercial amplifier providing the correct output configuration. For Bose Professional loudspeaker EQ voicing and SmartBass, use the PowerShare, PowerSpace+, or ControlSpace EX-series amplifiers. Visit creationnetworks.net for system design assistance.
What is the warranty period?
Bose Professional loudspeakers carry a standard warranty. Contact creationnetworks.net for current warranty terms and to register your purchase.
