Bose Professional 777189-0220 EdgeMax EM180 In-Ceiling Loudspeaker (White)

Bose SKU: 777189-0220
No reviews

Description

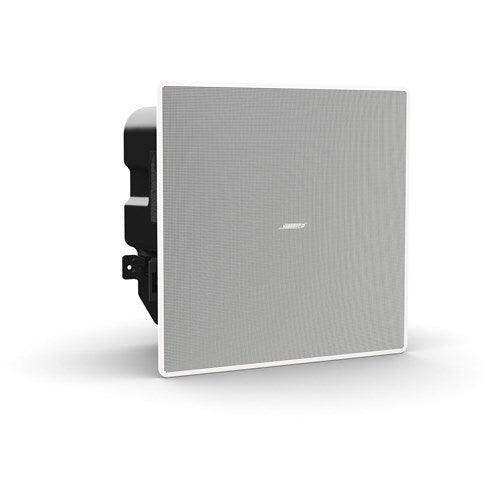

With proprietary PhaseGuide technology, the white Bose Professional EdgeMax EM180 In-Ceiling Loudspeaker creates room-filling coverage patterns typical of larger surface-mount speakers with architect-preferred aesthetics well suited for retail stores, restaurants, bars, concourse, and transportation facilities as well as hospitality venues and resorts, houses of worship, and conference centers.

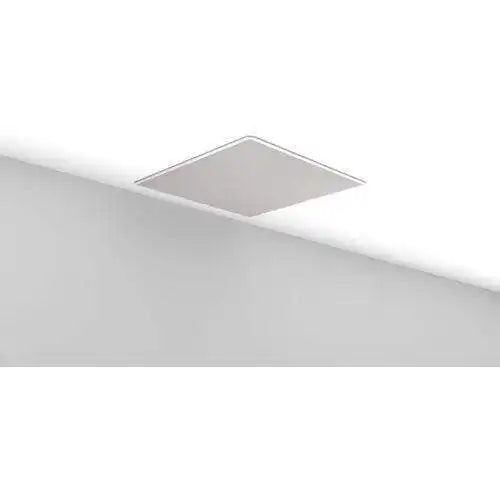

Designed to mount near wall/ceiling boundaries, the EdgeMax EM180 provides improved audio quality and coverage, while reducing the number of required units, compared to conventional dome-tweeter ceiling speakers.
  • PhaseGuide Technology: provides asymmetrical vertical pattern for room-filling coverage when mounting near wall/ceiling boundary
  • Provides improved room visual appearance: for demanding interior designs by eliminating center-of-ceiling or wall-mounted loudspeakers
  • Nominal 180° horizontal coverage: designed for in-ceiling mounting along wall coverage zones

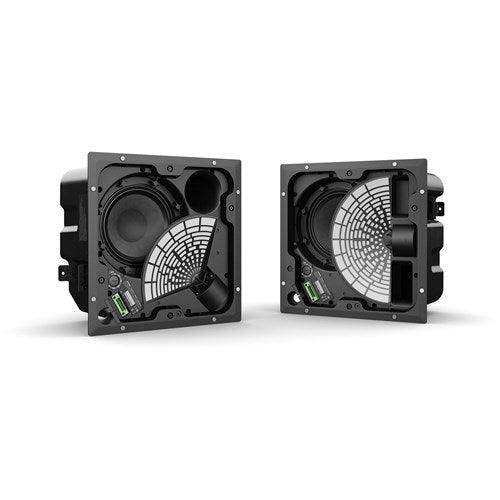

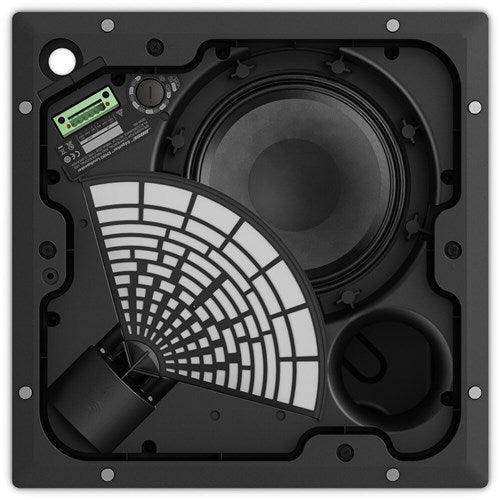

  • High-frequency compression driver: for remarkable audio quality with a wide frequency response and coverage consistency versus typical dome tweeters
  • 8" Woofer: wall-boundary loading provides extended bass impact
  • 2-way passive crossover with 70/100V transformer

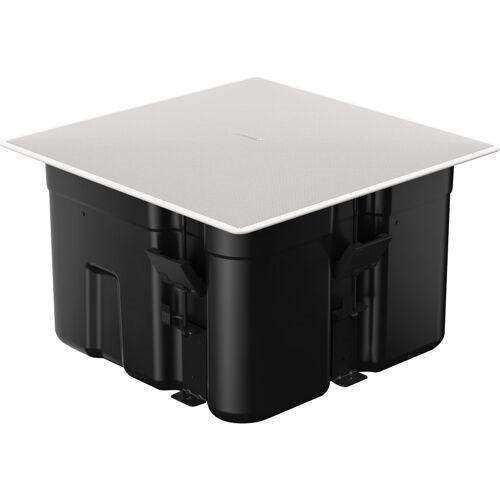

  • Auto-hold, spring-loaded mounting arms for fast, easy installs
  • Magnetically attached grille for quick access to wiring and tap settings
  • UL1480A listing for air-handling (plenum) space installation
  • PhaseGuide for Near Wall/Ceiling
  • Efficient 8" Woofer + Compression Driver
  • Easy Installation
  • 125W Continuous Program Power Capacity
  • For 70V/100V or 8-Ohm Power Amplifiers
  • Dispersion (HxV): 180 x 75°
  • 50 Hz to 18 kHz Frequency Response
  • 120 dB Peak SPL
  • Euroblock 6-Pin Connector
  • Magnetic Grille for Easy Access

Bose Professional EM180 Specs

 Speaker
Active or Passive Passive
Number of Included Speakers 1
Speaker Configuration 2-Way
Power Handling 125 W RMS
250 W Program
500 W Peak
Recommended Amplifier Power 250 W RMS
Constant Voltage / Transformer Taps 70 V / 100 V
Impedance 8 Ohms
Drivers
HF Driver 1 x Asymmetrical Horn Compression Driver
HF Voice Coil 1.3" / 33.02 mm
LF Driver 1 x 8" / 203.2 mm
LF Voice Coil 1.5" / 38.1 mm
Performance
Frequency Range 45 Hz to 20 kHz -10 dB
Frequency Response 50 Hz to 18 kHz ±3 dB
Maximum SPL 114 dB SPL (Continuous)
120 dB SPL (Peak)
Sensitivity 93 dB SPL
Coverage Angle 180° H x 75° V
Crossover 1 kHz
Connectivity
I/O 1 x Block Speaker Input (Locking)
Environmental
Certifications UL
*as per Manufacturer
Physical
Color White
Mounting 1 x Ceiling Tile
Cutout Depth 9.3" / 236.2 mm
Cutout Size 13.6 x 13.6" / 345.4 x 345.4 mm
Dimensions 15.4 x 15.4 x 9.8" / 391.16 x 391.16 x 248.92 mm
Weight 22.2 lb / 10.1 kg (with Grille)
Packaging Info
Package Weight 30.65 lb
Box Dimensions (LxWxH) 17.3 x 17.2 x 13.01"
