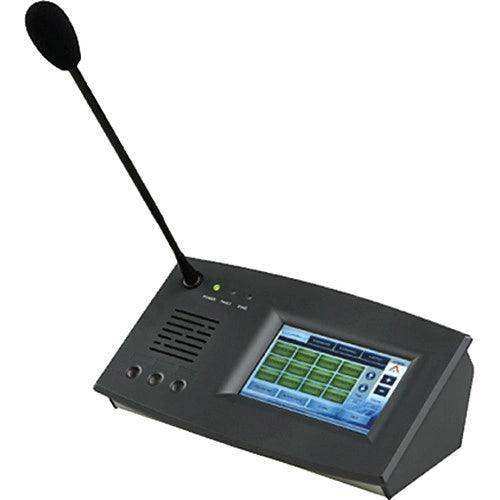

Bogen PPMIT5 IP Touchscreen Paging Station with Control Microphone

Product Overview

The Bogen PPMIT5 is a commercial-grade IP touchscreen paging station that connects to standard Ethernet infrastructure for remote paging and audio zone control over TCP/IP. Designed for multi-zone paging deployments in corporate campuses, healthcare facilities, government buildings, and large institutional environments, the PPMIT5 serves as the primary operator interface for Bogen CORE and compatible IP paging systems. Operators can page individual zones, broadcast to programmed zone groups, trigger pre-recorded messages, and adjust DSP matrix parameters — all from a single networked touchscreen panel. Its TCP/IP architecture eliminates the need for dedicated point-to-point control wiring, making it well-suited for distributed multi-building paging installations.

Product Description

The PPMIT5 connects via a standard Ethernet link and communicates over TCP/IP, integrating directly into existing IP network infrastructure. The backlit touchscreen presents up to 168 configurable buttons organized across more than 12 pages, giving system designers the flexibility to assign individual zones, zone groups, pre-recorded messages, fader controls, and event triggers to dedicated button positions. Zone names are programmable, so end-users can navigate paging zones intuitively without referencing system documentation.

Three assignable hardware keys supplement the touchscreen for frequently accessed high-priority functions. Multiple password-protected operating levels allow facilities managers and system administrators to restrict access to sensitive DSP parameters, while giving general staff the ability to perform routine zone paging. The station also supports control of third-party devices over IP, enabling integration into broader building automation and AV control systems. A control microphone is included, providing a fully functional paging station out of the box. Programmable paging parameters — including pre-call chime, adjustable levels, and button-triggered events — allow the system to be tailored to the specific operational workflow of each installation. For integrators deploying Bogen network paging systems, the PPMIT5 consolidates zone selection, message broadcasting, and DSP matrix control into one purpose-built touchscreen controller, reducing operator training requirements and simplifying day-to-day paging operations.

Key Features

• IP Connectivity via Ethernet — Connects to existing network infrastructure for remote paging over TCP/IP without dedicated control cabling.
• 168-Button Backlit Touchscreen — Configurable across 12+ pages for zone selection, group paging, message triggering, fader control, and event management.
• DSP Matrix Parameter Control — Adjust DSP system settings including fader levels and programmable parameters directly from the paging station interface.
• Programmable Zone Assignments — Assign zone names, group selections, messages, level adjustments, pre-call chimes, and event triggers to individual buttons.
• 3 Assignable Hardware Keys — Physical keys provide fast, reliable access to the most frequently used paging functions.
• Password-Protected Operating Levels — Multiple access tiers restrict DSP parameter changes to authorized personnel while allowing routine paging for general users.
• Third-Party Device Control over IP — Extend control to compatible AV and building automation devices on the same network segment.
• Pre-Call Chime and Message Broadcasting — Configure pre-page alert tones and trigger pre-recorded broadcast messages to single zones or defined zone groups.
• Control Microphone Included — Complete paging station package; no additional microphone purchase required for initial deployment.
• Programmable Paging Parameters — Tailor system behavior per installation with adjustable settings accessible directly via the touchscreen.

Typical Applications

• Corporate campus multi-zone paging and announcement systems
• Government facilities requiring controlled access paging
• Healthcare facilities with zone-specific overhead announcement requirements
• Commercial meeting spaces and conference centers
• All-hands rooms and multi-purpose facilities with distributed speaker zones
• Training rooms and educational facilities with complex zone configurations
• House of worship installations requiring flexible zone-group paging
• Auditoriums and large-venue public address systems

Technical Specifications

Frequently Asked Questions

What paging systems is the PPMIT5 compatible with?

The PPMIT5 is designed for Bogen CORE-based IP paging systems and compatible DSP matrix platforms that support Bogen's TCP/IP paging protocol. Confirm compatibility with your specific system architecture through your Bogen dealer or integrator before ordering.

Can the PPMIT5 control zones across multiple buildings on a campus?

Yes. Because the station communicates over standard TCP/IP networking, it can address paging zones on remote systems across a campus LAN or WAN, provided the network has appropriate routing and the host paging system supports distributed remote station connections.

How many zones can the PPMIT5 manage from its interface?

The touchscreen supports up to 168 configurable buttons across 12+ pages. The total number of addressable zones depends on the capacity of the underlying paging system. Buttons can be assigned to individual zones, zone groups, or other control functions as needed.

Does setup require an integrator, or can facilities staff configure it?

Initial programming — assigning zone names, button functions, and paging parameters — is typically performed by the installing integrator during system commissioning. Once configured, day-to-day operation requires no technical background from end-users.

Is a microphone included with the PPMIT5?

Yes. A control microphone is included, providing a complete paging station ready for deployment following system programming.

What access control options are available?

The PPMIT5 supports multiple password-protected operating levels. System administrators can restrict DSP parameter adjustments and advanced system controls to authorized users, while allowing general staff to perform standard zone paging without access to sensitive system settings.

Can the PPMIT5 trigger pre-recorded emergency messages?

Yes. Buttons can be configured to trigger pre-recorded messages for specific zones or zone groups, supporting applications such as emergency notifications, scheduled chimes, and routine broadcast announcements.
