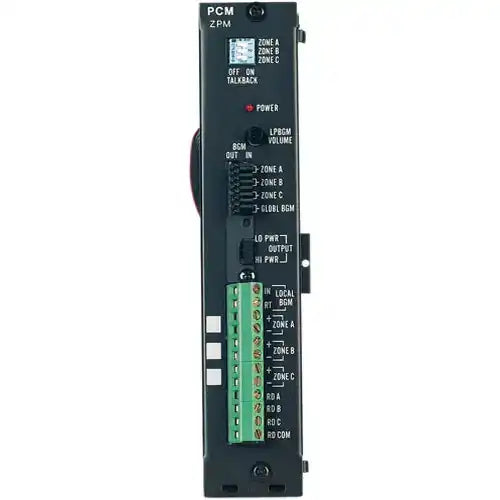

Bogen PCMZPM - Three-Zone Paging Module for the PCM2000

Product Overview

The Bogen PCMZPM is a three-zone paging module for the PCM2000 modular paging system, providing simultaneous paging and background music distribution across up to three independent zones per module. Designed for commercial AV installations, the PCMZPM supports both high-power and low-power paging system configurations, making it adaptable across a wide range of facility types and amplifier setups. Up to three PCMZPM modules can be used together to give a single PCMCPU access to nine zones, and the system can be further extended by adding the PCMTBM talk back module for two-way communication. This is the primary zone output module for integrators building or expanding a PCM2000 multi-zone paging deployment.

Product Description

The Bogen PCMZPM Three-Zone Paging Module handles the zone-level audio distribution within a PCM2000 modular paging system, routing both paging announcements and background music to up to three independently controlled zones. Each module slots into the PCM2000 chassis alongside the PCMCPU central processor and operates as the audio output stage for its assigned zones. The PCMZPM is engineered to work with high-power paging systems — typical of large facilities using 70V amplifier networks — as well as low-power configurations common in smaller commercial spaces. This dual power compatibility eliminates the need to specify different modules based on amplifier type, simplifying procurement and inventory for AV integrators who work across varied installation environments. Adding a second or third PCMZPM to the same PCMCPU doubles or triples the available zone count, reaching nine zones per CPU without any additional control hardware. When a complete two-way paging capability is required, the PCMTBM talk back module can be added to the system alongside any number of PCMZPM modules. Background music distribution is handled zone-by-zone, allowing facilities to run different audio sources or silence specific areas independently of the paging function. The PCMZPM is the workhorse of the PCM2000 system and the module most commonly ordered in multiples for medium-to-large commercial paging installations.

Key Features

• Three-Zone Operation — Each module provides independent paging and background music output to three separate zones, with up to three modules per PCMCPU.
• High and Low Power Compatibility — Operates with both high-power (70V) and low-power paging systems, eliminating the need for separate module variants across different installation types.
• Background Music Distribution — Sends background music to assigned zones independently of paging activity, supporting continuous audio in commercial environments.
• Expandable Zone Coverage — Three PCMZPM modules per PCMCPU provides access to nine zones; multiple PCMCPU units further extend system capacity.
• Talk-Back Compatible — Fully compatible with the PCMTBM talk back module, enabling two-way paging capability without additional infrastructure.
• Modular PCM2000 Architecture — Integrates directly into the PCM2000 chassis alongside PCMCPU and PCMTBM modules for a unified, organized installation.

Technical Specifications
