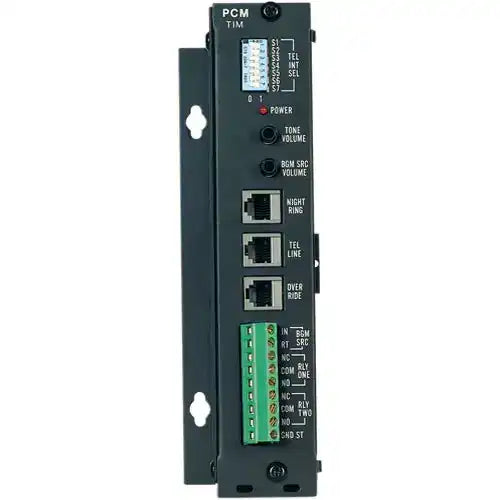

Bogen PCMTIM - Telephone Interface Module for the PCM2000

Product Overview

The Bogen PCMTIM is the telephone interface module for the PCM2000 modular paging system, adding direct telephone line connectivity, night ring control, and background music coordination to a PCM2000 installation. Designed for standard 19-inch rack mounting, the PCMTIM slots into the PCM2000 chassis alongside other system modules to extend its capability without requiring a separate standalone controller. AV integrators deploying the PCM2000 in commercial environments that require telephone-initiated paging will need the PCMTIM as part of the system build. It is the correct module when the PCM2000 must interface with an existing analog telephone line or PBX page port.

Product Description

The PCMTIM adds a telephone line input to the Bogen PCM2000 modular paging platform, enabling telephone-initiated paging from any standard analog phone connected to the system. Once installed in the PCM2000 rack chassis, the module handles call detection, override control, and background music muting automatically when a telephone page is initiated. Night ring support is included, allowing incoming calls to trigger an audible ring signal through the paging system during after-hours or unattended operation — a common requirement in commercial office, warehouse, and institutional deployments.

Background music source relay connections on the PCMTIM allow the module to interrupt and resume music playback in coordination with paging activity, without requiring manual switching. Tone and ring volume are adjustable via dedicated dials on the rear panel, accessible during installation and system commissioning. The module mounts in a standard 19-inch rack frame and is designed to install within the PCM2000 system chassis, maintaining a clean rack layout. For AV integrators building or expanding a PCM2000 paging system that will interface with telephone infrastructure, the PCMTIM is the required module for that integration.

Key Features

• Telephone Line Input — Adds direct analog telephone line connectivity to the PCM2000 modular paging system, enabling telephone-initiated pages without a separate interface controller.
• Night Ring Control — Incoming calls trigger an audible ring tone through the paging system, supporting after-hours and unattended facility operation.
• Background Music Source Relay — Relay contacts interrupt and restore background music automatically when a telephone page is in progress, coordinating audio without manual switching.
• Override Control — Telephone-initiated pages take priority over background audio, ensuring announcements are heard throughout the paged zones.
• Rear-Panel Tone and Ring Volume Controls — Dedicated adjustment dials for tone and ring volume allow fine-tuning during installation and commissioning without accessing software.
• Standard 19-Inch Rack Mount — Designed to mount in a standard 19-inch rack frame within the PCM2000 chassis, maintaining a clean and organized rack installation.
• PCM2000 System Integration — Purpose-built for the Bogen PCM2000 modular paging platform; not a standalone unit.
