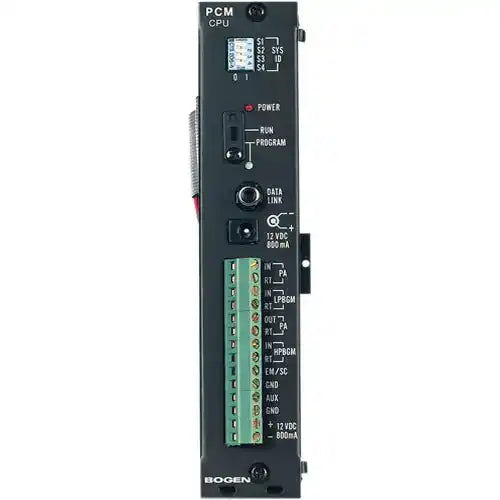

Bogen PCMCPU Central Processor for PCM2000

Product Overview

The Bogen PCMCPU is the central processor module for the PCM2000 modular paging system, serving as one of three core components required to build a functional PCM2000 installation. Each PCMCPU controls up to 9 paging zones and can be combined with additional CPU modules to scale the system to a maximum of 99 zones. Designed for commercial AV integrators and facilities managers, the PCMCPU provides the zone management and station addressing logic that drives multi-zone paging in schools, office buildings, healthcare facilities, and industrial environments. Its DIP-switch-based station ID configuration makes commissioning straightforward without requiring specialized software.

Product Description

The Bogen PCMCPU Central Processor is the intelligence at the core of the PCM2000 modular paging system. As one of three essential modules in the PCM2000 architecture, the PCMCPU handles zone routing, station identification, and system-level control for up to 9 zones per unit. Installations requiring more than 9 zones simply add additional PCMCPU modules — each addressed with its own unique station ID via onboard DIP switches — until the system reaches its maximum capacity of 99 zones across 11 CPU modules. This modular approach allows AV integrators to right-size the initial installation and expand incrementally as facility requirements grow. The Program/Run switch on the PCMCPU separates the programming mode from live operation, preventing accidental configuration changes during active paging sessions. Station ID assignment via DIP switches eliminates the need for laptop-based programming tools during initial setup or field service visits. The PCMCPU is compatible with all other PCM2000 modules including the PCMZPM zone paging module and the PCMTBM talk back module, forming a complete and cohesive commercial paging platform. For integrators building or expanding a PCM2000 9-zone paging system, the PCMCPU is the foundational component from which all zone control originates.

Key Features

• 9-Zone Control Per Module — Each PCMCPU independently controls up to 9 paging zones, with multiple units stackable for larger installations.
• Scalable to 99 Zones — Multiple PCMCPU modules can be combined within the PCM2000 system to support up to 99 zones total, accommodating large commercial facilities.
• DIP Switch Station ID — Onboard DIP switches assign a unique station ID to each PCMCPU, enabling multi-module installations without software tools.
• Program/Run Switch — Dedicated switch separates programming mode from live operation, preventing inadvertent configuration changes during active use.
• Core PCM2000 Module — One of three essential components in the PCM2000 system architecture, fully compatible with PCMZPM and PCMTBM expansion modules.
• Incremental Expansion — Additional PCMCPU modules can be added at any time to expand zone capacity as facility needs change.

Technical Specifications
