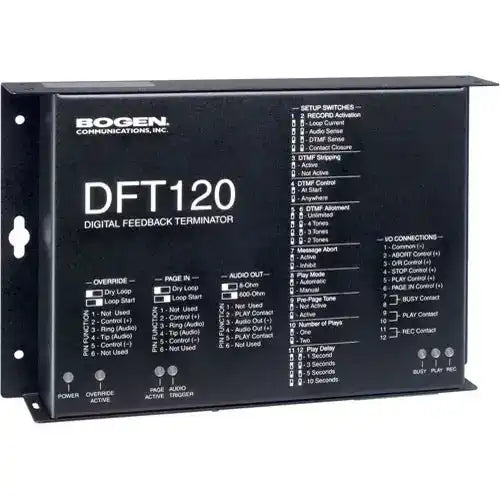

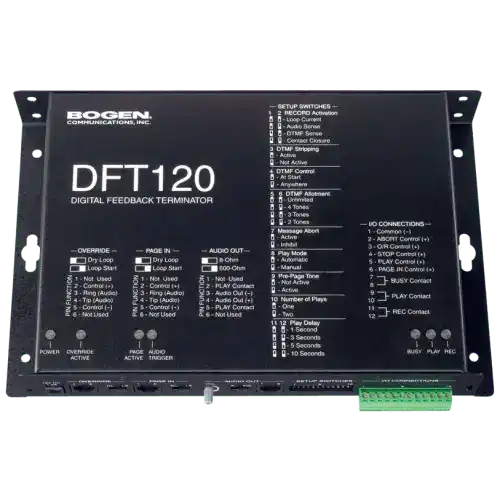

Bogen DFT120 - Digital Feedback Termination

Product Overview

The Bogen DFT120 is a digital feedback termination unit that eliminates the acoustic feedback loop between telephone handsets and overhead paging speakers in commercial telephone paging systems. Rather than requiring the caller to remain on the line during playback, the DFT120 records the page and plays it back after the handset is placed on-hook, breaking the physical feedback path entirely. Designed for commercial paging environments where multiple announcements arrive simultaneously, the DFT120 supports high-capacity page stacking — recording a new message while another is actively playing — and queuing up to 16 messages for sequential playback. With selectable telephone line interface types and output impedances, it integrates cleanly into existing telephone paging infrastructure without requiring system redesign.

Product Description

In telephone paging systems, acoustic feedback occurs when the paging speaker's audio re-enters the telephone handset, creating a loop that degrades voice quality and can disrupt announcements. The DFT120 resolves this by digitally recording each page and holding it until the caller disconnects, then playing the message through the paging speaker system with no active handset in the loop. This approach produces clean, feedback-free audio regardless of the acoustic environment.

The unit accepts a selectable loop start trunk or 4-wire dry loop input, making it compatible with the most common telephone paging interface types found in commercial facilities. Output impedance is selectable between 8-ohm and 600-ohm to match the downstream paging amplifier or distribution system. Audio is digitally sampled at a high rate using 12-bit digital audio processing, producing playback quality appropriate for voice paging in commercial environments. With 240 seconds of total audio memory and a 60-second maximum message length, the DFT120 handles the full range of standard commercial paging message lengths. The page stacking feature — which allows recording to continue while a previous page is playing — and a queue capacity of up to 16 messages ensures that high-traffic paging periods do not result in missed announcements. Adjustable delay between messages, message repeat, abort, stop, and a pre-page tone option give system designers precise control over playback behavior. DTMF zone control tones are stripped by the DFT120 and regenerated on output, preserving zone routing in multi-zone paging systems. The unit can be triggered for recording via loop start trunk, 4-wire dry loop, audio level detection, or DTMF, and supports both automatic and externally controlled operation modes.

Key Features

• Acoustic Feedback Elimination — Records the page first and plays it back only after the handset is on-hook, breaking the feedback loop between speaker and telephone.
• High-Capacity Page Stacking — Records a new message while another is actively playing, and queues up to 16 messages for sequential playback during high-traffic paging periods.
• Selectable Input Interface — Compatible with loop start trunk or 4-wire dry loop telephone line configurations to match existing system infrastructure.
• Selectable Output Impedance — 8-ohm or 600-ohm output options accommodate a wide range of downstream paging amplifiers and distribution equipment.
• 12-Bit Digital Audio Processing — High sampling rate delivers voice paging playback quality appropriate for commercial environments.
• 240-Second Audio Memory — Stores up to 240 seconds of total audio with a 60-second maximum per message, covering standard commercial paging message lengths.
• DTMF Zone Control Preserved — Strips and regenerates DTMF zone routing tones on output, maintaining multi-zone paging functionality through the unit.
• Multiple Trigger Methods — Recording activation via loop start trunk, 4-wire dry loop, audio trigger, or DTMF for flexible system integration.
• Adjustable Message Delay — Configurable delay between queued messages allows appropriate spacing for listener comprehension in commercial paging applications.
• Pre-Page Tone Option — Optional pre-announcement tone alerts building occupants before each paged message.
• Automatic and External Control Modes — Operates automatically without external control, or integrates with external systems for triggered operation.

Typical Applications

• Commercial telephone paging systems requiring feedback elimination
• Multi-zone paging installations with DTMF zone routing
• Corporate offices and commercial meeting spaces with overhead paging
• Government facilities and institutional buildings with telephone-based paging
• House of worship facilities using telephone paging for announcements
• Training facilities and multi-purpose rooms with background music and paging integration

Technical Specifications

Frequently Asked Questions

Why does a telephone paging system need a feedback termination unit?

When a telephone handset is used to page over an overhead speaker system, the speaker's audio can be picked up by the telephone and fed back into the paging path, creating an acoustic feedback loop. The DFT120 eliminates this by recording the page and playing it only after the caller hangs up, so there is no active handset in the audio loop during playback.

Can the DFT120 handle multiple pages arriving close together?

Yes. The DFT120 supports page stacking: it can record a new incoming page while a previous one is still playing, and queues up to 16 messages for sequential playback. This prevents missed announcements during high-traffic paging periods.

What telephone line interface types does the DFT120 support?

The DFT120 supports a selectable loop start trunk or 4-wire dry loop input interface, covering the most common telephone paging interface configurations found in commercial buildings.

Will the DFT120 work with my existing multi-zone paging system?

Yes. The DFT120 strips incoming DTMF zone control tones and regenerates them on output, preserving zone routing through the unit. This maintains compatibility with DTMF-based multi-zone paging systems.

What is the audio quality of the DFT120's playback?

The DFT120 uses 12-bit digital audio processing with a high sampling rate, producing voice playback quality appropriate for commercial overhead paging applications.

How long can a single page message be?

The maximum length for a single message is 60 seconds, with 240 seconds of total audio memory available for stacked messages.

Can the DFT120 add a pre-announcement tone before each page?

Yes. A pre-page tone option is available, alerting building occupants before each message plays — a standard feature in many commercial paging deployments.
