Bluesound PRO HUB – Multi-Input Network Audio Accessory for BluOS

Product Overview

The Bluesound Professional HUB is a network audio input accessory that connects analog and digital audio sources — including TVs via HDMI eARC, optical, coaxial, and analog line inputs — to a BluOS ecosystem for distribution across a commercial installation. It allows existing audio equipment such as televisions, business music players, or turntables to feed into a BluOS network and play in single or multiple zones without being constrained by physical proximity or cable runs. The HUB is USB-C powered and connects to the network via gigabit ethernet or dual-band Wi-Fi. Up to four HUB units can operate on a single network, providing up to eight simultaneous source streams.

Product Description

The HUB is particularly useful in commercial AV systems where existing audio sources need to be distributed through a BluOS streaming network without replacing the source devices. A TV connected via HDMI eARC can route its audio to any zone in the building via the BluOS network; a turntable or analog music player connected to the phono input can similarly be shared facility-wide. The HUB plays one analog and one digital input stream simultaneously, giving each unit two concurrent source outputs to the network.

The HUB is controlled through the BluOS Controller app on iOS, Android, Mac, or Windows — users select the HUB as an audio source just as they would any streaming service or local file. Third-party control integration includes Control4, Crestron, URC, RTI, ELAN, and Lutron (via software update). With no moving parts and USB-C powering, the HUB has a minimal physical footprint and does not require rack space, making it practical for discreet placement behind TVs, on credenzas, or inside AV furniture.

Key Features

• HDMI eARC Input with CEC — Connects a TV's audio output to the BluOS network, enabling TV sound to be distributed to any zone in the building from a single HUB connection.

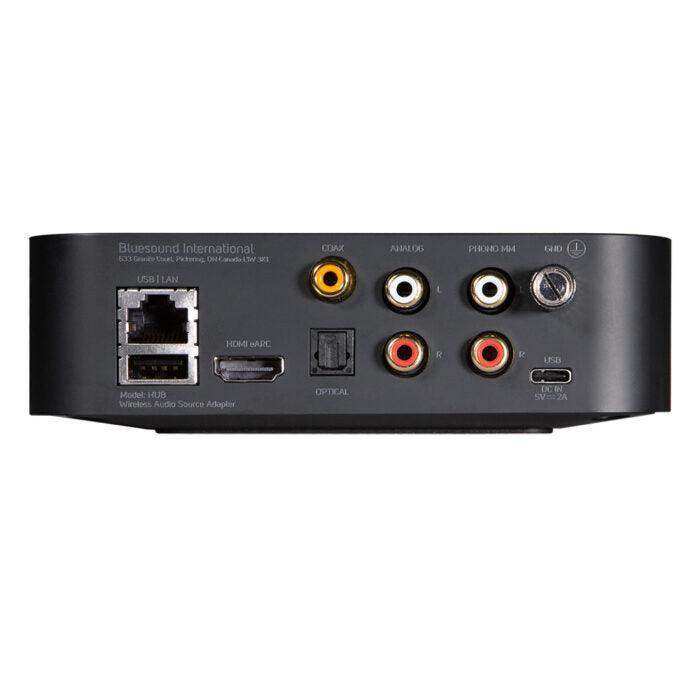

• Five Input Options — HDMI eARC, coaxial RCA (75Ω), optical TOSLINK, stereo analog RCA, and moving-magnet phono input cover virtually all common commercial source types.
• Two Simultaneous Streams — Each HUB plays one analog and one digital source simultaneously to any BluOS players or speakers on the network.
• Up to Four HUBs Per Network — A maximum of four HUB units can operate on a single BluOS network, providing up to eight simultaneous source streams for large commercial installations.
• Gigabit Ethernet and Wi-Fi 5 — Supports GigE 1000 Mbps wired connection or 802.11ac dual-band Wi-Fi (2.4/5GHz) for flexible placement without ethernet cabling.
• USB-C Powered — Universal USB-C power adapter (100–240V AC, 5V/2A output) keeps the HUB compact and easy to place near source equipment.
• Hi-Res to 192kHz/24-bit — Native sampling rates up to 192kHz; frequency response 20–20kHz ±0.3dB; SNR >100dB (line input).
• Moving-Magnet Phono Stage — Onboard MM phono preamp allows direct turntable connection without an external phono stage, distributing vinyl audio across the network.
• Control System Integration — Control4, Crestron, URC, RTI, ELAN, and Lutron integration (Lutron via software update).

Typical Applications

• Routing TV audio via HDMI eARC to BluOS speakers throughout a commercial facility
• Distributing a business music player or DJ mixer into a multi-zone BluOS system
• Adding a turntable or analog source to a network-based commercial audio installation
• Conference rooms requiring sharing of AV source audio to adjacent overflow zones
• Hospitality spaces routing bar/lounge TV audio to adjacent seating areas
• Boardrooms distributing a local audio source to remote zones without re-cabling

Technical Specifications

Frequently Asked Questions

Can the PRO HUB distribute TV audio to multiple zones simultaneously?

Yes. Once connected via HDMI eARC, the HUB places the TV audio source on the BluOS network, where it can be selected and played in any zone or all zones simultaneously from the BluOS Controller app or a connected control system.

How many HUB units can be used in a single installation?

Up to four HUB units can operate on a single BluOS network, providing a maximum of eight simultaneous audio source streams from external devices.

Does the PRO HUB work with a turntable?

Yes. The HUB includes an onboard moving-magnet (MM) phono preamp, allowing a turntable with a standard MM cartridge to connect directly without an external phono stage.

Does the PRO HUB require rack mounting?

No. The HUB is a compact USB-C powered device with no fan or hard drive. It can be placed discreetly behind a TV, on a shelf, inside AV furniture, or anywhere near the source device.

Is Wi-Fi suitable for the PRO HUB in a commercial environment?

For reliability in commercial environments with network congestion, wired gigabit ethernet is recommended. Wi-Fi 5 is available for deployments where ethernet cabling to the HUB's location is not feasible.

What is the warranty on the PRO HUB?

Bluesound Professional products are backed by a manufacturer warranty. Contact Creation Networks at creationnetworks.net for warranty details.
