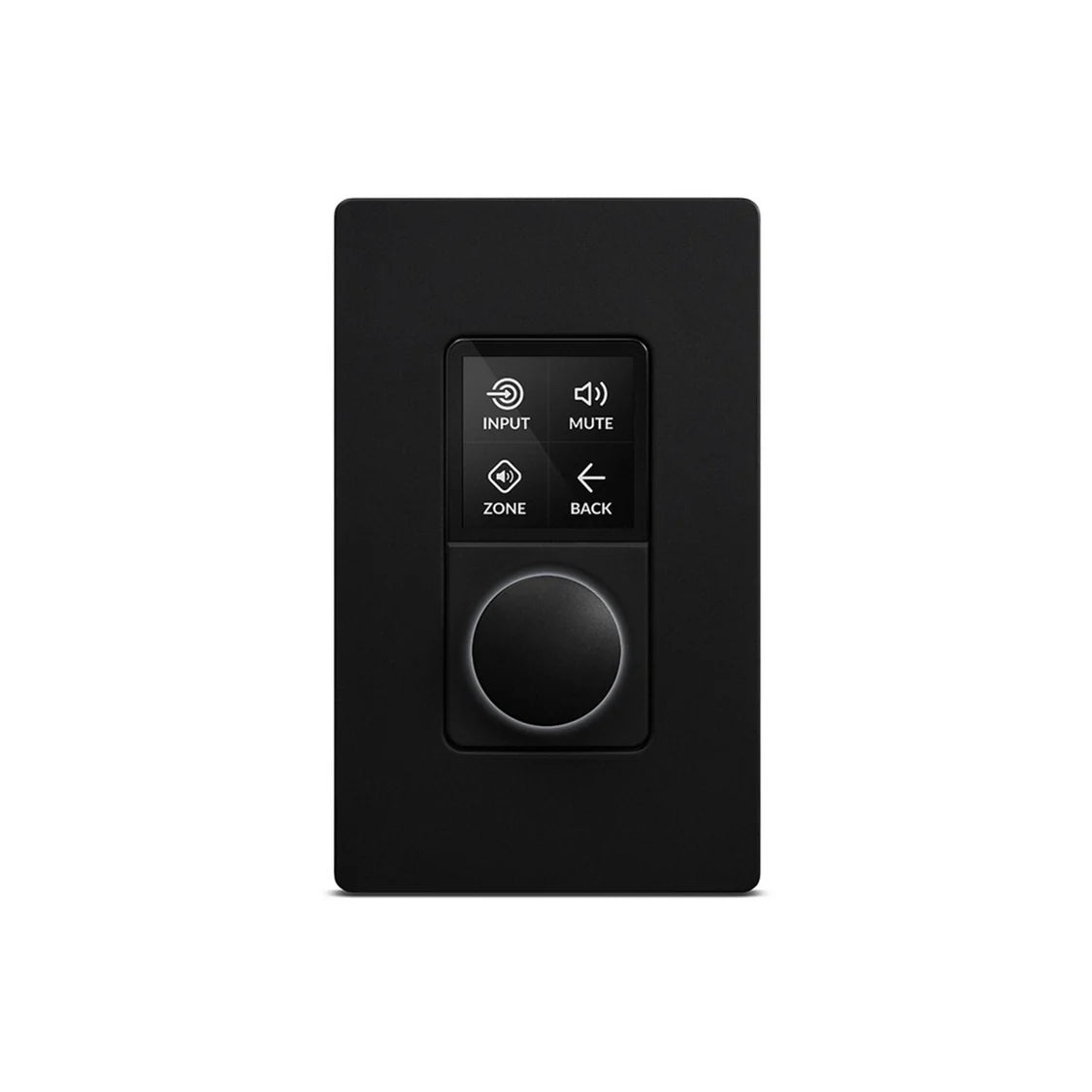

Blaze Audio Wall-M – PoE Multi-Zone Wall Controller, Black (US)

Product Overview

The Blaze Audio Wall-M (BGM-888-038) is a PoE-powered multi-zone wall controller for the PowerZone Connect amplifier system, in black finish. It mounts in a standard US decorator plate, requires no separate power supply, and provides per-zone volume and source selection control for end users.

Product Description

The Wall-M Black (BGM-888-038) is the black-finish variant of the Blaze Audio (Blaze by Sonance) Wall-M zone controller. It delivers the same functionality as the white version (BGM-888-037) — PoE power delivery, per-zone volume control, and source selection — in a black finish suited to dark wall plates, modern commercial interiors, or spaces where a black wall controller is preferred.

Like its white counterpart, it is powered entirely over the Ethernet cable via PoE, eliminating the need for a separate power circuit at each controller location. It fits a standard US decorator single-gang wall opening and integrates directly with the Blaze Audio PowerZone Connect amplifier ecosystem. Appropriate for boardrooms, commercial meeting spaces, hospitality zones, and any multi-zone commercial audio installation where per-zone user control is required. Browse the full PowerZone Connect ecosystem at Creation Networks.

Key Features

• PoE Powered — Receives power over the Ethernet cable, eliminating the need for a separate power supply or electrical circuit at the wall plate.
• Multi-Zone Control — Provides per-zone volume and source selection control for the PowerZone Connect amplifier system.
• US Decorator Plate Format — Fits standard US single-gang decorator wall openings for easy integration into commercial installations.
• Black Finish — Suits dark wall plates, modern commercial interiors, and spaces where a black controller is preferred.
• PowerZone Connect Compatible — Designed exclusively for use with the Blaze Audio PowerZone Connect amplifier ecosystem.
• No Separate Power Supply — Simplified installation with a single Cat cable carrying both data and power to each controller position.
• Commercial Install Grade — Built for permanent installation in retail, hospitality, corporate, and multi-purpose commercial AV environments.

Typical Applications

• Boardrooms and executive conference rooms requiring per-room audio zone control
• Commercial meeting spaces with distributed background music zones
• Multi-purpose rooms where different zones require independent source and volume control
• Conference rooms in corporate office environments with PowerZone Connect amplification

Technical Specifications

Frequently Asked Questions

Which amplifiers is the Wall-M compatible with?

The Wall-M is designed for use with Blaze Audio PowerZone Connect amplifiers. It is not compatible with the standard PowerZone Series (non-Connect) amplifiers.

Does the Wall-M require a separate power supply?

No. The Wall-M is powered via PoE (Power over Ethernet) over the same Cat cable used for control data. A PoE-capable network switch or PoE injector in the rack is required.

What PoE standard does the Wall-M require?

The Wall-M uses standard PoE. Consult the Blaze Audio PowerZone Connect documentation for the specific PoE wattage requirement to ensure compatibility with your network switch or injector.

What control functions does the Wall-M provide?

The Wall-M allows the end user to adjust volume and select audio sources on a per-zone basis directly at the wall, without requiring access to an app or central control system.

What is the difference between BGM-888-037 and BGM-888-038?

BGM-888-038 is the black finish version. BGM-888-037 is the same controller in white finish. Both are US versions with identical functionality.

Where can I find the full PowerZone Connect system?

The complete Blaze Audio PowerZone Connect ecosystem, including amplifiers and accessories, is available at creationnetworks.net/collections/blaze-audio.
