Blaze by Sonance PowerZone Connect 504D – 500W 2-Channel Dante Install Amplifier

Product Overview

The Blaze by Sonance PowerZone Connect 504D is a DSP-enabled install amplifier built for permanent commercial audio installations where network audio distribution and remote management are essential. Delivering 500W across two channels, this compact 1U rack-mount amplifier integrates Dante network audio (AES67-compliant) for multi-zone background music and paging deployments. As a networkable Class-D commercial audio amplifier, it connects to your infrastructure via 10/100 Ethernet for configuration and monitoring through PowerZone Control software. It is the right choice for integrators who need a reliable, fully managed Dante-enabled install amplifier in a single rack space.

Product Description

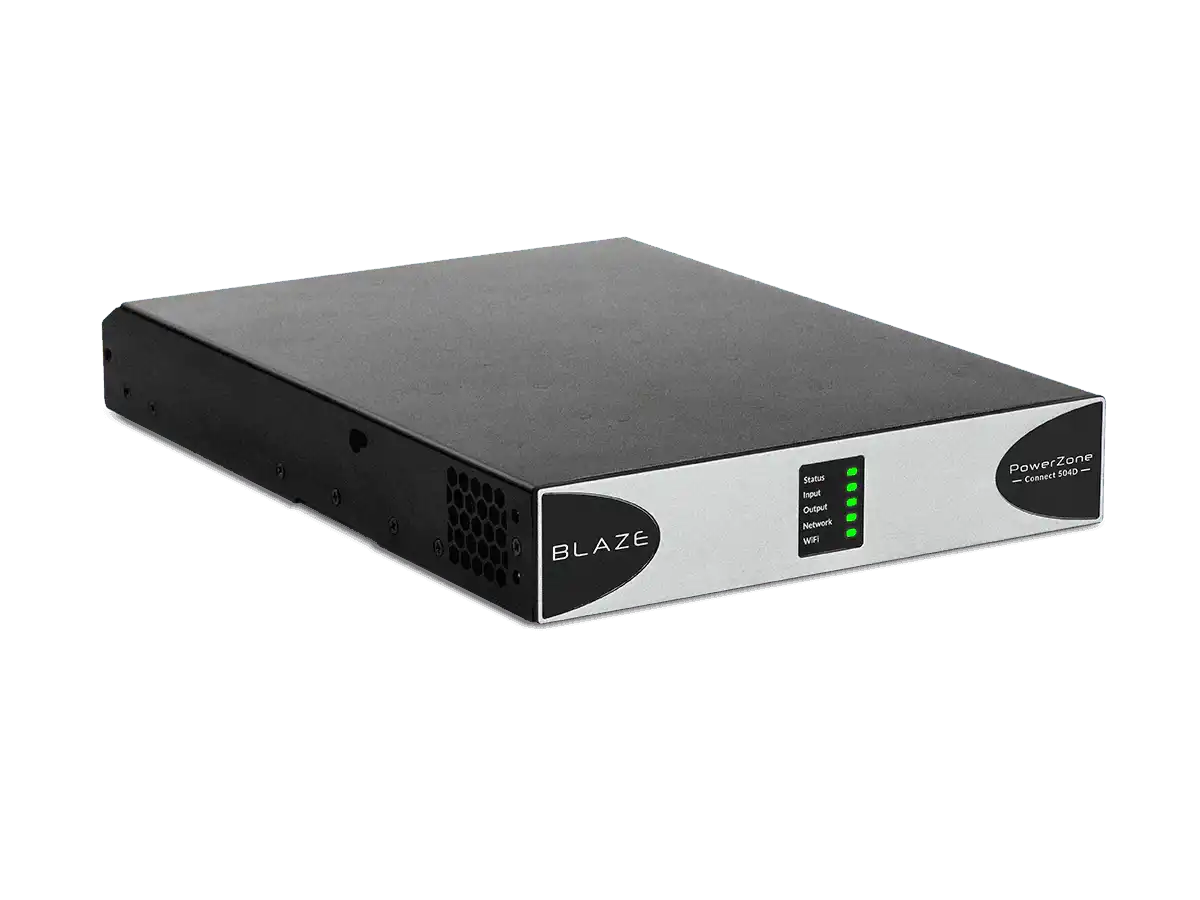

The PowerZone Connect 504D occupies a single rack unit and delivers 500W of total output power across two channels, making it an efficient solution for background music systems, distributed paging, and multi-zone audio in small-to-medium commercial spaces. At its core is a built-in matrix DSP with configurable EQ, crossover, delay, and dynamics processing — eliminating the need for an external DSP unit and reducing system complexity.

Dante network audio support (AES67-compliant) allows audio to be routed across your IP network from any Dante-enabled source, making the 504D particularly well suited for larger facilities with centralized audio distribution infrastructure. The amplifier receives and transmits audio over standard Cat5e/Cat6 cabling, simplifying cable management compared to traditional analog signal runs.

Remote management is handled through PowerZone Control, Blaze by Sonance's web and app-based software platform. Integrators and facility managers can adjust levels, routing, EQ, and monitor system health from any networked device — no on-site access required for routine adjustments. The 10/100 Ethernet port supports both audio (via Dante) and control on the same network interface.

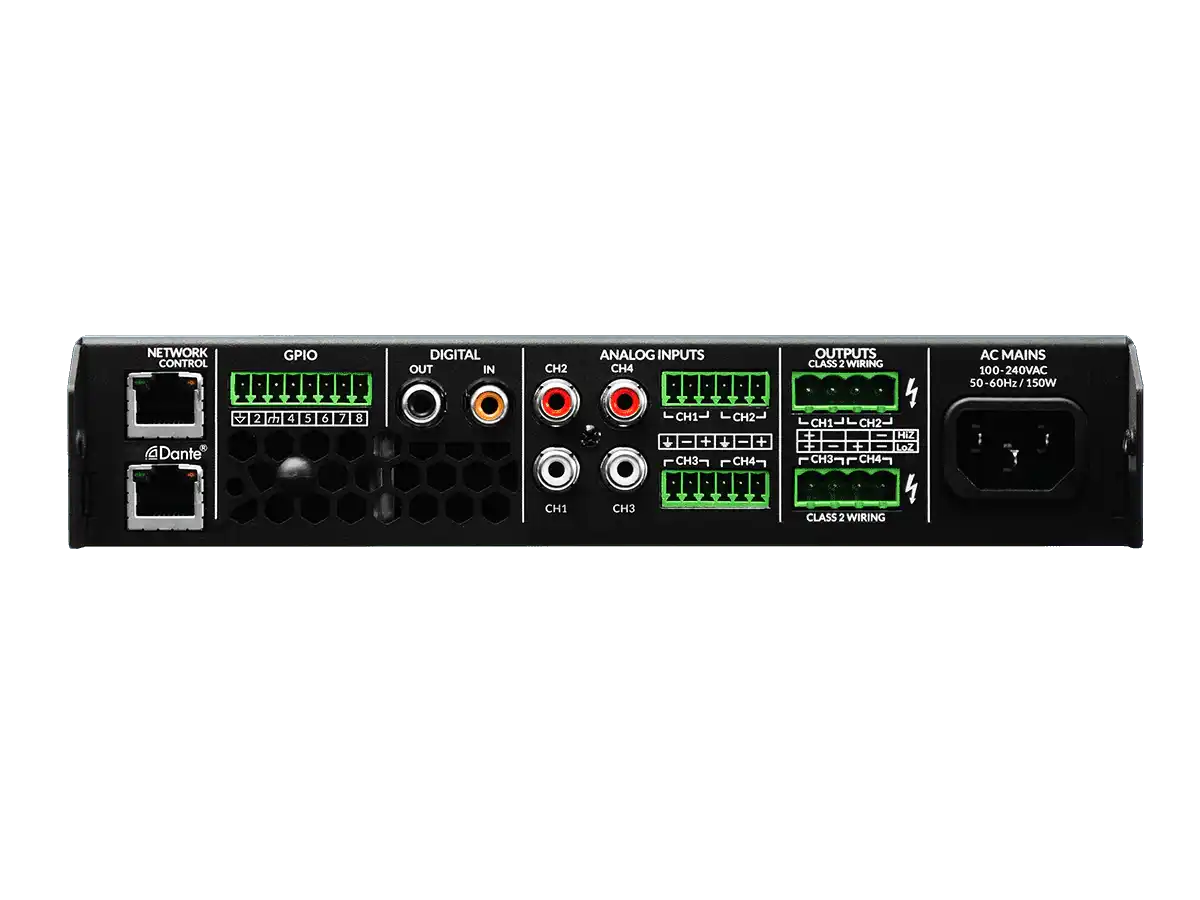

Balanced and unbalanced analog inputs are available for local source connections, and Euroblock speaker output connectors provide a secure, professional termination standard. The Class-D amplifier topology ensures high efficiency and low heat output, supporting reliable 24/7 operation in commercial environments. Browse the full Blaze by Sonance amplifier lineup at Creation Networks.

Key Features

• 500W Total Output Power — Two channels of high-efficiency Class-D amplification for background music and paging applications.
• Dante Network Audio (AES67) — Receive and transmit audio over standard IP networks for flexible, scalable multi-zone distribution.
• Built-in Matrix DSP — On-board EQ, crossover, delay, and dynamics processing eliminate the need for external DSP hardware.
• 1U Rack-Mount Form Factor — Compact chassis fits in standard 19" rack installations, minimizing space requirements in equipment rooms.
• PowerZone Control Software — Web and app-based remote management for configuration, level control, and system monitoring from any networked device.
• 10/100 Ethernet Connectivity — Single network connection handles both Dante audio transport and remote control/monitoring.
• Balanced/Unbalanced Analog Inputs — Accepts local analog sources alongside Dante network audio for flexible signal routing.
• Euroblock Speaker Outputs — Secure, professional-grade output termination suited for permanent commercial installations.
• Class-D Efficiency — Low heat output and high power efficiency support continuous 24/7 operation without excessive thermal load.

Typical Applications

• Boardroom audio distribution
• Conference room background music and paging
• Commercial meeting spaces with multi-zone audio
• Multi-purpose rooms requiring flexible zone routing
• Training rooms with distributed speaker systems
• House of worship background and fill speaker systems
• Auditorium distributed audio

Technical Specifications

For complete electrical specifications, refer to the official Blaze by Sonance PowerZone Connect 504D datasheet available from your authorized distributor.

Frequently Asked Questions

Is the PowerZone Connect 504D compatible with any Dante network audio source?
Yes. The 504D is AES67-compliant and works with any Dante-enabled device on the same network, including Dante-enabled media players, signal processors, and mixing consoles.

Does the 504D require a separate DSP unit?
No. The amplifier includes a built-in matrix DSP with EQ, crossover, delay, and dynamics processing. For most commercial install applications, no external DSP is required.

What software is used to configure and monitor the amplifier?
PowerZone Control is the configuration and monitoring platform. It is web and app-based, allowing access from any device on the same network without requiring dedicated control hardware.

Can Dante audio and control run on the same network?
Yes. A single Cat5e/Cat6 connection handles both Dante audio transport and Ethernet-based control and monitoring via PowerZone Control.

What speaker loads does the 504D support?
Refer to the official datasheet for rated impedance loads. The amplifier is designed for permanent commercial install speaker systems; consult the datasheet for supported 4Ω and 8Ω configurations.

Is the PowerZone Connect 504D suitable for 70V/100V distributed speaker systems?
Consult the official Blaze by Sonance datasheet or contact Creation Networks for confirmation of 70V/100V compatibility for your specific application.

What warranty and support are provided?
Warranty terms are provided by Blaze by Sonance. Contact Creation Networks for warranty registration, technical support, and integration assistance.
