Blaze Audio PowerZone Connect 3004D - 3000 W DSP-enabled Class-D amplifier with 4 channels and Dante - LBX-888-008

Product Overview

The Blaze by Sonance PowerZone Connect 3004D is a high-power, DSP-enabled Class-D install amplifier engineered for demanding distributed commercial audio installations where network control, zone flexibility, and Dante audio transport are required. Delivering 3000W across four channels, this 2U rack-mount amplifier is purpose-built for commercial integrators deploying multi-zone commercial audio systems in large venues. With onboard matrix DSP, Dante network audio, and full remote management via PowerZone Control software, it represents a complete amplification solution in a single rack space. As a networkable install power amplifier, the 3004D reduces infrastructure complexity while giving AV teams centralized control over every aspect of system performance.

Product Description

The PowerZone Connect 3004D delivers 4 x 750W into 4Ω, making it one of the most capable DSP-enabled Class-D install amplifiers available at this price point. Each channel benefits from individual DSP processing including EQ, limiting, delay, and crossover filters — all configurable without a separate outboard processor. Dante network audio support means audio can be distributed across the facility's IP network, eliminating long analog cable runs and the associated noise and signal degradation that come with them. This is particularly valuable in large commercial venues where audio sources may be located significant distances from the amplifier rack.

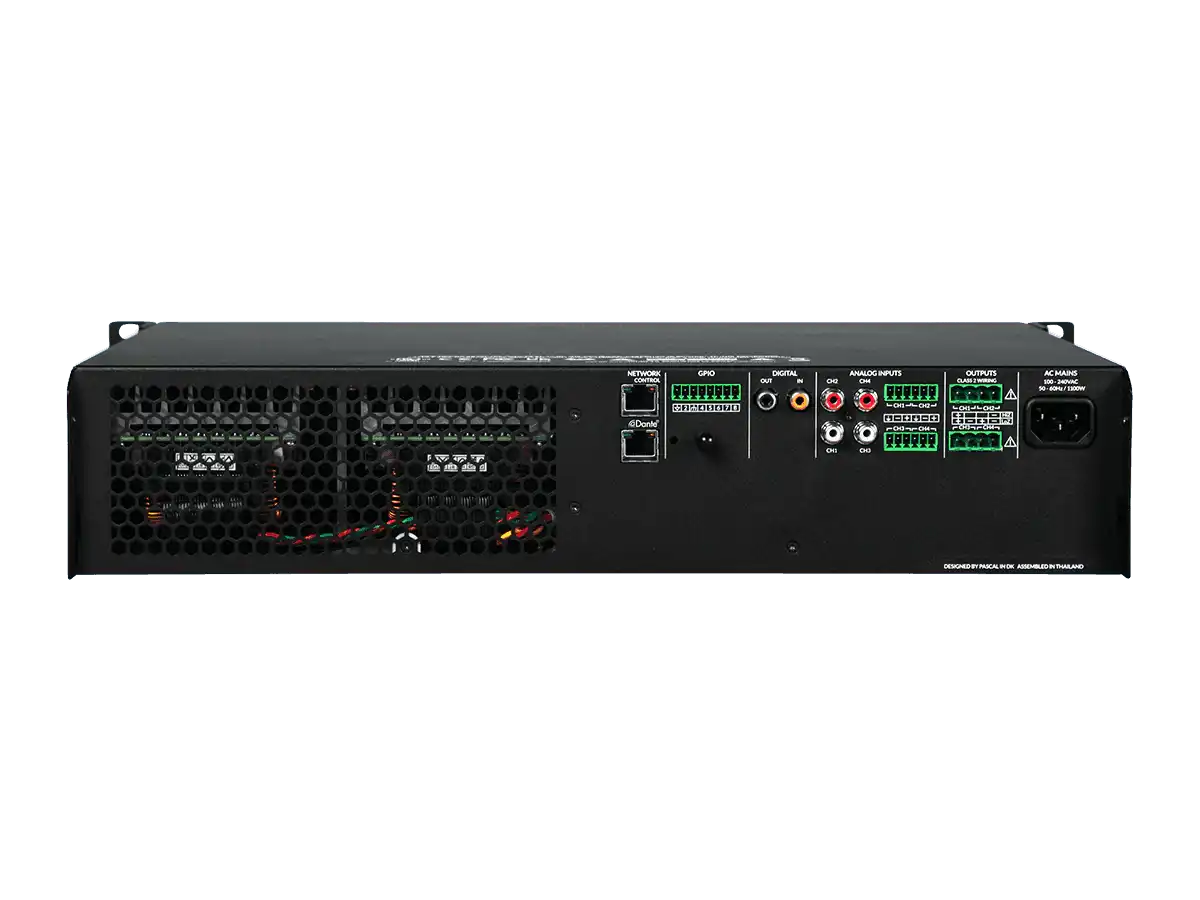

The 3004D integrates directly into IP-based AV infrastructure via its 10/100 Ethernet port, enabling configuration, monitoring, and real-time adjustment through PowerZone Control software from any networked device. System presets can be stored and recalled, making venue changeovers or seasonal programming updates straightforward for facility staff. Balanced XLR/TRS combo inputs accept line-level signals from any professional source, while Euroblock speaker outputs provide a secure, vibration-resistant connection suitable for permanent installation environments. The universal switch-mode power supply (100–240V) ensures reliable operation across international deployments without transformer adaptation.

For commercial AV integrators sourcing amplification for houses of worship, corporate campuses, or multi-purpose venues, the 3004D is available through Creation Networks' Blaze by Sonance product line. Its combination of Dante transport, matrix DSP, and network management in a 2U form factor makes it a practical choice for rack-mount DSP amplifier installations where space and budget discipline are equally important.

Key Features

• 3000W Total Output Power — Four channels at 750W each into 4Ω, providing headroom for high-SPL commercial environments.
• Dante Network Audio — AES67-compatible Dante transport eliminates analog cable runs over distance and integrates with existing Dante-enabled AV ecosystems.
• Onboard Matrix DSP — Per-channel EQ, limiting, delay, and crossover processing removes the need for a separate signal processor.
• PowerZone Control Software — Web and app-based remote management enables system configuration, monitoring, and preset recall from any networked device.
• 10/100 Ethernet Port — Provides both Dante audio transport and network management connectivity over a standard IP infrastructure.
• Class-D Efficiency — High-efficiency amplifier topology reduces heat output and power draw, lowering operating costs in always-on commercial installations.
• Balanced XLR/TRS Combo Inputs — Accept professional line-level signals with strong common-mode noise rejection for clean signal integrity.
• Euroblock Speaker Outputs — Secure, tool-terminated connections suited to permanent rack installations where connector reliability is critical.
• 2U Rack-Mount Form Factor — Maximizes rack density in equipment rooms where space is at a premium.
• Universal Power Supply (100–240V) — Supports global deployment without voltage adaptation hardware.

Typical Applications

• House of worship main and overflow zone audio
• Corporate campus distributed audio systems
• Large conference rooms and boardrooms
• Multi-purpose event and training rooms
• Auditoriums and performing arts centers
• All-hands meeting rooms requiring zoned amplification
• Commercial meeting spaces with Dante-enabled AV infrastructure
• Higher education lecture halls and common areas

Technical Specifications

For complete specifications, refer to the official Blaze Audio datasheet.

Frequently Asked Questions

Is the PowerZone Connect 3004D compatible with third-party Dante devices?

Yes. The 3004D uses standard Dante networking, which is compatible with any AES67-compliant or Dante-enabled device. It can receive audio from Dante-enabled mixers, DSPs, and media servers from manufacturers including Yamaha, Shure, QSC, and others.

Does the 3004D require a dedicated Dante license?

No separate Dante license is required. Dante functionality is built into the amplifier hardware and managed via the Dante Controller application, which is free to download from Audinate.

How is the amplifier configured and monitored remotely?

Configuration and monitoring are handled through PowerZone Control, a web and app-based platform that connects to the amplifier over the facility's IP network. No proprietary hardware controller is required — any networked device with a web browser or the app can access the interface.

Can the 3004D be used in a bridge or parallel configuration?

Channel pairing options depend on the specific firmware version and system configuration. Refer to the Blaze Audio 3004D datasheet or contact your Creation Networks representative for current bridging and parallel operating modes.

What kind of speaker loads does the 3004D support?

The amplifier is rated at 4 x 750W into 4Ω per channel. Minimum and maximum load impedance specifications are detailed in the official Blaze Audio datasheet; always confirm load compatibility before installation.

How does the onboard DSP replace a standalone signal processor?

Each channel includes parametric EQ, high-pass and low-pass filters, delay, and limiting. These are configured via PowerZone Control and stored as presets, so a separate outboard DSP unit is not required for most standard distributed audio applications.

What warranty covers the PowerZone Connect 3004D?

Blaze by Sonance products are backed by manufacturer warranty. Contact Creation Networks at creationnetworks.net for current warranty terms and post-sale support options.

Is professional installation required?

The 3004D is designed for permanent commercial installation by qualified AV integrators. Rack mounting, IP network configuration, Dante routing, and DSP programming all benefit from professional commissioning to ensure optimal system performance.
