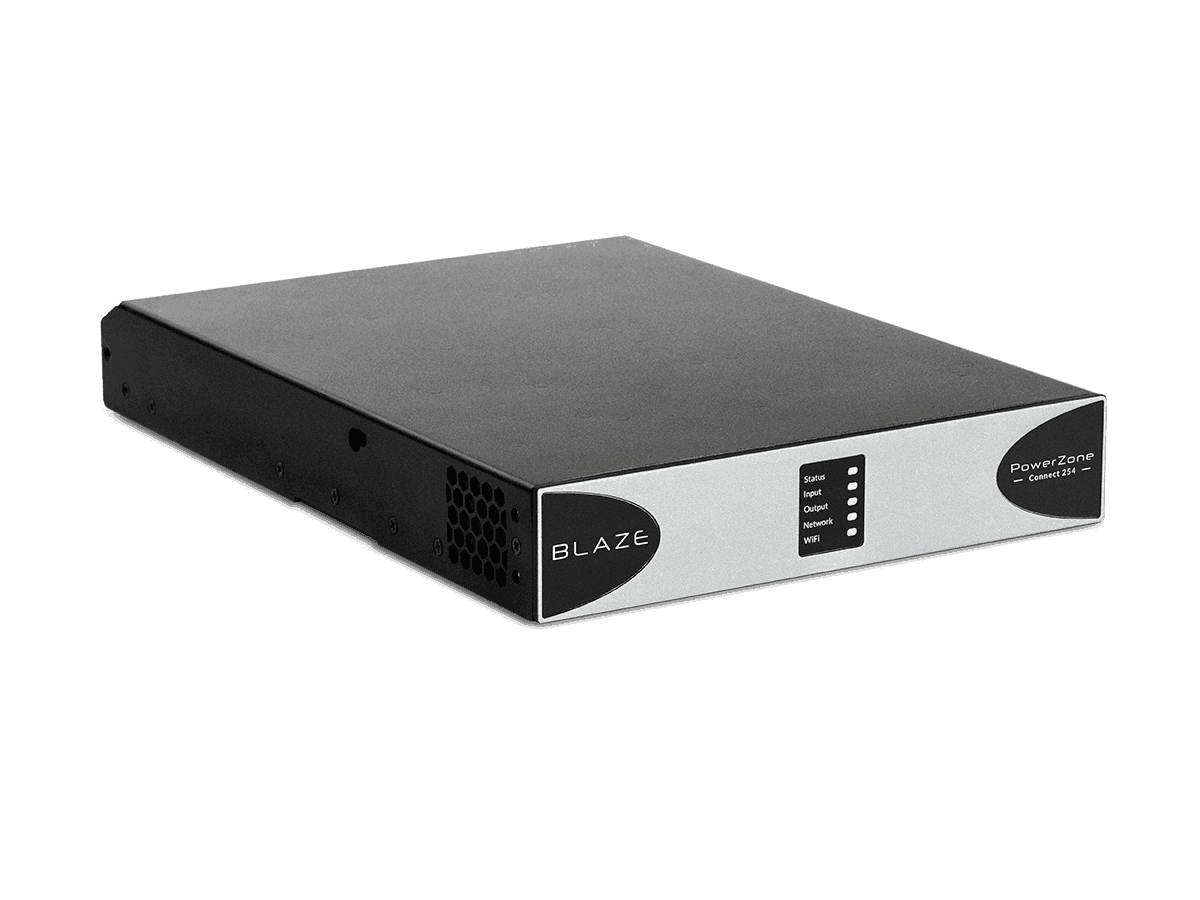

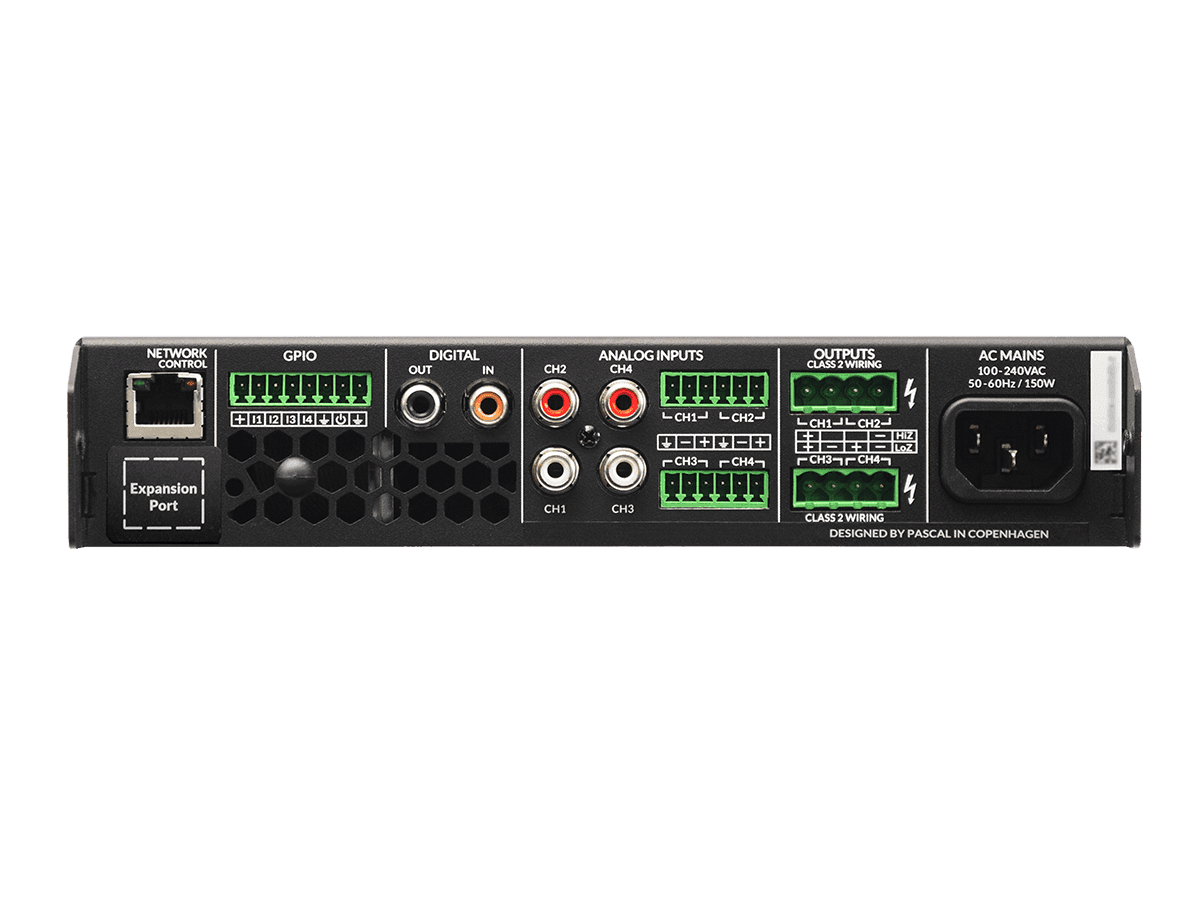

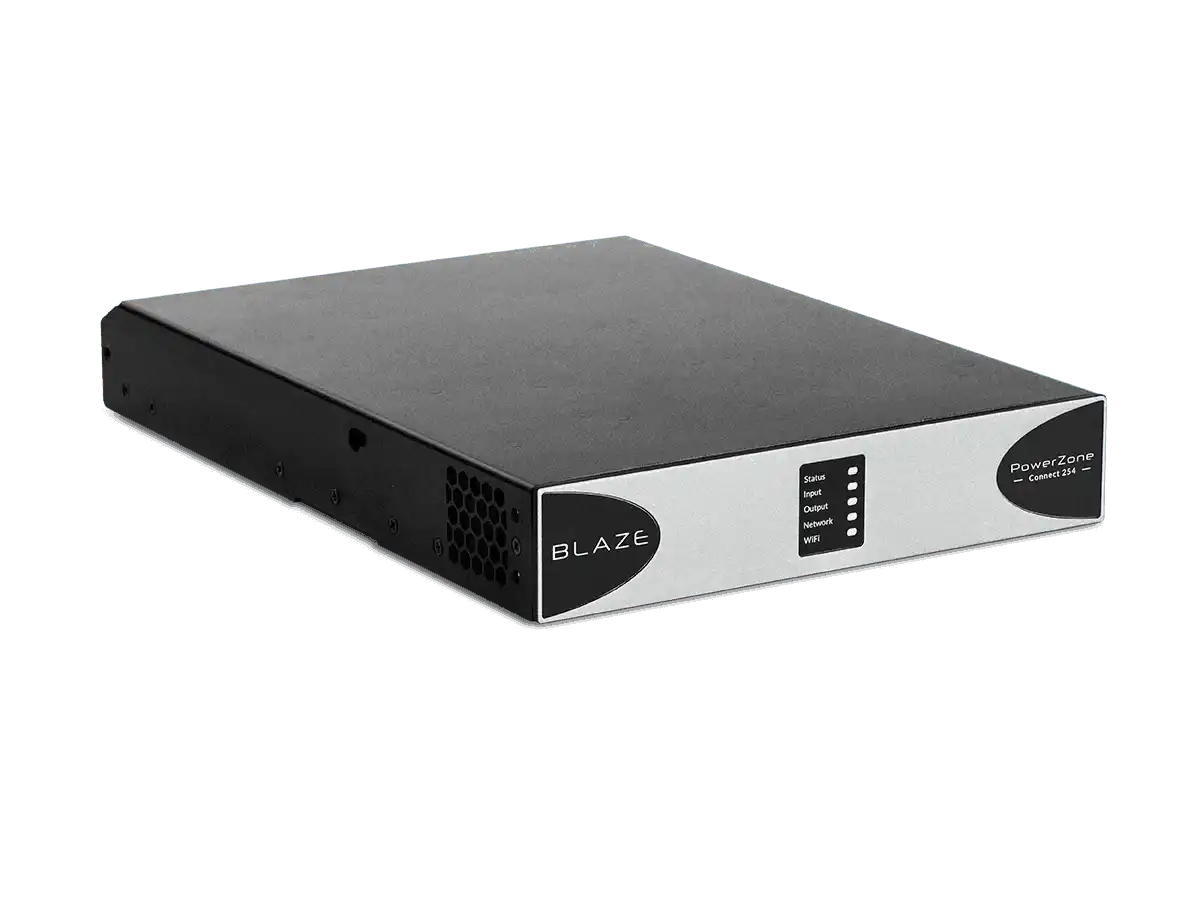

Blaze Audio PowerZone Connect 254 - Compact 4 x 125W Install Power Amplifier - UBX-888-009

Blaze Audio SKU: UBX-888-009
No reviews
Price:
$899.00 $1,100.00

Description

The PowerZone™ Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to simplify the lives of system installers, providing unmatched reliability, efficiency, and exceptional system configuration. Their compact form factor makes them an ideal choice for audio/voice installation projects with limited space constraints, demanding high-output performance of up to 1000 W. The 1U family powers both conventional low-impedance (4 Ω to 16 Ω) loudspeakers and constant voltage (70 V/100 V) transformer-coupled loudspeakers, and features automatic power-sharing technology for proportional distribution in both Lo-Z and Hi-Z modes.

Specific models of the PowerZone™ Connect 1U amplifiers offer compatibility with Audinate Dante™ AoIP networks and installations. Our intuitive PowerZone™ Control web app is built into all our PowerZone™ Connect amplifiers for easy system setup. PowerZone™ Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more.

  • Ultra-compact ½-rack form factor
  • Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
  • Hybrid power distribution in both Lo-Z and Hi-Z
  • Powered by Pascal UMAC™ Class-D technology
  • Flexible power sharing across output channels
  • S/PDIF input/output
  • Configurable GPIO
  • ErP and Energy Star compliant
  • UL listed audio equipment
  • UREC™ universal power supply with PFC 5 Year warranty
Total System Power

250 W
Output Power @ 4/8Ω

4 x 60 W
Output Power @ 70/100V*

2 x 125 W
Powershare (up to) Across all channels**

1 x 250 W
Power Consumption

75 W
Dimensions

44 x 220 x 319 mm
1.7 x 8.7 x 12.6 in
Weight

2.8kg, 6.2 lbs
Output Circuitry

UMAC™ Class D – full bandwidth PWM modulator with ultra-low distortion
Output Voltage

45Vrms (S.E) – 70/100V (Hi-Z)
Signal To Noise-Ratio

> 100 dB (A-weighted, 20 Hz – 20 kHz, 8 Ω load)
THD+N (typical)

< 0.05 % (20 Hz – 20 kHz, 8 Ω load, 3 dB below rated power)
Frequency Response

20 Hz – 20 kHz (+0/-0.25 dB (8 Ω load, 3 dB below rated power)
Protection Circuits

Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection
Power Supply

UREC™ universal mains switch mode power supply with Power Factor Correction (PFC)
and integral standby converter
Operating Voltage/Frequency.

Universal Mains, 100-240V, 50-60Hz
Operating temperature

0-40°C
Standby Consumption

< 0.5 W (Energy Star & ErP 1275/2008/EC compliant)
Power Ratings

1% THD @ 120VAC and 230VAC
