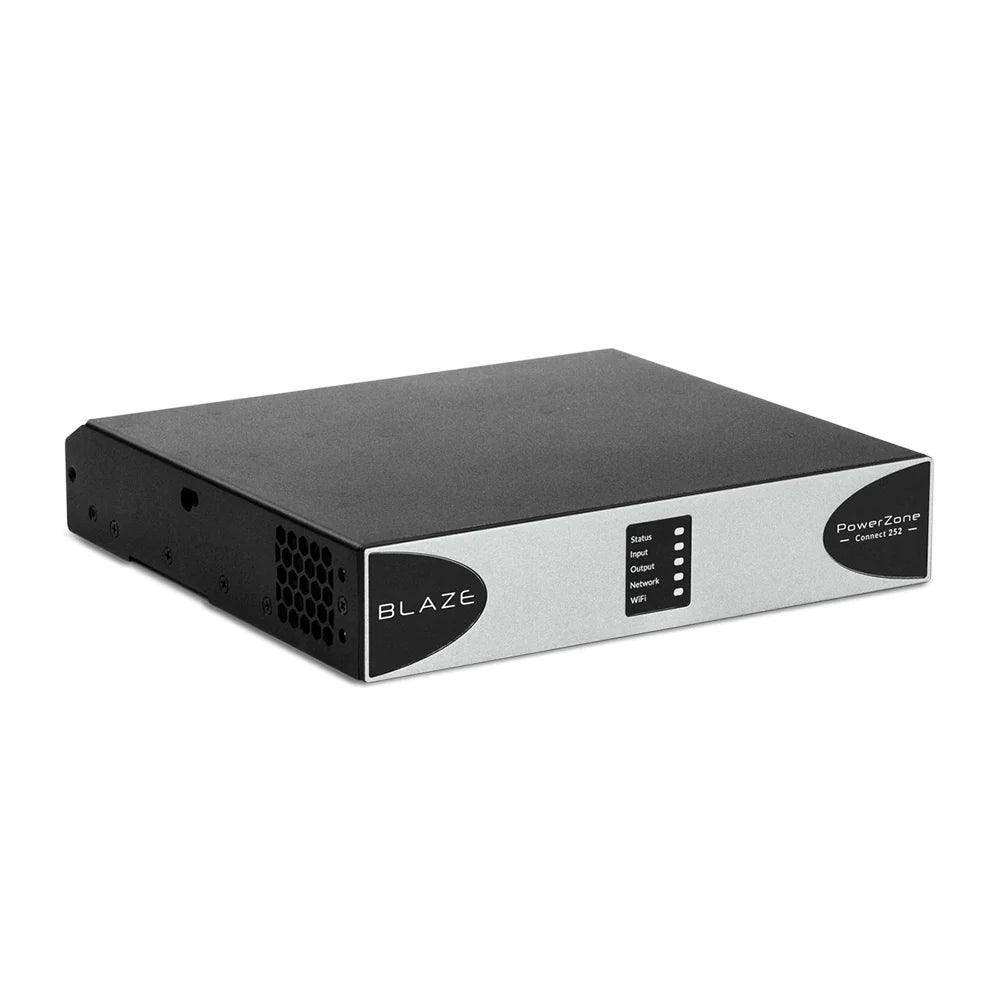

Blaze Audio PowerZone Connect 252 - Compact 2 x 125W Install Power Amplifier - UBX-888-010

Save 16%
Blaze Audio SKU: UBX-888-010
No reviews

Sale price$799.00 Regular price$950.00


The PowerZone Connect 252 is a compact DSP amplifier in a half rack, 1U format. It’s network-connected, giving wired or wireless access to the PowerZone Control web app’s system setup and audio configuration menu. From here you can manage inputs/outputs, control sound zones and access professional tuning settings – all helping achieve impressive sound in the shortest time possible.

It can drive both conventional low impedance (4Ω to 16Ω) loudspeakers and constant voltage (70V/100V) transformer coupled loudspeakers. With four analogue inputs, and one stereo digital input, it has flexible output options – 2 x 125W in Lo-Z mode and 1 x 250W in Hi-Z mode. Automatic power sharing technology enables total available power to be shared proportionately between the outputs.

  • DSP – full matrix DSP embedded and controlled via TCP/IP
  • Targeted Constant Voltage – Optimal hybrid of Lo-Z and Hi-Z performance
  • Master / Slave functionality – S/PDIF link to multiple amps
  • Power share – Support power sharing up to 250W per channel
  • Market proven reliability – Based on Pascal’s proven technologies
  • UREC™ universal power supply with PFC

Possible Applications:

  • Bars and Cafes
  • Restaurants
  • Retail stores
  • Fitness Centres
  • Hotels and Education Sites
  • Corporate
  • House of Worship

PowerZone Control
You can set up and control any PowerZone Connect DSP amplifier using your phone, tablet, or PC with the smart PowerZone Control Web App.

System integrators now have the freedom to manage even the most complex install projects with our dedicated PowerZone Control web app. Configure everything from your phone, or any other device of your choice. Simply connect through the amplifier’s built-in Wi-Fi, or direct via the network port.

PowerZone Control makes life easier - thanks to its intuitive interface giving access first to the basic system set up, and then the advanced configuration and professional tuning settings. It allows you to create the most impressive multizone sound system, in the least amount of time.

Total System Power 250 W
Output Power @ 4/8Ω 2 x 125 W
Output Power @ 70/100V 1 x 250 W
Powershare (up to)
Across all channels
1 x 250 W
Power Consumption 75W
Dimensions 44 x 220 x 213 mm
(1.7 x 8.7 x 8.4 in)
Weight 2kg (4.4 lbs)
Output Circuitry UMAC™ Class D - full bandwidth PWM modulator with ultra-low distortion
Output Voltage 70Vp / 140Vpp (unloaded) // Bridged 140Vp / 280 Vpp (unloaded)
Signal To Noise-Ratio Over 106dB (A-weighted, 20Hz-20kHz, 8Ω load)
THD+N (typical) Under 0.05% (20Hz-20kHz, 8Ω load, 3dB below rated power)
Frequency Response 20Hz-20kHz (+0/-0.25dB (8Ω load, 3dB below rated power)
Protection Circuits Short circuit -, DC -, Undervoltage -, Temperature - and Overload protection
Power Supply UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter
Operating temperature 0-40°C
Operating Voltage/Frequency Universal Mains, 100V-240V, 50Hz-60Hz
Standby Consumption 0.5W
Optional Accessories 2x Rack ears
1x ½ rack plate extension
2x ½ rack mounting
2x Rear supports
Power Ratings 1% THD @ 120Vac and 230Vac
