Blaze Audio PowerZone Connect 2004D - 2000W max 4-channel Dante-enabled networkable matrix smart amplifier - LBX-888-007

Product Overview

The Blaze by Sonance PowerZone Connect 2004D is a DSP-enabled Class-D install amplifier combining 2000W of output across four channels with Dante network audio and full matrix DSP in a 2U rack-mount chassis. Designed for distributed commercial audio installations where IP audio transport, per-channel signal processing, and remote system management are required, it gives AV integrators a single-unit solution that replaces separate amplifier, DSP, and audio network interface hardware. As a Dante-enabled commercial amplifier, the 2004D routes audio over existing IP network infrastructure, reducing cable requirements and simplifying system architecture in multi-zone commercial audio deployments. It is managed remotely via PowerZone Control software, giving facility staff and AV technicians access to configuration and monitoring from any networked device.

Product Description

Rated at 4 x 500W into 4Ω, the PowerZone Connect 2004D delivers 2000W total across four independent channels — sufficient output for mid-to-large commercial venues with distributed speaker systems. The Class-D design ensures high efficiency, keeping thermal output low in equipment rooms and reducing energy consumption for installations that run continuously. Dante network audio transport operates over the same IP infrastructure used for Ethernet management, allowing audio signals to be sourced from any Dante-enabled device on the network and routed with sub-millisecond latency.

Onboard matrix DSP provides per-channel parametric EQ, delay, limiting, and crossover filtering, configured and stored via PowerZone Control without requiring outboard signal processing equipment. This significantly simplifies rack design and reduces the total installed cost for multi-zone audio systems. The 10/100 Ethernet port supports both Dante audio transport and network management simultaneously, and the PowerZone Control web and app interface allows real-time monitoring and adjustment from any device on the facility network.

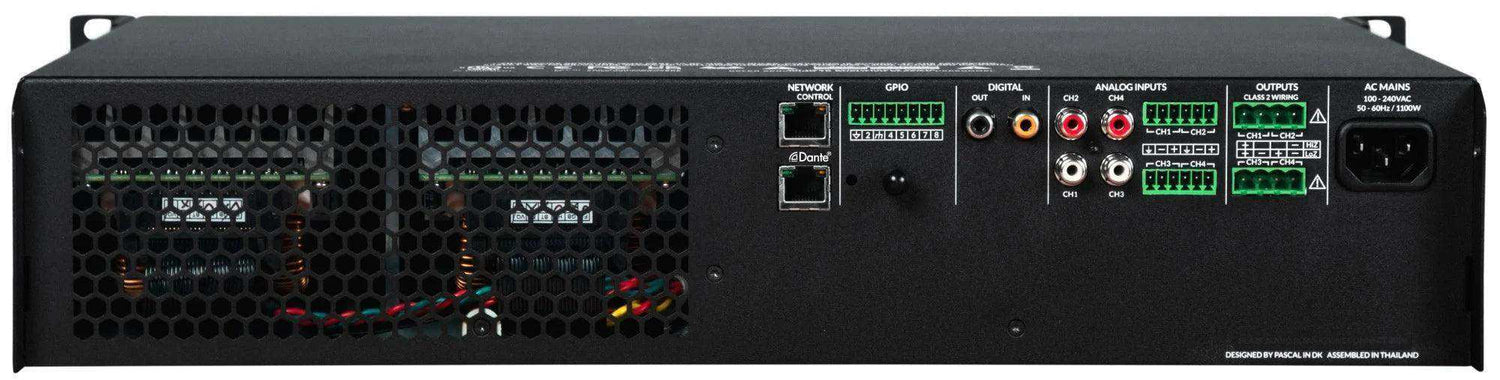

Balanced XLR/TRS combo inputs provide an analog fallback path when Dante sources are unavailable or as a secondary input for system redundancy. Euroblock speaker outputs deliver secure, permanent connections to distributed speaker loads. The universal 100–240V power supply makes the 2004D suitable for international commercial installations. For system integrators specifying amplification for corporate, hospitality, worship, or education environments, the 2004D is available through Creation Networks' Blaze by Sonance product line.

Key Features

• 2000W Total Output Power — Four channels at 500W each into 4Ω for mid-to-large commercial audio zones.
• Dante Network Audio — AES67-compatible transport routes audio over IP infrastructure, reducing analog cable requirements across the facility.
• Onboard Matrix DSP — Per-channel EQ, delay, limiting, and crossover processing built in for complete signal management without external hardware.
• PowerZone Control Software — Web and app-based remote management for configuration, preset recall, and live monitoring.
• 10/100 Ethernet — Single network connection supports both Dante audio transport and IP management.
• Class-D Efficiency — Reduces heat output and power draw compared to traditional amplifier designs, lowering operating costs.
• Balanced XLR/TRS Combo Inputs — Analog input path for systems not using Dante or as a backup source.
• Euroblock Speaker Outputs — Secure, vibration-resistant terminations for permanent commercial installation.
• 2U Rack-Mount Form Factor — Space-efficient chassis for equipment rooms where rack density matters.
• Universal Power Supply (100–240V) — Supports global deployment without voltage conversion hardware.

Typical Applications

• Houses of worship with distributed zone audio
• Corporate conference rooms and boardrooms
• Multi-purpose commercial meeting spaces
• Training rooms and education facilities
• Auditoriums requiring multi-zone amplification
• All-hands and town hall meeting rooms
• Commercial venues with existing Dante AV infrastructure
• Hospitality and retail audio systems

Technical Specifications

For complete specifications, refer to the official Blaze Audio datasheet.

Frequently Asked Questions

How does the 2004D differ from the 2004?

The 2004D adds Dante network audio transport to the 2004's feature set. Both models share identical output power (2000W, 4 x 500W @ 4Ω), onboard matrix DSP, and PowerZone Control management. The 2004D is specified when IP audio routing is part of the system design; the 2004 uses analog inputs only.

Does the 2004D work with existing Dante devices from other manufacturers?

Yes. Dante is an open networking standard. The 2004D is compatible with Dante-enabled devices from Yamaha, Shure, QSC, Biamp, and many others. Routing is managed through the free Dante Controller application from Audinate.

Can I use both Dante and analog inputs simultaneously?

Input source selection per channel is managed through PowerZone Control. Refer to the Blaze Audio datasheet for specific input routing and priority configurations available in the current firmware.

What network requirements does the 2004D have?

The amplifier requires a 10/100 Ethernet connection to a managed or unmanaged network switch. For Dante audio, a network with Quality of Service (QoS) configuration is recommended to prioritize audio traffic and maintain low-latency performance across the facility.

How many presets can be stored on the 2004D?

Preset storage capacity is specified in the official Blaze Audio datasheet. PowerZone Control allows presets to be named, saved, and recalled remotely, supporting multiple operating scenarios such as speech, music, or emergency modes.

Is the 2004D suitable for 70V/100V distributed speaker systems?

Refer to the official Blaze Audio datasheet for supported output configurations. Contact a Creation Networks specialist for guidance on matching the amplifier to constant-voltage speaker systems.

What warranty and support are provided?

Blaze by Sonance products carry manufacturer warranty coverage. Creation Networks provides pre-sale technical support and post-installation assistance for commercial AV integrators.
