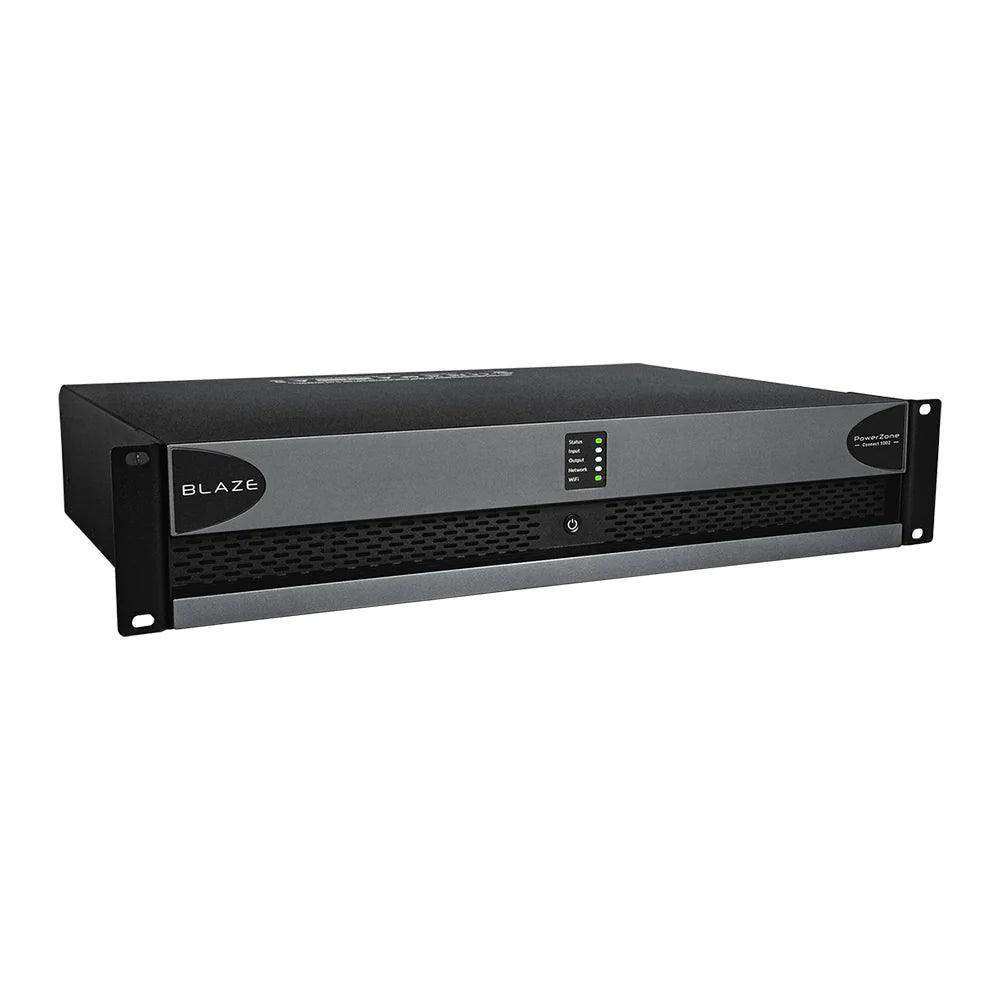

Blaze Audio PowerZone Connect 1002 - Networkable 2-Channel Install Power Amplifier - LBX-888-001

Product Overview

The Blaze by Sonance PowerZone Connect 1002 is a 2-channel, 1000W DSP-enabled Class-D install amplifier designed for commercial audio installations requiring reliable multi-zone amplification, onboard signal processing, and IP-based remote management in a compact 2U rack-mount chassis. As an entry point in the PowerZone Connect series, it delivers the same networkable install power amplifier architecture — onboard matrix DSP, PowerZone Control software, and 10/100 Ethernet connectivity — as its higher-powered siblings, at a lower price and power level suited to smaller zones or budget-conscious commercial AV deployments. With 2 x 500W into 4Ω, the 1002 covers smaller conference rooms, supplemental zones, and moderate-SPL commercial audio applications where a full-featured DSP amplifier is needed without the overhead of a four-channel unit.

Product Description

The PowerZone Connect 1002 delivers 2 x 500W into 4Ω, totaling 1000W across two independently controlled and processed channels. Its Class-D design keeps the amplifier running efficiently with low heat output, making it suitable for small equipment closets or compact rack installations where ventilation is limited. Onboard matrix DSP provides per-channel parametric EQ, delay, limiting, and crossover filtering — all managed via PowerZone Control — so no external DSP processor is required in the signal chain.

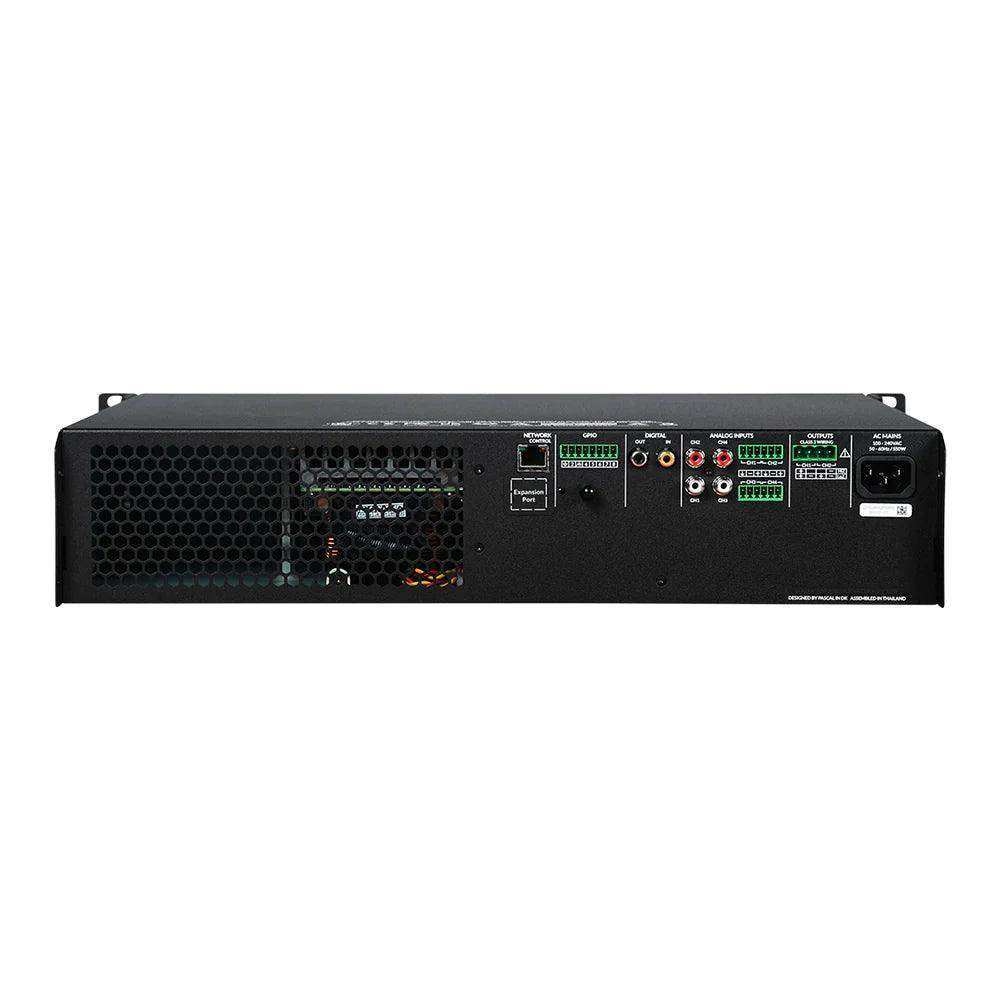

The 10/100 Ethernet port connects the 1002 to the facility's IP network for remote management through PowerZone Control's web interface or mobile app. Configuration changes, preset switching, and amplifier status monitoring can all be performed from any networked device, which simplifies ongoing system maintenance and reduces service call requirements for minor adjustments. Balanced XLR/TRS combo inputs accept standard professional line-level signals, and Euroblock speaker outputs provide secure terminations for permanent speaker wiring.

The 1002 fits naturally into multi-amplifier system designs where different zones have different power requirements — using a 1002 for a smaller breakout room alongside a higher-powered model for a main space allows integrators to right-size amplification per zone within a consistent management ecosystem. The universal 100–240V power supply supports international installations. The 1002 is available through Creation Networks' Blaze by Sonance product line alongside the full PowerZone Connect series.

Key Features

• 1000W Total Output Power — Two channels at 500W each into 4Ω for smaller commercial zones and supplemental audio applications.
• 2-Channel Architecture — Independent channel control for two-zone commercial audio or stereo/dual-mono operation.
• Onboard Matrix DSP — Per-channel EQ, delay, limiting, and crossover processing built in, no external DSP hardware required.
• PowerZone Control Software — Web and app-based remote management integrating all PowerZone Connect amplifiers under a single interface.
• 10/100 Ethernet Connectivity — IP management via standard network infrastructure, no proprietary controllers needed.
• Class-D Efficiency — Low heat generation and reduced power consumption for always-on commercial installations.
• Balanced XLR/TRS Combo Inputs — Accepts professional analog line-level signals with common-mode noise rejection.
• Euroblock Speaker Outputs — Secure, permanent-installation-grade speaker terminations.
• 2U Rack-Mount Form Factor — Standard chassis fits any 2U rack space; consistent form factor with the wider PowerZone Connect series.
• Universal Power Supply (100–240V) — Supports domestic and international commercial installations.

Typical Applications

• Small conference rooms and breakout spaces
• Supplemental audio zones in larger commercial facilities
• House of worship lobby and foyer audio
• Training rooms and smaller classrooms
• Boardroom background music and paging zones
• Multi-purpose rooms with moderate audio requirements
• All-hands rooms and smaller meeting facilities
• Commercial retail and hospitality background audio zones

Technical Specifications

For complete specifications, refer to the official Blaze Audio datasheet.

Frequently Asked Questions

How does the 1002 compare to the 1502?

The 1002 and 1502 are both 2-channel networkable install amplifiers with identical DSP and management capabilities. The 1002 delivers 2 x 500W into 4Ω (1000W total), while the 1502 delivers 2 x 750W (1500W total). The 1002 is appropriate for smaller zones or tighter budgets; the 1502 suits applications where higher SPL or greater headroom is needed.

Is the 1002 part of the same PowerZone Control ecosystem as the larger models?

Yes. All PowerZone Connect amplifiers — including the 1002, 1502, 2004, 2004D, 3004, and 3004D — are managed through the same PowerZone Control platform. A multi-amplifier facility can monitor and configure all units from a single interface.

Can the 1002 be used as part of a larger multi-zone system alongside higher-powered models?

Yes. Mixing models within the PowerZone Connect series is a common integration approach, allowing integrators to right-size amplification for each zone. The 1002 and larger models are all managed via the same PowerZone Control software.

What DSP processing is available on each channel?

Each channel includes parametric EQ, high-pass and low-pass filters, delay, and limiting. Settings are configured and stored as presets via PowerZone Control, with recall available remotely from any networked device.

Does the 1002 support constant-voltage (70V/100V) speaker systems?

Refer to the official Blaze Audio 1002 datasheet for supported output configurations. Contact Creation Networks for guidance on matching the amplifier to constant-voltage distributed speaker systems.

What happens to audio if the network management connection is interrupted?

Audio output continues unaffected at the amplifier's last configured settings. The Ethernet connection is used for management and monitoring only — it is not in the audio signal path.

What warranty covers the PowerZone Connect 1002?

Blaze by Sonance products are covered by manufacturer warranty. Creation Networks provides commercial AV integrators with pre-sale technical support and post-sale service assistance. Visit creationnetworks.net for current warranty details and contact information.
