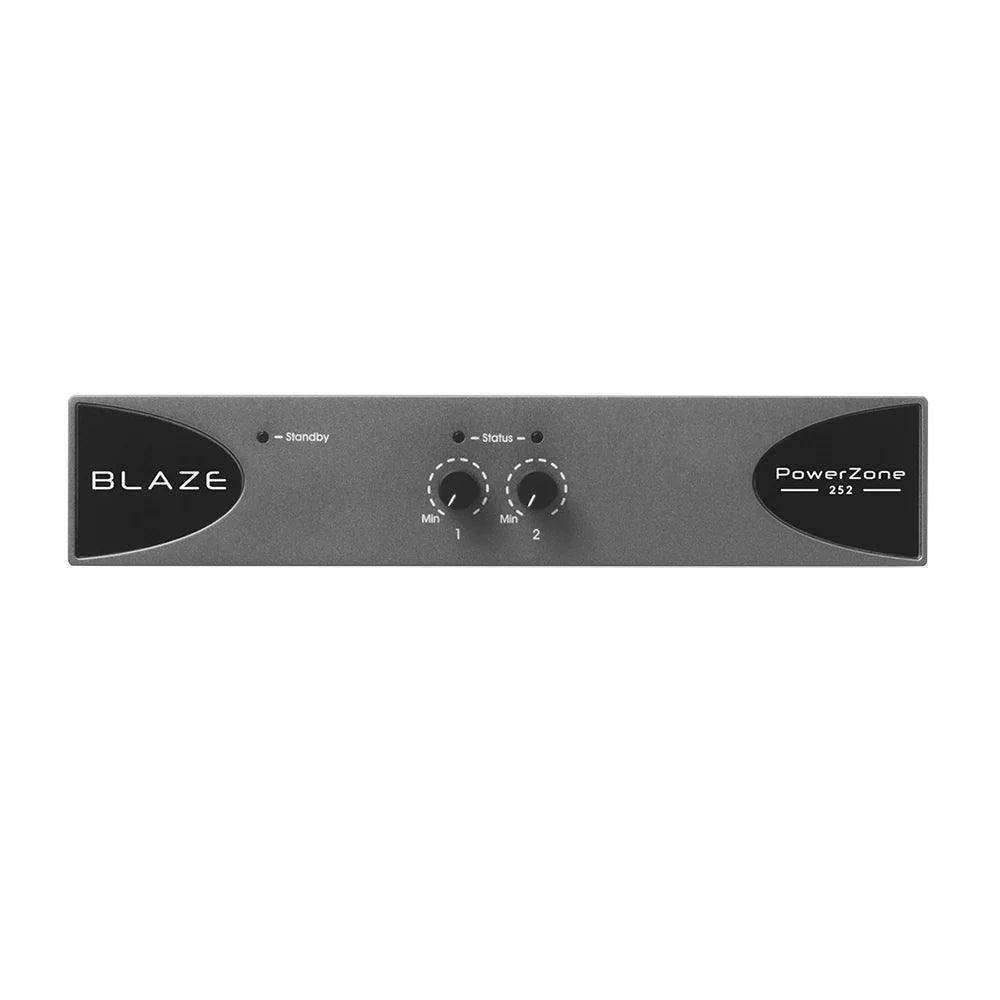

Blaze Audio PowerZone 252 - Compact 2 x 125W Install Power Amplifier - UBX-888-015

Save 18%
Blaze Audio SKU: UBX-888-015
No reviews

Sale price$699.00 Regular price$850.00


The PowerZone 252 is a 2 x 125 Watt power amplifier in a half width, 1U format. It drives both low impedance (4Ω to 16Ω) and constant voltage (70V/100V) loudspeaker loads. Each output channel can be independently configured to drive either Lo-Z or Hi-Z and automatic power sharing enables the total 250 Watts to be shared proportionately across the 2 output channels.

With a small form factor and just 1.9kg – it’s a powerful amplifier for its size and can be installed in locations where others cannot.

  • Configure any output in Low or High impedance – share total power as you need it

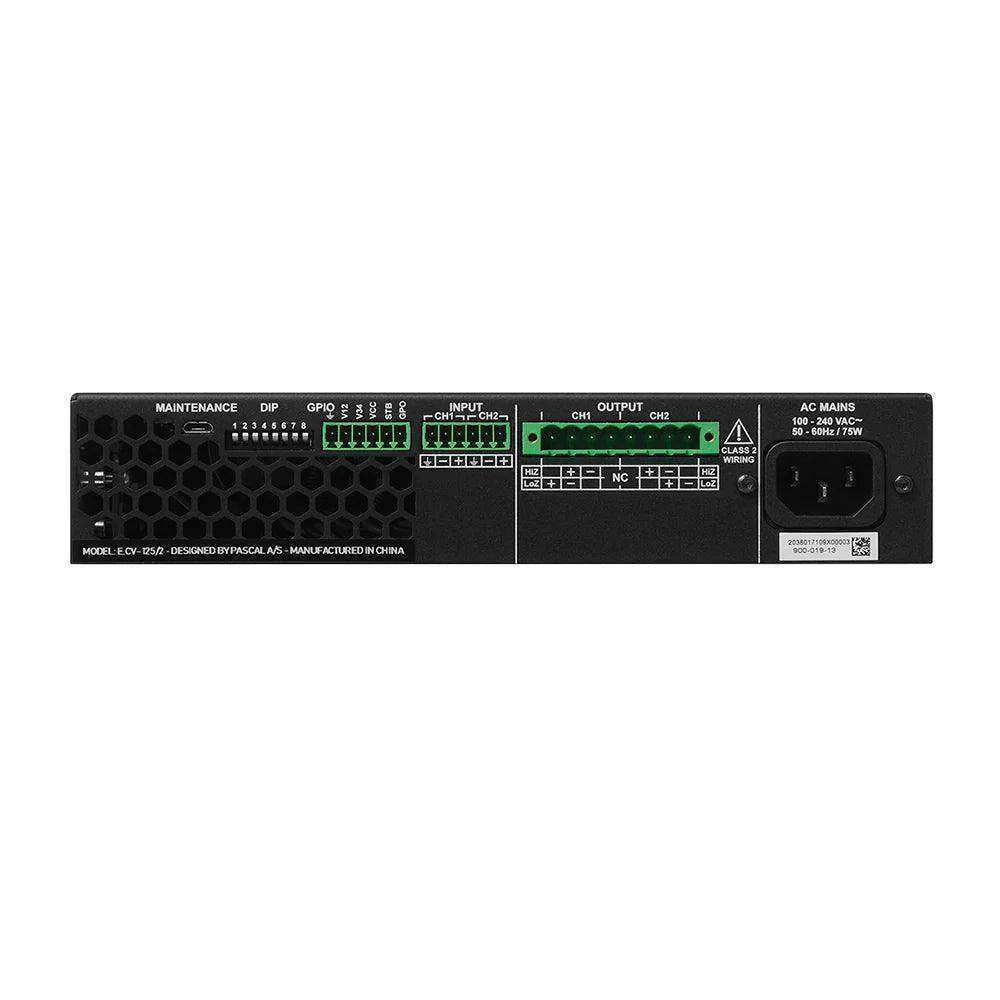

  • DIP Switches allow you to configure on site – with GPIO connectors for external controllers
  • Ultra-compact form factor means it can be installed in spaces where others cannot
  • Class leading energy efficiency and long-term low cost of ownership
  • Powered by Pascal UMAC™ Class-D technology

Possible Applications:

  • Bars and Cafes
  • Restaurants
  • Retail stores
  • Fitness Centres
  • Hotels and Education Sites
  • Corporate
  • House of Worship
Total System Power 250 W
Output Power @ 4/8Ω 2 x 125 W
Output Power @ 70/100V 2 x 125 W
Powershare (up to)
Across all channels
1 x 250 W
Power Consumption 75W
Dimensions 44.5 x 220 x 262 mm
(1.75 x 8.66 x 10.31 in)
Weight 1.9 kg (4.2 lbs)
Output Circuitry UMAC™ Class D - full bandwidth PWM modulator with ultra-low distortion
Output Voltage 70 Vp / 140 Vpp (unloaded) / Bridged 140 Vp / 280 Vpp (unloaded)
Signal To Noise-Ratio Over 100 dB (A-weighted, 20 Hz - 20 kHz, 8 Ω load)
THD+N (typical) Under 0.05 % (20 Hz - 20 kHz, 8 Ω load, 3 dB below rated power)
Frequency Response 20 Hz - 20 kHz (+0/-0.25 dB (8 Ω load, 3 dB below rated power)
Protection Circuits Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection
Power Supply UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and integral standby converter
Operating Voltage/Frequency Universal Mains, 100-240V, 50-60Hz
Standby Consumption 0.5 W (Energy Star / ErP 1275/2008/EC compliant)
Optional Accessories 2x Rack ears (supplied with PowerZone 1004)
1x 1/2 rack plate extension
2x 1/2 rack mounting
2x Rear supports
Power Ratings 1% THD @ 120VAC and 230VAC
