Blaze Audio CBL523-PAS-W – Passive Constant Beamwidth Loudspeaker, White

Product Overview

The Blaze Audio CBL523-PAS-W is a passive 2-way constant beamwidth loudspeaker designed for commercial sound reinforcement in environments where a white finish is specified. Its controlled horizontal coverage pattern delivers consistent audio distribution across the listening area, making it well-suited for restaurants, retail, corporate spaces, and houses of worship. As a commercial AV loudspeaker for install, the CBL523-PAS-W combines pattern precision with a clean white exterior that integrates into bright architectural interiors without visual disruption. It is part of the Blaze by Sonance CBL Series, available from Creation Networks.

Product Description

The CBL523-PAS-W delivers constant beamwidth pattern control in a passive 2-way configuration, offering AV integrators a straightforward, single-channel-per-cabinet solution for large-scale distributed audio systems. Its controlled horizontal coverage eliminates the uneven dispersion common in standard commercial speakers, ensuring every seat in a venue receives consistent, intelligible audio. The passive design is compatible with a wide range of commercial amplifiers, simplifying integration into new and existing signal chains. The white finish blends naturally into ceiling and wall surfaces in modern commercial interiors, conference rooms, hospitality spaces, and worship environments. Surface mount and U-bracket mounting options provide flexibility for positioning at the precise angle required for optimal coverage. Built for continuous commercial operation, the CBL523-PAS-W meets the reliability demands of high-use commercial environments. As a CBL Series model, it benefits from the same engineering approach as the bi-amped CBL528 series while offering a more cost-effective per-cabinet price for high-count deployments. The passive configuration keeps system wiring clean and reduces amplifier channel overhead in large systems. This model is also available in black — see the CBL523-PAS-B at Creation Networks for black-finish installations.

Key Features

• Passive 2-Way Design — Single amplifier channel per cabinet simplifies system wiring and reduces amplifier requirements in large distributed systems.
• Constant Beamwidth Pattern Control — Consistent horizontal coverage across the operating bandwidth minimizes off-axis spill and simplifies coverage planning.
• Wide Amplifier Compatibility — Passive design works with a broad range of commercial AV amplifiers without requiring dedicated bi-amp channels.
• White Architectural Finish — Clean white exterior integrates naturally into light-colored commercial interiors and ceiling installations.

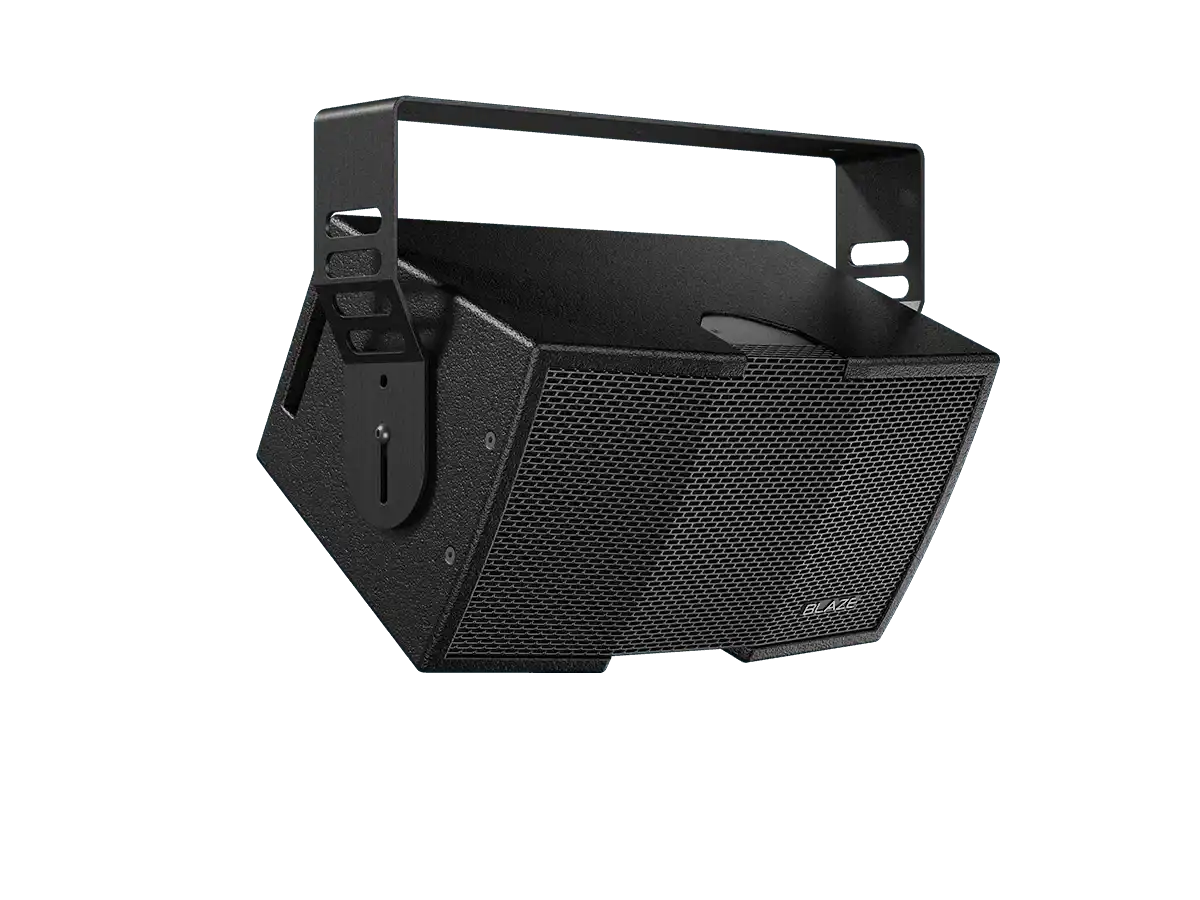

• Surface or U-Bracket Mount — Flexible mounting supports a variety of installation angles and wall or ceiling configurations.
• Commercial-Grade Construction — Built for continuous operation in demanding commercial environments including retail, hospitality, and corporate spaces.
• CBL Series Lineage — Part of the Blaze by Sonance CBL Series, engineered for professional commercial AV installation.
• Cost-Effective for Large Systems — Passive operation makes the CBL523-PAS-W well-suited to high cabinet count distributed audio systems.

Typical Applications

• House of worship
• Commercial meeting space
• Auditorium
• Multi-purpose room
• Training room
• Conference room
• Boardroom

Technical Specifications

Refer to the official Blaze by Sonance datasheet for complete technical specifications including frequency response, SPL ratings, and impedance data.

Frequently Asked Questions

What amplifier is recommended for the CBL523-PAS-W?
The CBL523-PAS-W is a passive loudspeaker and accepts a single amplifier channel. Consult the Blaze by Sonance datasheet for impedance and power handling specifications to select an appropriate commercial amplifier.

Does the CBL523-PAS-W require a DSP processor?
While not strictly required, using a DSP processor for system tuning is best practice in commercial AV installations. The passive design is compatible with standard commercial DSP platforms.

Can the CBL523-PAS-W be used alongside CBL528 bi-amped models?
Yes. Both models are part of the CBL Series and can be deployed together for main coverage, delays, or fills within the same system.

What mounting hardware is included?
The CBL523-PAS-W supports surface mount and U-bracket mounting. Contact Creation Networks or review the product datasheet to confirm included hardware and accessory bracket options.

Is the CBL523-PAS-W available in black?
Yes. The black-finish version is the CBL523-PAS-B (SKU: FGM-888-008), also available at Creation Networks.

What warranty does Blaze by Sonance provide?
Contact Creation Networks for current warranty terms and authorized service information for Blaze by Sonance products.

Where can I get technical support?
Technical support is available through Creation Networks. Contact the team for commissioning assistance, system design questions, or warranty claims.
