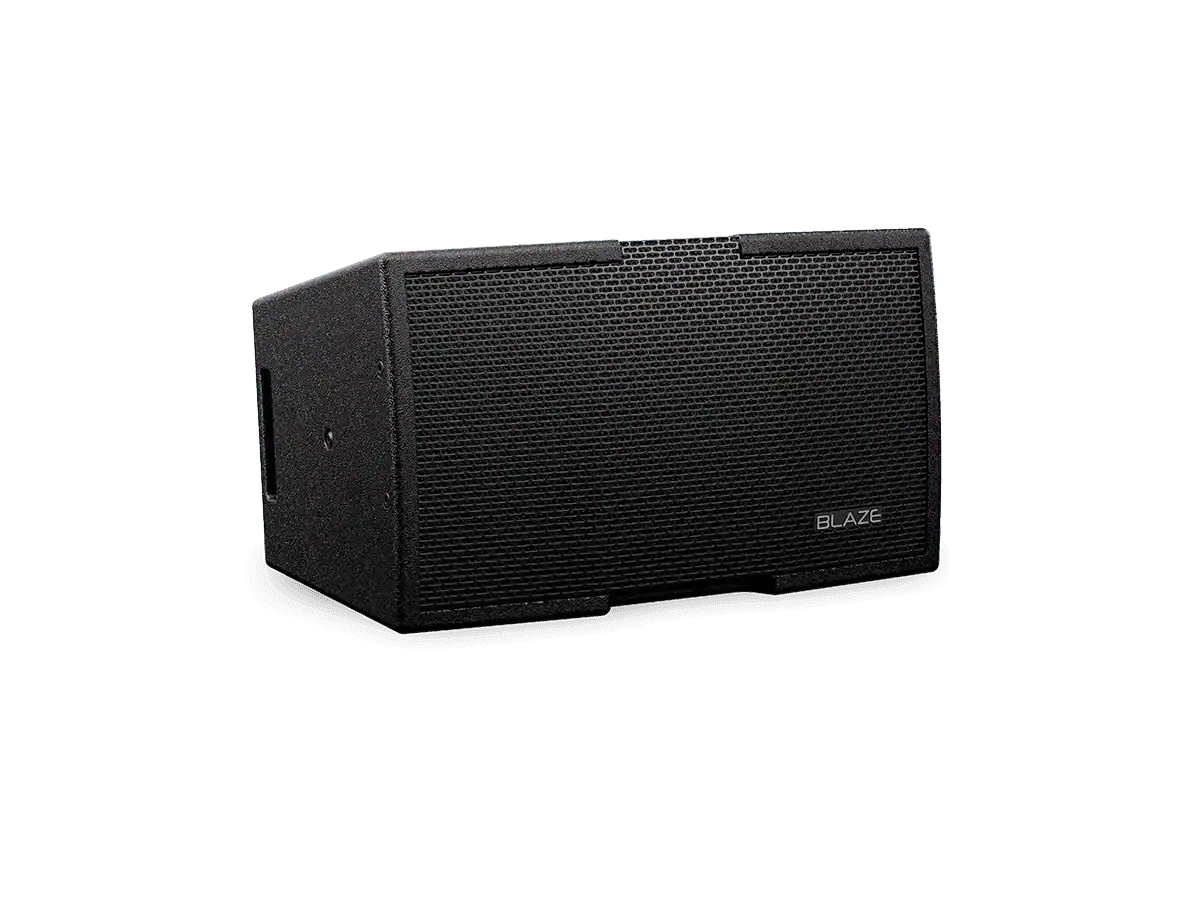

Blaze Audio CBL523-PAS-B – Passive Constant Beamwidth Loudspeaker, Black

Product Overview

The Blaze Audio CBL523-PAS-B is a passive 2-way constant beamwidth loudspeaker designed for commercial sound reinforcement in a wide range of install environments. Its controlled horizontal coverage pattern ensures consistent audio distribution across the listening area, making it a reliable choice for restaurants, retail, corporate spaces, and houses of worship. As a commercial AV loudspeaker for install, the CBL523-PAS-B offers the pattern control and build quality of the CBL Series at a price point suited to larger distributed systems. It is part of the Blaze by Sonance CBL Series, available from Creation Networks.

Product Description

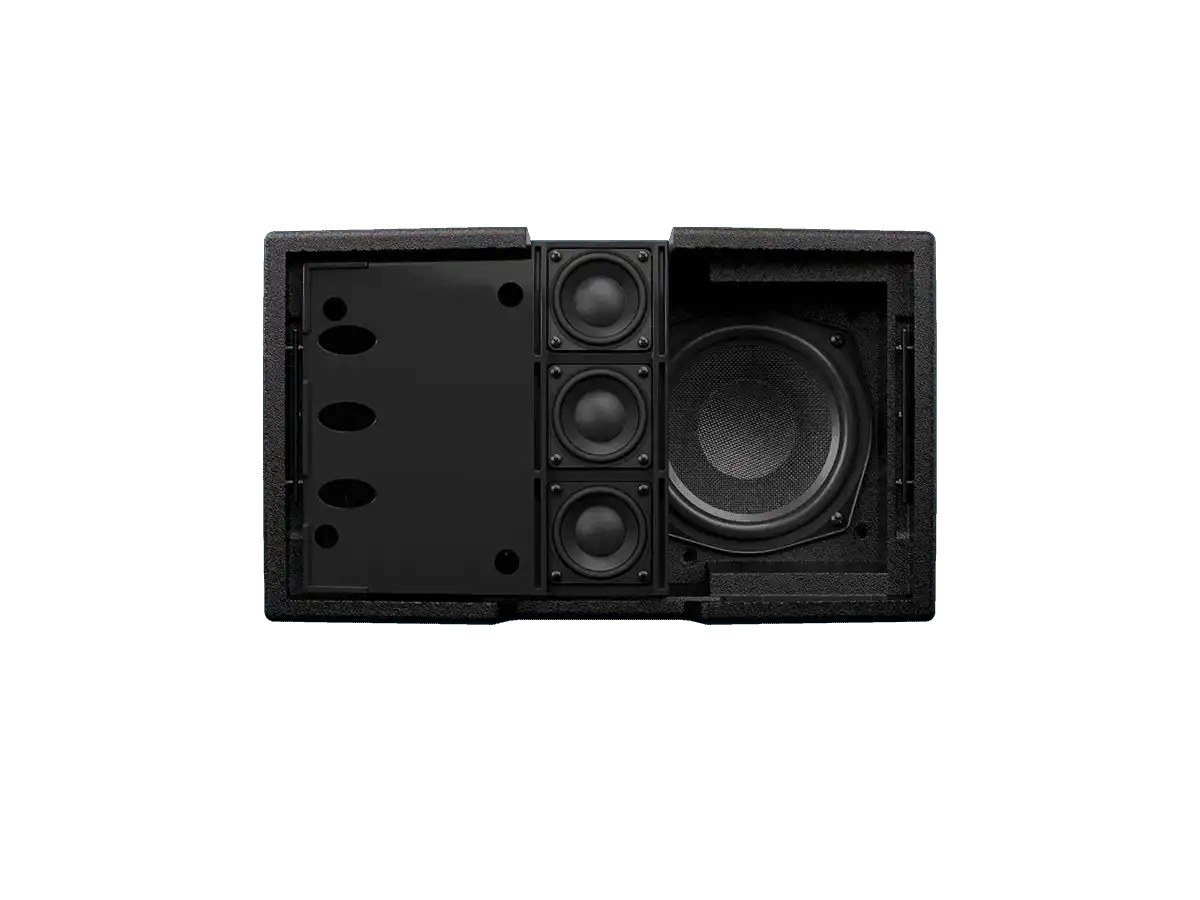

The CBL523-PAS-B delivers constant beamwidth pattern control in a passive 2-way configuration, simplifying system design for installations where a single amplifier channel per cabinet is preferred. Its controlled horizontal coverage pattern eliminates the inconsistent dispersion that plagues conventional commercial loudspeakers, enabling AV integrators to achieve even coverage across seating areas and high-traffic zones. The passive design is compatible with a broad range of commercial amplifiers, making it easy to integrate into existing signal chains or new installations. The black finish provides a discreet, architectural appearance suitable for commercial interiors where hardware visibility must be minimized. Surface mount and U-bracket options give installers flexibility to position the speaker at the correct angle for optimal coverage without compromise. The CBL523-PAS-B is built for continuous commercial operation, with the reliability expected in hospitality, retail, and corporate environments. As part of the CBL Series, it shares the same commitment to precision dispersion and professional construction as the bi-amped CBL528 models. The passive configuration also makes it a cost-effective solution for systems requiring a high cabinet count without proportionally increasing amplifier complexity. This model is also available in white — see the CBL523-PAS-W at Creation Networks for white-finish installations.

Key Features

• Passive 2-Way Design — Single amplifier channel per cabinet simplifies system wiring and reduces amplifier channel requirements in large distributed systems.
• Constant Beamwidth Pattern Control — Consistent horizontal coverage across the operating bandwidth minimizes off-axis spill and simplifies venue coverage planning.
• Wide Amplifier Compatibility — Passive design works with a broad range of commercial AV amplifiers without requiring dedicated bi-amp channels.
• Black Architectural Finish — Discrete matte black exterior integrates into commercial interiors without drawing visual attention.

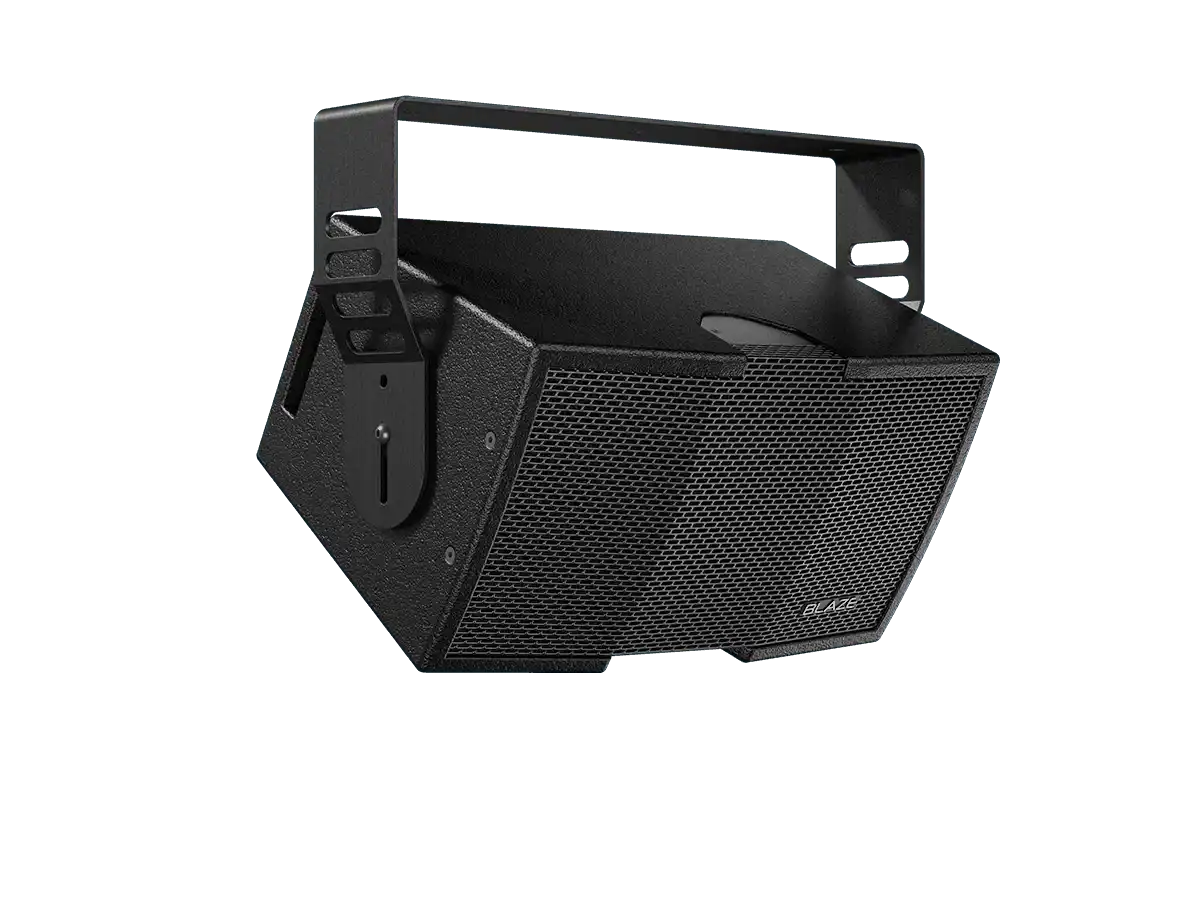

• Surface or U-Bracket Mount — Flexible mounting supports a variety of installation angles and wall or ceiling configurations.
• Commercial-Grade Construction — Built for continuous operation in demanding commercial environments including retail, hospitality, and corporate spaces.
• CBL Series Lineage — Part of the Blaze by Sonance CBL Series, engineered for professional commercial AV installation.
• Cost-Effective for Large Systems — Passive operation makes the CBL523-PAS-B well-suited to high cabinet count distributed audio systems.

Typical Applications

• House of worship
• Commercial meeting space
• Auditorium
• Multi-purpose room
• Training room
• Conference room
• Boardroom

Technical Specifications

Refer to the official Blaze by Sonance datasheet for complete technical specifications including frequency response, SPL ratings, and impedance data.

Frequently Asked Questions

What amplifier is recommended for the CBL523-PAS-B?
The CBL523-PAS-B is a passive loudspeaker and accepts a single amplifier channel. Consult the Blaze by Sonance datasheet for impedance and power handling specifications to select an appropriate commercial amplifier.

Does the CBL523-PAS-B require a DSP processor?
While not strictly required, using a DSP processor for system tuning and equalization is best practice in commercial AV installations. The passive design is compatible with standard commercial DSP platforms.

Can the CBL523-PAS-B be used alongside CBL528 bi-amped models?
Yes. Both models are part of the CBL Series and can be deployed together within the same system for main coverage, delays, or fills.

What mounting hardware is included?
The CBL523-PAS-B supports surface mount and U-bracket mounting. Contact Creation Networks or review the datasheet to confirm included hardware and available accessory brackets.

Is the CBL523-PAS-B available in white?
Yes. The white-finish version is the CBL523-PAS-W (SKU: FGM-888-009), also available at Creation Networks.

What warranty does Blaze by Sonance provide?
Contact Creation Networks for current warranty terms and authorized service information for Blaze by Sonance products.

Where can I get technical support?
Technical support is available through Creation Networks. Contact the team for commissioning assistance, system design questions, or warranty claims.
