Blackmagic Design Videohub Smart Control Pro – Router Control Panel
Product Overview
The Blackmagic Design Videohub Smart Control Pro is a 1RU hardware router control panel with 48 programmable buttons for switching sources and destinations on a Videohub routing system over Ethernet. Designed for both large broadcast systems and portable racks, it gives operators dedicated push-button control of live routing without a computer. Ten assignable macro buttons and power-fail protection make it a dependable broadcast routing control panel for permanent installs and mobile productions.
Product Description

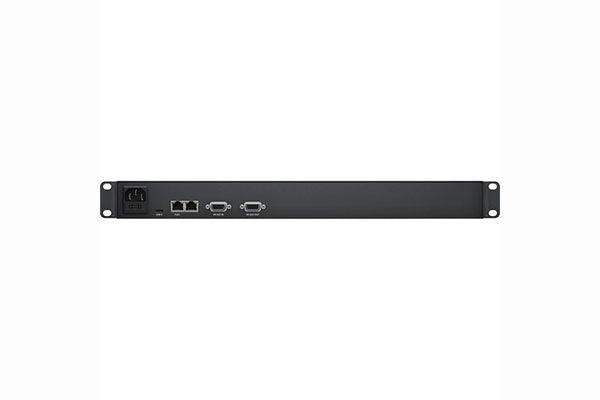

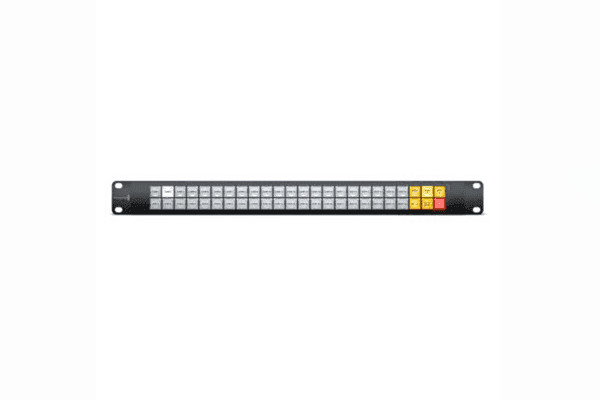

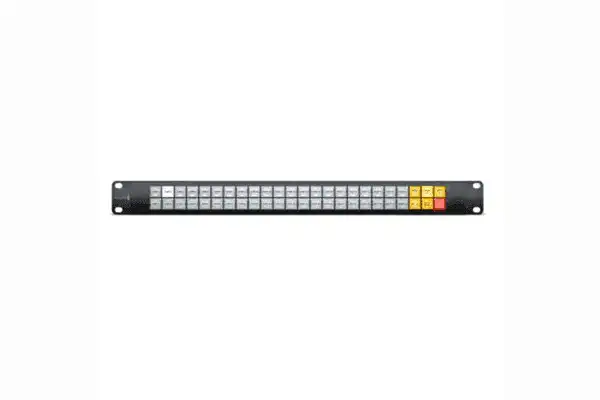

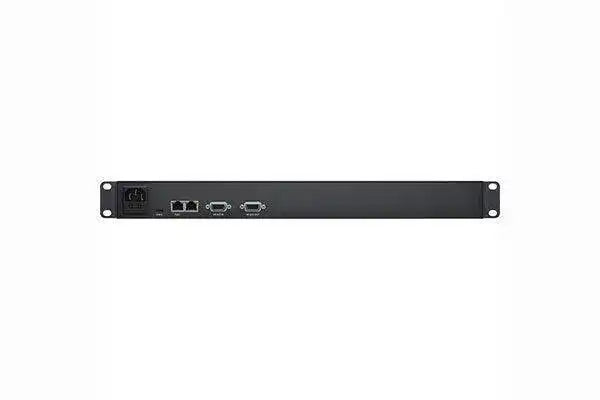

The Videohub Smart Control Pro is a rack-mount router control panel that drives source and destination routing on a network. Forty-eight push buttons on the front panel are configured for sources and destinations, alongside ten assignable macro buttons and several configuration buttons, all programmed over USB with the included Mac and Windows software. Power-fail protection preserves button configurations if power is lost, so the panel returns to its programmed state after an outage. On the rear, an RJ45 Ethernet input with PoE both connects to the routing network and powers the unit, or it can be powered with a separately available C13 cable; an Ethernet loop output (without PoE) communicates with destinations. Two RS-422 ports are present for future implementation, and a USB Type-C port handles software configuration and firmware updates. In a 1RU frame, this 48-button source/destination router control panel fits standard broadcast racks and portable production cases alike.
Key Features
- 48 programmable buttons — Dedicated front-panel control of routing sources and destinations.
- 10 macro buttons — Assignable macros for one-press routing changes and routines.
- PoE over Ethernet — A single RJ45 connection carries control data and powers the panel.
- Power-fail protection — Retains button configurations through a power loss.
- Ethernet loop output — Passes communication through to destinations (without PoE).
- RS-422 in/out — Two RS-422 ports included for future implementation.
- USB-C configuration — Programmed via included software on macOS and Windows, with USB-C firmware updates.
- 1RU rack-mount — Fits standard broadcast racks and portable production rigs.
Typical Applications
- Broadcast studio — Operator routing control in master control and production galleries.
- Auditorium — Push-button source/destination switching for live events.
- Government space — Routing control for council chambers and command/control AV rooms.
Technical Specifications
| Control Buttons | 48 programmable, 10 macro, plus configuration buttons |
| Inputs | 1× RJ45 Ethernet with PoE, 1× RS-422, 1× USB-C |
| Outputs | 1× RJ45 Ethernet (loop, no PoE), 1× RS-422 |
| Configuration | USB 2.0 Type-C |
| OS Compatibility | macOS 10.13/10.14+, Windows 10 |
| Power | PoE or C13 (100–240 VAC); power-fail protection |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Rack Space | 1 RU |
| Dimensions | 19 × 1.7 × 4.4" / 48.3 × 4.3 × 11.2 cm |
| Weight | 2.2 lb / 1 kg |
Frequently Asked Questions
How is it powered?
Over PoE through the rear RJ45 Ethernet input, or with a separately available C13 power cable (100–240 VAC).
What does it control?
Source and destination routing on a Videohub routing system over Ethernet, using 48 programmable buttons and 10 macros.
What happens to my configuration if power is lost?
Power-fail protection preserves the button configuration, so the panel restores its programmed state when power returns.
How is it programmed?
Through the included Videohub control software for macOS and Windows over the USB Type-C port, which also handles firmware updates.
