Blackmagic Design Videohub Master Control Pro – Router Control Panel
Product Overview
The Blackmagic Design Videohub Master Control Pro is a network router control panel with 21 programmable buttons for routing sources and destinations over Ethernet. Housed in a 1 RU frame, it suits both large broadcast systems and portable racks for routing live productions, with a front-panel scroll wheel, LCD, and power-fail protection that preserves button configurations.
Product Description

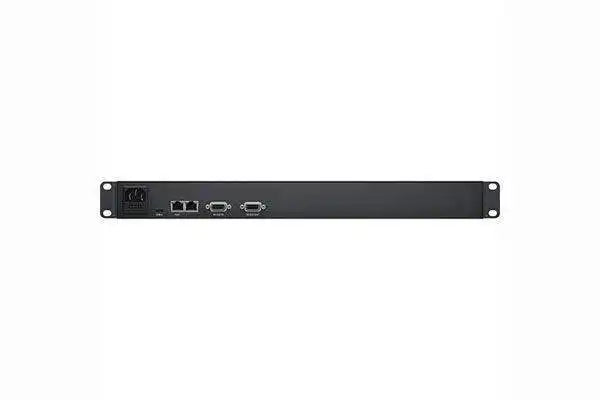

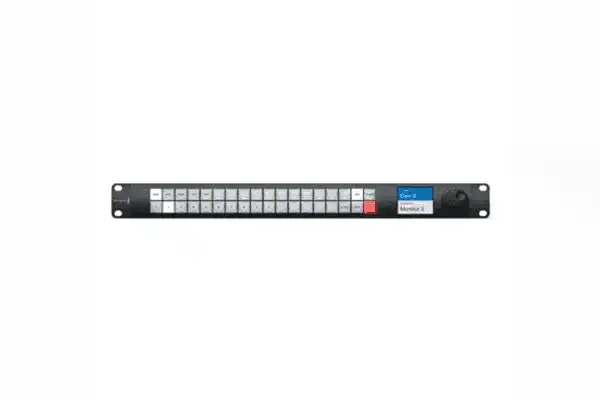

The Videohub Master Control Pro gives operators direct hardware control over a Videohub router. Simple push buttons on the front are configured to control source and destination, alongside a scroll wheel, an LCD information screen, and several configuration buttons. Buttons are programmed over USB Type-C using the included Mac and Windows software, and power-fail protection preserves your button configurations if power is lost. The rear features an RJ45 Ethernet input with PoE to connect your sources and power the unit (or it can be powered with a separately available C13 power cable), plus an Ethernet loop output without PoE to communicate with destinations. Two RS-422 input and output ports are provided for future implementation, and a USB Type-C port handles software configuration and firmware upgrades. The 1 RU chassis fits standard racks and runs on 100–240V AC.
Key Features
- 21 programmable buttons — Map sources and destinations for fast routing.
- Scroll wheel and LCD — Front-panel navigation and an information display.
- Ethernet control — RJ45 input with PoE plus a loop output to destinations.
- Power-fail protection — Preserves button configurations when power is lost.
- RS-422 I/O — Input and output ports for future implementation.
- USB-C configuration — Program buttons and update firmware via included software.
- Flexible power — PoE or a separately available C13 power cable.
- 1 RU chassis — Fits broadcast systems and portable racks.
Typical Applications
- Broadcast studio — Hardware router control at production and master-control positions.
- Auditorium — Source/destination routing for large-venue live production.
- House of worship — Operator control of multi-camera routing during services.
Technical Specifications
| Model | VHUB/WMSTRCRL/PRO |
| Controls | 21 programmable buttons; scroll wheel; LCD |
| Inputs | 1× RJ45 Ethernet (PoE); 1× RS-422; 1× USB-C |
| Outputs | 1× RJ45 Ethernet (loop); 1× RS-422 |
| Configuration | USB-C; Mac/Windows software |
| Power | PoE or C13 (100–240 VAC) |
| Rack Space | 1 RU |
| Dimensions | 19 × 1.7 × 4.6" / 48.3 × 4.3 × 11.7 cm |
| Weight | 2.2 lb / 1 kg |
Frequently Asked Questions
What does it control?
It's a hardware control panel for routing sources to destinations on a Videohub router over Ethernet.
How are the buttons programmed?
Over USB Type-C using the included Mac and Windows Videohub software; configurations are preserved by power-fail protection.
How is it powered?
Via PoE over the Ethernet input, or with a separately available C13 power cable (100–240V AC).
What are the RS-422 ports for?
The unit includes RS-422 input and output ports provided for future implementation.
