Blackmagic Design Video Assist 7'' 3G - HYPERD/AVIDA03/7

Blackmagic Design SKU: HYPERD/AVIDA03/7
No reviews

Price:
Sale price$765.00

Description

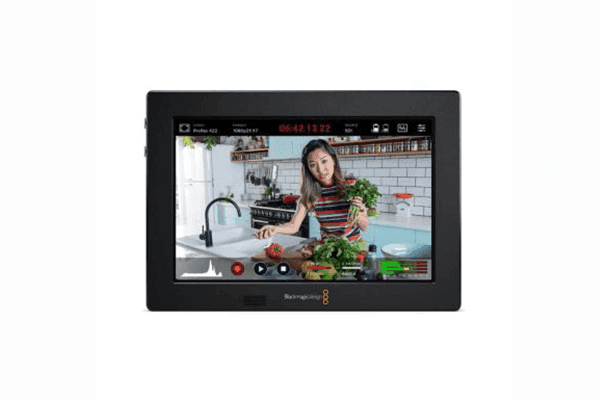

Blackmagic Design Video Assist 7'' 3G

Blackmagic Video Assist 7” 3G is a portable monitor, a professional recorder, a portable scope and a fantastic camera viewfinder solution! You can also add better quality record codecs and a larger monitor to any SDI or HDMI camera! The new design has innovations such as 4 built in scopes, enhanced focus assist features, a tally indicator and built in 3D LUTs. The Video Assist 7” 3G support formats up to 1080p60 and the new design also has L-Series batteries for longer life. Blackmagic Video Assist 7” 3G really is 4 products in one!

Transforms Camera Usability with Video Assist!

Traditional cameras are designed for shoulder mounted operation, so are a compromise. Hours spent leaning into a viewfinder for long tripod mounted shoots can be tough! Video Assist will transform your shooting style with an on-board rigged screen. It's much more comfortable using a screen rigged to a position best suited for a shooting setup. Plus you get better situational awareness for the operator, assistant or director. With both 5" and 7" models, you choose the size of a rigged monitor that suits you best. Plus you're also adding fantastic features such as focus zoom, focus peaking, zebras, histogram, false color, scopes, frame markers, frame guides, touch screen and more!

Add professional monitoring and high-quality recording to your camera with the Video Assist 3G-SDI/HDMI 7" Recording Monitor from Blackmagic Design. It features a bright 7", 1920 x 1200 display with 300 cd/m² brightness to help you frame and focus your shots, and it provides 3G-SDI and HDMI inputs for recording the video output from professional and consumer cameras. You can monitor and record video resolutions up to 1080p60 10-bit 4:2:2 and up to 16 channels of embedded 24-bit 48 kHz audio. This monitor also features two balanced 3-pin mini-XLR inputs with 48V phantom power support for crisp audio recording. Firmware update 3.3.1 adds a video output via the USB Type-C port that can be used to convert your connected camera for webcam use. It also adds XLR audio mapping to different channels, XLR external timecode, and select channel selection for audio monitoring.

The Video Assist 3G 7" records to SDXC/SDHC memory cards via dual UHS-I SD card slots. Use the USB Type-C port to record for configuring and upgrading the monitor. Video is recorded using industry-standard Apple ProRes (HQ, 422, LT, or Proxy) and Avid DNxHD codecs.

This monitor's touchscreen interface enables you to adjust settings and access monitoring features such as histogram, waveform, RGB parade, vectorscope, and many more scopes and exposure tools. There is also a tally light on top of the monitor to indicate it is operating and recording. Choose from 11 languages for easier use of on-screen text displays and menu options. Power the monitor using the included 12V power adapter or using separately available Sony L-Series type batteries on the dual battery slots.

Up to 1080p60 Video Supports video formats up to 1080p60 Upgrades Older Camera Viewing/Recording Can be used to upgrade viewing and recording options with older cameras 7" Touchscreen Display 7" touchscreen LCD screen with customizable overlays 3G-SDI and HDMI Input/Loop-Out 3G-SDI and HDMI input ports with loop-through outputs 3D LUT Support 3D LUT support for customized viewing 1080p USB Webcam Output Sends a streaming-friendly 1080p video signal to your computer, enabling the use of your connected camera as a webcam Metadata Entry Direct metadata entry Dual SD Card Slots Dual SD card slots for ProRes recording Image Display Tools Multiple display tools including focus peaking, zebra, and false color Waveform and Vectorscope Waveform, vectorscope, histogram, and RGB parade XLR Audio Mapping XLR audio mapping to different channels XLR Timecode External XLR timecode Selectable Audio Monitoring Ability to select which audio channels you are monitoring
Minimum macOS System Requirements
  • macOS 10.15 Catalina
  • macOS 10.14 Mojave
  • USB 2.0 port for updates
Minimum Windows System Requirements
  • Microsoft Windows 10 64-bit
  • USB 2.0 port
Supported Languages
  • English
  • Chinese
  • French
  • German
  • Italian
  • Japanese
  • Korean
  • Portuguese
  • Russian
  • Spanish
  • Turkish
  • 1920 x 1200 7" Touchscreen LCD
  • HDMI & 3G-SDI Video Inputs/Outputs
  • Records up to 1080p60 Video
  • USB Type-C Webcam Video Output

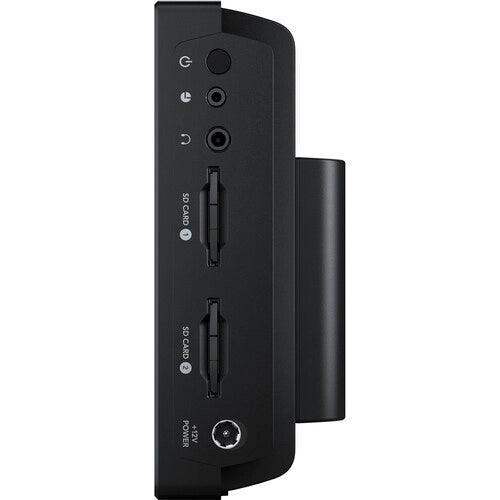

  • Stores to 2 x SDXC/SDHC Memory Cards
  • 2.5mm LANC Port for Record Start & Stop
  • Waveform, Vectorscope & Histogram
  • Focus Peaking, False Color & Zebra
  • 11 x Display Language Options

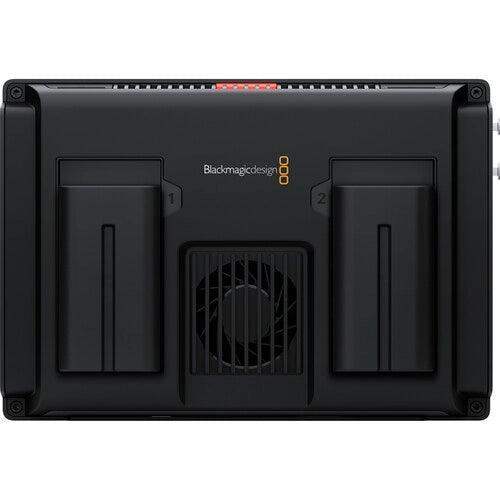

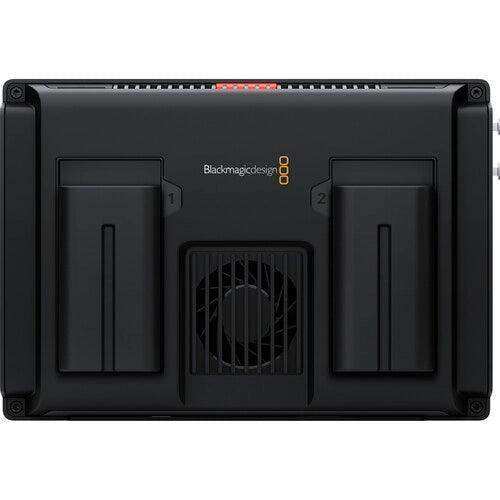

  • Dual Sony L-Series Type Battery Slots

Blackmagic Design Video Assist Specs

Display
Panel Type LCD
Display Size 7.0" / 17.8 cm
Resolution 1920 x 1200
Aspect Ratio 16:9
Viewing Angle Horizontal: 135°
Touchscreen Yes
Maximum Brightness 310 cd/m2
Pixels Per Inch (ppi) 323 ppi
Color Gamut 100% Rec. 709
Real-Time LUT Monitoring SDR
Image Controls Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

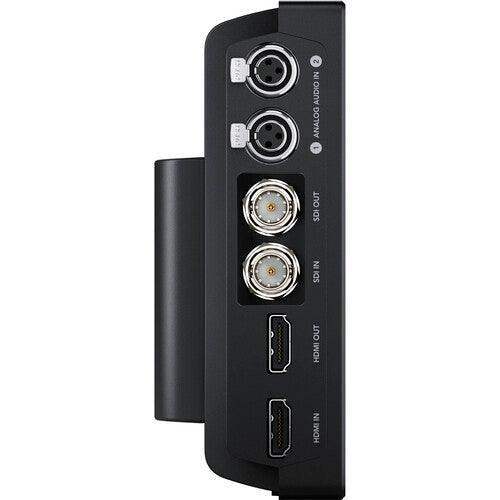

Video I/O 1 x HDMI Input
1 x BNC (3G-SDI) Input
1 x HDMI Output
1 x BNC (3G-SDI) Output
HDCP Support Yes
Embedded Audio HDMI: 8-Channel
SDI: 16-Channel
Audio I/O 2 x Mini-XLR Input
1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker 1
Power I/O 1 x Barrel (12 VDC) Input
Other I/O 1 x USB-C
1 x 2.5 mm (LANC) Input
Wi-Fi None
Format Support
Video Format SDI (10-Bit 4:2:2 YUV)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 59.94
HDMI (10-Bit)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 59.94
Timecode Support Yes
Recording
Pulldown Conversion None
Camera Trigger None
Pre-Roll Record None
Encoding Formats Up to 1920 x 1080
ProRes 422 HQ, 422, LT, Proxy 10-Bit 4:2:2 at up to 60 fps
DNxHD 220x, 145, 45, 220x MXF, 145 MXF, 45 MXF 10-Bit 4:2:2 at up to 60 fps
Maximum Audio Tracks 16
Metadata Tagging Yes
Phantom Power None
Power
Battery Type 2 x L-Series
Mounting
Mounting 6 x 1/4"-20 Female
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
Operating Humidity 0 to 90%
Storage Temperature -4 to 113°F / -20 to 45°C
General
Material of Construction Aluminum
Dimensions 7.6 x 5.14 x 1.45" / 19.3 x 13.06 x 3.68 cm
Weight 1.82 lb / 825 g
Packaging Info
Package Weight 2.98 lb
Box Dimensions (LxWxH) 10.3 x 9.4 x 3.3"
