Blackmagic Design Video Assist 5'' 3G - HYPERD/AVIDA03/5
Blackmagic Design Video Assist 5'' 3G - HYPERD/AVIDA03/5 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Blackmagic Design Video Assist 5'' 3G - HYPERD/AVIDA03/5
Product Overview

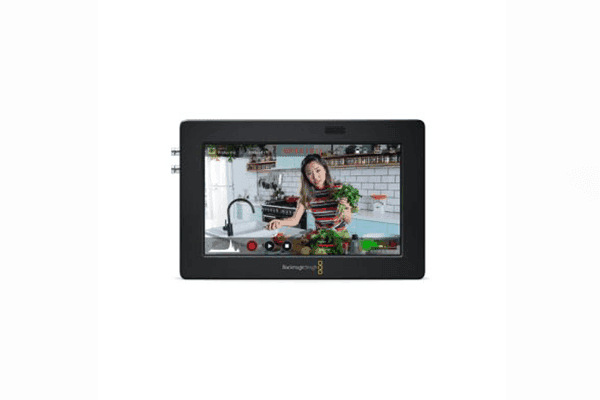

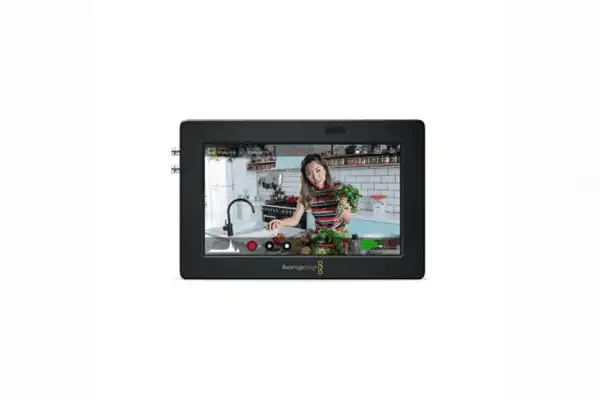

The Blackmagic Design Video Assist 5 inch 3G is a portable monitor, recorder, scope, and camera viewfinder in one, adding high-quality ProRes and DNxHD recording and a bright 5-inch display to any SDI or HDMI camera. It includes built-in scopes, focus assist, a tally indicator, 3D LUTs, and L-series battery power.
Key Specs
- 5 in touchscreen monitor and recorder
- Records up to 1080p60, 10-bit 4:2:2
- 3G-SDI and HDMI inputs/outputs
- ProRes and DNxHD to SD cards
- Built-in scopes, focus assist, 3D LUTs; L-series batteries
Product Description
Blackmagic Design Video Assist 5'' 3G
Blackmagic Video Assist 5” 3G is a portable monitor, a professional recorder, a portable scope and a fantastic camera viewfinder solution! You can also add better quality record codecs and a larger monitor to any SDI or HDMI camera! The new design has innovations such as 4 built in scopes, enhanced focus assist features, a tally indicator and built in 3D LUTs. The Video Assist 5” 3G support formats up to 1080p60 and the new design also has L-Series batteries for longer life. Blackmagic Video Assist 5” 3G really is 4 products in one!
Transforms Camera Usability with Video Assist!
Traditional cameras are designed for shoulder mounted operation, so are a compromise. Hours spent leaning into a viewfinder for long tripod mounted shoots can be tough! Video Assist will transform your shooting style with an on-board rigged screen. It's much more comfortable using a screen rigged to a position best suited for a shooting setup. Plus you get better situational awareness for the operator, assistant or director. With both 5" and 7" models, you choose the size of a rigged monitor that suits you best. Plus you're also adding fantastic features such as focus zoom, focus peaking, zebras, histogram, false color, scopes, frame markers, frame guides, touch screen and more!
Add professional monitoring and high-quality recording to your camera with the Video Assist 3G-SDI/HDMI 5" Recording Monitor from Blackmagic Design. It features a bright 5" 1920 x 1080 display with 300 cd/m² brightness to help you frame and focus your shots, and it provides 3G-SDI and HDMI inputs for recording the video output from professional and consumer cameras. You can monitor and record video resolutions up to 1080p60 10-bit 4:2:2 and up to 16 channels of embedded 24-bit 48 kHz audio. Firmware update 3.3.1 adds a video output via the USB Type-C port that can be used to convert your connected camera for webcam use. It also enables you to select channels for audio monitoring.
The Video Assist 3G 5" records to an SDXC/SDHC memory card using a single UHS-I SD card slot. Use the USB Type-C port to record for configuring and upgrading the monitor. Video is recorded using industry-standard Apple ProRes (HQ, 422, LT, or Proxy) and Avid DNxHD codecs.
- English
- Chinese
- French
- German
- Italian
- Japanese
- Korean
- Portuguese
- Russian
- Spanish
- Turkish
- macOS 10.15 Catalina
- macOS 10.14 Mojave
- USB 2.0 port for updates
- Microsoft Windows 10 64-bit
- USB 2.0 port
Features
- 1920 x 1080 5" Touchscreen LCD
- HDMI & 3G-SDI Video Inputs
- Records up to 1080p60 Video
- USB Type-C Webcam Video Output
- Stores to 1 x SDXC/SDHC Memory Card
- Loop-Through Video Outputs
- Waveform, Vectorscope & Histogram
- Focus Peaking, False Color & Zebra
- 11 x Display Language Options

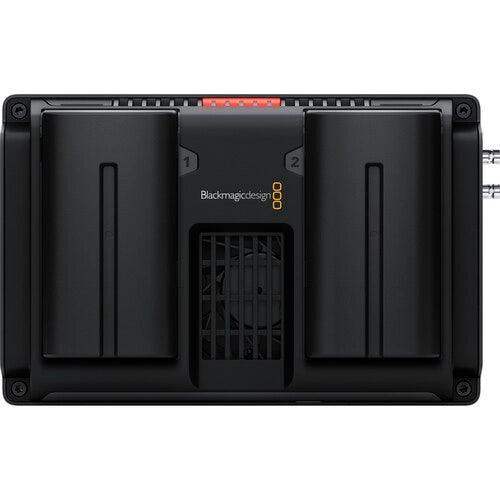

- Dual Sony L-Series Type Battery Slots
Specifications
Blackmagic Design Video Assist Specs
| Panel Type | LCD |
| Display Size | 5.0" / 12.7 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 135° |
| Touchscreen | Yes |
| Maximum Brightness | 300 cd/m2 |
| HDR Compatibility | None |
| Pixels Per Inch (ppi) | 441 ppi |
| Color Gamut | 100% Rec. 709 |
| Real-Time LUT Monitoring | SDR |
| Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |

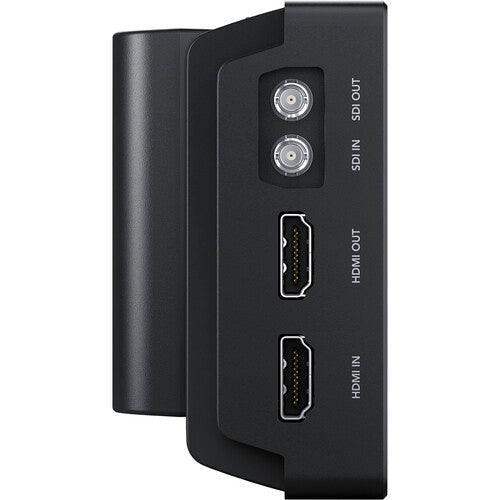

| Video I/O | 1 x HDMI Input 1 x Micro BNC (3G-SDI) Input 1 x HDMI Output 1 x Micro BNC (3G-SDI) Output 1 x USB-C Output |
| HDCP Support | Yes |
| Embedded Audio | HDMI: 8-Channel SDI: 16-Channel |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | 1 |
| Power I/O | 1 x Barrel Input |

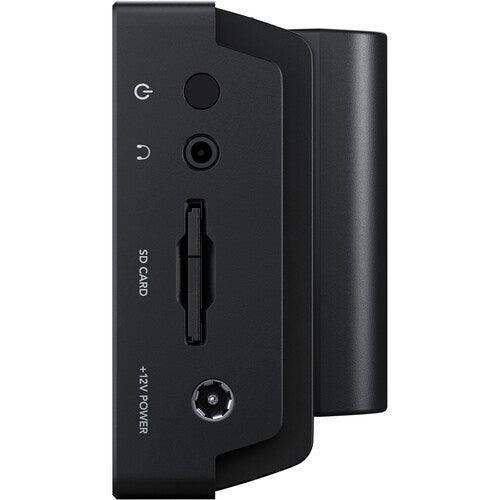

| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-I) |
| Wi-Fi | None |
| Video Format | SDI (10-Bit 4:2:2 YUV) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 HDMI (10-Bit) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 |
| Timecode Support | Yes |
| Pulldown Conversion | None |
| Camera Trigger | None |
| Pre-Roll Record | None |
| Encoding Formats | Up to 1920 x 1080 ProRes 422, 422 HQ, LT, Proxy 10-Bit 4:2:2 at up to 60 fps DNxHD 145, 145 MXF, 220x, 220x MXF, 45, 45 MXF 10-Bit 4:2:2 at up to 60 fps |
| Maximum Audio Tracks | 16 |
| Metadata Tagging | Yes |
| Phantom Power | None |
| DC Input Power | 12 VDC |
| Built-In Battery | None |
| Battery Type | 2 x L-Series |
| Mounting | 6 x 1/4"-20 Female |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Operating Humidity | 0 to 90% |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Material of Construction | Aluminum |
| Dimensions | 5.83 x 3.54 x 1.44" / 14.81 x 8.99 x 3.66 cm |
| Weight | 14.46 oz / 410 g |
| Package Weight | 2.1 lb |
| Box Dimensions (LxWxH) | 7.8 x 7.5 x 4.1" |
Frequently Asked Questions
What does it record?
ProRes and DNxHD up to 1080p60 to SD cards.
What monitoring tools are included?
Scopes, focus peaking, zebra, false color, frame guides, and 3D LUTs.
How is it powered?
With a 12V adapter or Sony L-series type batteries.
