Blackmagic Design Video Assist 5" 12G-SDI/HDMI HDR Recording Monitor - HYPERD/AVIDA12/5HDR

Name: Blackmagic Design Video Assist 5" 12G-SDI/HDMI HDR Recording Monitor - HYPERD/AVIDA12/5HDR
SKU: HYPERD/AVIDA12/5HDR
Price: 685.0 USD

Authorized Dealer

$685.00

Shipping calculated at checkout.

Blackmagic Design | SKU: HYPERD/AVIDA12/5HDR

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.

Product Overview

The Blackmagic Design Video Assist 5" 12G-SDI/HDMI HDR Recording Monitor adds professional monitoring and recording to virtually any camera, with a bright 5-inch 1920 x 1080 HDR display at 2500 cd/m2. It records up to DCI 4K 10-bit 4:2:2 via 12G-SDI and HDMI, supports Blackmagic RAW, and captures up to 16 channels of 24-bit 48 kHz audio to SD UHS-II and external media.

Key Specs

5 in 1920 x 1080 HDR touchscreen, 2500 cd/m2
Records up to DCI/UHD 4K, 10-bit 4:2:2
12G-SDI and HDMI inputs/outputs
Blackmagic RAW, ProRes, and DNxHD; single UHS-II SD slot
Dual L-series batteries; up to 16 audio channels

Product Description

Add professional monitoring and high-quality recording to virtually any camera with the Video Assist 5" 12G-SDI/HDMI HDR Recording Monitor from Blackmagic Design. It features a bright 5", 1920 x 1080 display with 2500 cd/m² brightness to help you frame and focus your shots and provides 12G-SDI and HDMI inputs for recording the video output from professional and consumer cameras. You can monitor and record HDR video up to DCI 4K, UHD 4K, 2K, or HD 10-bit 4:2:2, and up to 16 channels of embedded 24-bit 48 kHz audio. Blackmagic Raw recording is available for select Canon, FUJIFILM, Nikon, Panasonic, and SIGMA cameras.

The Video Assist records using a single high-speed UHS-II SD slot to SDHC/XC memory cards. You can also use the USB 3.1 Gen 1 Type-C port to record to an external drive, as well as use it for configuring and upgrading the monitor. Video is recorded using industry-standard Apple ProRes (HQ, 422, LT, or Proxy) and Avid DNxHD and DNxHR codecs.

USB Webcam Output with Firmware Update 3.3

In firmware version 3.3, Blackmagic has introduced USB webcam output, allowing for the Video Assist to send a full 1080p signal to your computer over USB using a streaming-friendly format. Also added is audio monitoring channel selection.

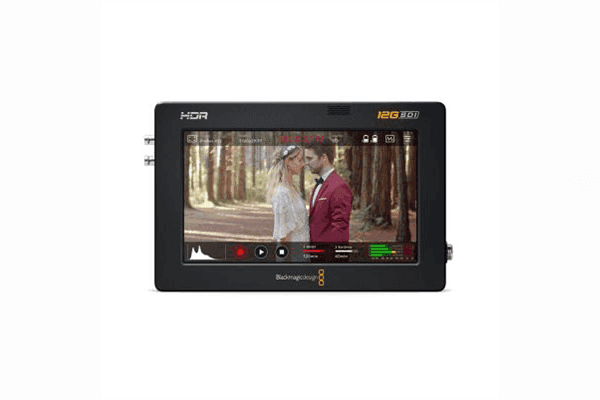

Bright 5" Full HD Display

The display features a bright 5" 1920 x 1080 display with 2500 cd/m² brightness for evaluating your shots. On-screen controls allow you to vary the brightness and contrast depending on the shooting situation.

4K Support

Monitor and record DCI 4K, UHD 4K, 2K, and HD resolutions with 10-bit 4:2:2 HDR support. 3D LUTs are also supported

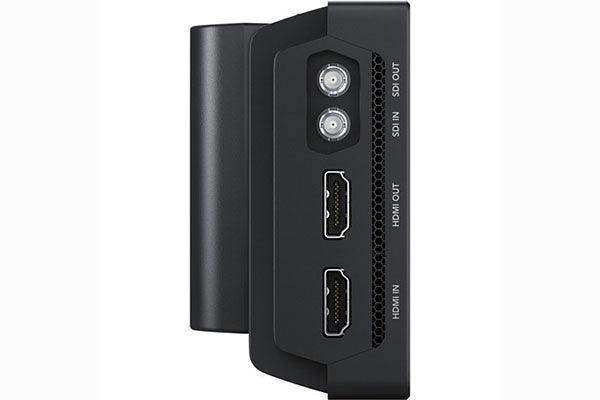

12G-SDI and HDMI Connections

Video and audio are captured using 12G-SDI and HDMI 1.4 inputs, allowing you to record from professional cameras and camcorders, as well as popular DSLRs and mirrorless cameras. The 12G-SDI BNC input even allows you to monitor Ultra HD footage. Loop-through outputs are provided so you can simultaneously display the live video or recorded clips on larger screens like 4K, 2K, or HD broadcast monitors or HDMI projectors while you monitor and record on the Video Assist. Up to eight channels of audio are embedded in the output and can also be monitored on headphones using the 3.5mm stereo jack.

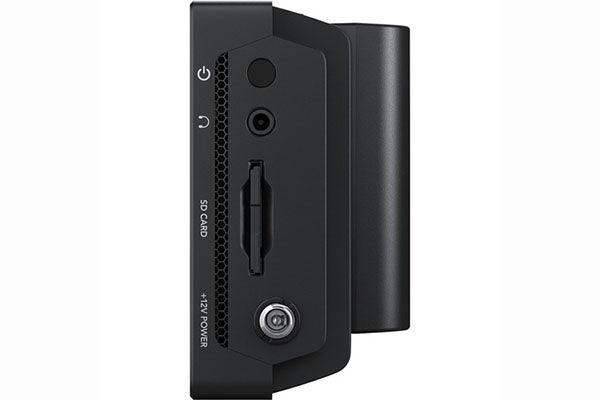

Power Options

A universal power supply is included so you can use the Video Assist anywhere using the 12 VDC input, or run off two Sony L-series type batteries in the dual battery slots.

Touchscreen Interface

The display provides intuitive capacitive touchscreen controls. Swipe gestures make it simple and quick to show or hide settings, such as capture resolution and format, as well as screen brightness and contrast. You'll have access to additional controls, recording status, histogram, waveform, vectorscope, battery status, and more. The controls have a semi-transparent overlay, so you can still be able to keep an eye on every part of your shots.

10-Bit 4:2:2 ProRes and DNxHD Recording

The Blackmagic Video Assist records your video at the 10-bit 4:2:2 quality. Files are recorded to a single high-speed UHS-II slot using SDXC/HC cards in Apple ProRes (HQ, 422, LT, Proxy) or DNxHD and DNxHR codecs. These are industry-standard formats, so you can start editing immediately without having to convert the files.

Blackmagic Raw

This monitor supports Blackmagic Raw recording for select cameras including:

Canon EOS C300 Mark II
FUJIFILM GFX100, FUJIFILM GFX100S
Nikon Z6, Z6 II, Z7, Z7 II
Panasonic AU-EVA1
Panasonic LUMIX BS1H
Panasonic LUMIX S1, S1H
Panasonic LUMIX S5
SIGMA fp, SIGMA fp L

Features

5" 1920 x 1080 Touchscreen LCD
Record up to DCI or UHD 4K HDR Video
HDMI and 12G-SDI Video Inputs & Outputs
10-Bit, 4:2:2 ProRes & DNxHD Encoding
Blackmagic Raw with Select Cameras
3D LUTs, 2500 cd/m² Brightness
Stores to Single SDHC/XC Memory Slot
Histogram, Waveform, Vectorscope
Dual L-Series Battery Slots, AC Adapter

Specifications

Blackmagic Design Video Assist 12G HDR Specs

Display

Panel Type	TFT LCD
Display Size	5.0" / 12.7 cm
Resolution	1920 x 1080
Aspect Ratio	16:9
Touchscreen	Yes
Maximum Brightness	2500 cd/m²
Bit Depth / Color Support	10-Bit (1.07 Billion Colors)
HDR Compatibility	HDR10, Hybrid Log Gamma
Pixels Per Inch (ppi)	440 ppi
Color Gamut	100% Rec. 709 100% Rec. 2020
Real-Time LUT Monitoring	SDR, HDR
Image Controls	Histogram, Picture-in-Picture, RGB Parade, Vectorscope, Waveform
Video I/O	1 x HDMI 2.0a Input 1 x Micro BNC (12G-SDI) Input 1 x HDMI 2.0a Output 1 x Micro BNC (12G-SDI) Output
HDCP Support	No
Embedded Audio	HDMI: 8-Channel SDI: 16-Channel
Audio I/O	1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	1
Power I/O	1 x Barrel (12 VDC) Input
Other I/O	1 x USB-C
Wi-Fi	None

Format Support

Video Format	SDI (10-Bit 4:2:2 RGB) DCI 4K: 25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K: 25/24/23.98 DCI 2K PsF: 25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 HDMI (10-Bit) DCI 4K: 25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94
Gamma Curve	HDR-HLG, Rec2020, Rec709
Timecode Support	Yes

Recording

Pre-Roll Record	None
Encoding Formats	Up to 4096 x 2160 Blackmagic Raw ProRes 422, 422 HQ, LT, Proxy 10-Bit 4:2:2 at up to 60 fps DNxHD HQX, LB, LB MXF, SQ, SQ MXF 10-Bit 4:2:2 at up to 60 fps
Maximum Audio Tracks	16

Power

AC Input Power	100 to 240 VAC, 50 / 60 Hz
DC Input Power	12 VDC
Built-In Battery	None
Battery Type	2 x L-Series
Power Consumption	36 W

Environmental

Operating Temperature	32 to 72°F / 0 to 40°C
Operating Humidity	0 to 90%
Storage Temperature	-4 to 113°F / -20 to 45°C

General

Dimensions	5.83 x 3.54 x 1.44" / 14.81 x 8.99 x 3.66 cm
Weight	14.46 oz / 409.94 g

Packaging Info

Package Weight	1.855 lb
Box Dimensions (LxWxH)	8.6 x 7.8 x 3.3"

Frequently Asked Questions

What can it record?

Up to DCI/UHD 4K HDR in ProRes, DNxHD/DNxHR, or Blackmagic RAW with select cameras.

What media does it use?

A high-speed UHS-II SD card or an external USB-C drive.

What is the screen brightness?

A bright 2500 cd/m2 HDR display for use in daylight.
