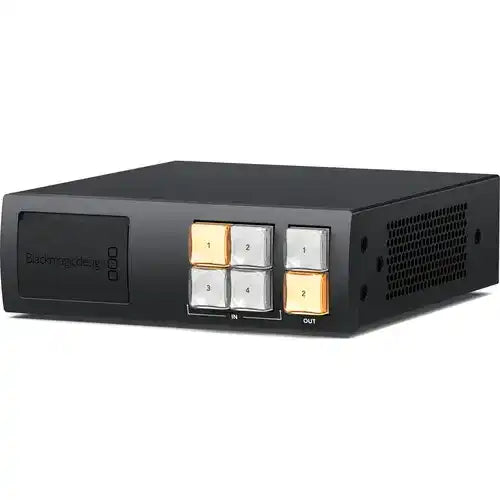

Blackmagic Design Videohub Mini 4x2 12G – Compact SDI Router
Blackmagic Design Videohub Mini 4x2 12G – Compact SDI Router is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Blackmagic Design Videohub Mini 4x2 12G – Compact SDI Router
Product Overview
The Blackmagic Design Videohub Mini 4x2 12G is a compact SDI video router with 4 inputs and 2 outputs and full 12G-SDI support, routing video up to 2160p60 over a single cable. With Ethernet IP control and a small rack-mountable form factor, it's a good fit for compact studios, mobile production setups, and any space-limited environment that needs reliable Ultra HD routing.
Product Description
The Videohub Mini 4x2 12G provides four 12G-SDI inputs and two 12G-SDI outputs, supporting SD, HD, 3G, 6G, and 12G-SDI signals up to 2160p60 on a single cable. It's controlled over Ethernet (IP control) and integrates with the Videohub software and compatible hardware control panels, so it can be operated remotely as part of a larger broadcast setup. The compact rack-mountable chassis with an internal power supply makes installation straightforward, and it can be combined with other Videohub routers to build out larger systems.
Key Features
- 4×2 12G-SDI routing — Four 12G-SDI inputs and two 12G-SDI outputs.
- Up to 2160p60 — Ultra HD over a single cable.
- Multi-rate SDI — Supports SD, HD, 3G, 6G, and 12G-SDI.
- Ethernet IP control — Works with Videohub software and control panels.
- Compact chassis — Rack-mountable with an internal power supply.
- Expandable — Combine with other Videohub routers for larger systems.
Typical Applications
- Broadcast studio — Compact 12G routing where rack space is limited.
- Auditorium — Small-footprint source routing for live events.
- House of worship — Routing a handful of cameras and playback sources.
Technical Specifications
| Model | VHUBSMTG12G0402 |
| Inputs | 4× 12G-SDI |
| Outputs | 2× 12G-SDI |
| Max Resolution | Up to 2160p60 (Ultra HD) |
| Video Standards | SD, HD, 3G, 6G, 12G-SDI |
| Control | Ethernet (IP control) |
| Power | Internal power supply |
Frequently Asked Questions
What's the routing capacity?
Four 12G-SDI inputs to two 12G-SDI outputs, supporting up to 2160p60.
What SDI formats does it handle?
SD, HD, 3G, 6G, and 12G-SDI over a single cable.
How is it controlled?
Over Ethernet via IP control, using the Videohub software or compatible control panels.
Can it work with other routers?
Yes — it can be combined with other Videohub routers to build larger systems.
