Blackmagic Design Videohub 120x120 12G – SDI Router
Product Overview
The Blackmagic Design Videohub 120x120 12G is the largest router in the Videohub 12G family, with 120 inputs and 120 outputs in an 8 RU frame. It routes any combination of SD, HD, and Ultra HD up to 2160p60 over a single 12G-SDI cable, with full SDI re-clocking, a built-in control panel, and external control over Ethernet — built for the largest broadcast and post-production systems.
Product Description
The Videohub 120x120 12G provides 120 12G-SDI inputs and 120 12G-SDI outputs on BNC connectors, supporting SDI rates from 270 Mb/s SD through 1.5G, 3G, 6G, and 12G, with automatic multi-rate detection so each crosspoint follows the incoming standard across SD, HD, and Ultra HD up to 2160p60. Full SDI re-clocking maintains signal integrity at high frame rates, and crosspoint switching routes signals near-instantly. The front-panel color LCD and spin knob give you immediate visual routing on the unit, while Ethernet, RS-422, and the Videohub Smart Control Pro panel provide remote and hardware control. Dual redundant 100–240V AC inputs keep the router running in mission-critical environments, and the 8 RU chassis fits standard racks.
Key Features
- 120×120 12G-SDI routing — 120 inputs and 120 outputs in 8 RU.
- Single-cable Ultra HD — SD, HD, and Ultra HD up to 2160p60 on one 12G-SDI cable.
- Full SDI re-clocking — Maintains signal integrity at high frame rates.

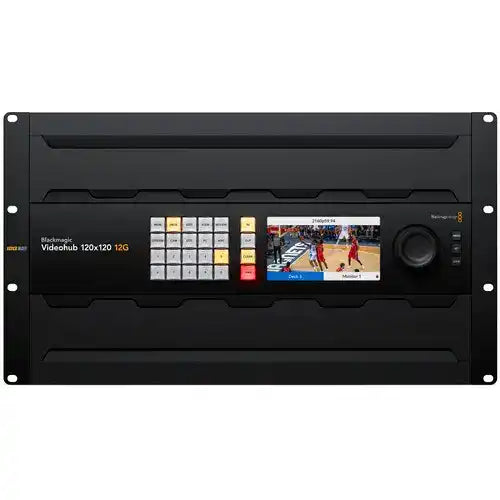

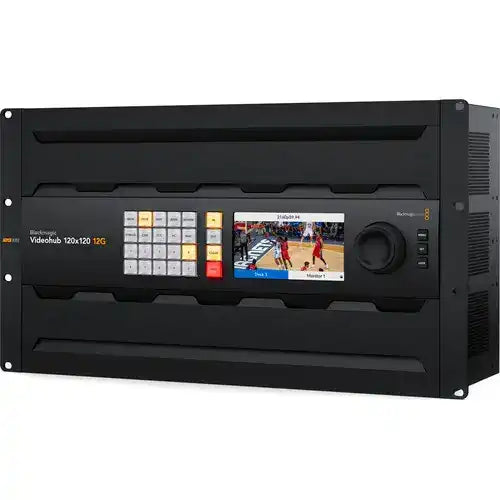

- Built-in control — Color LCD and spin knob for instant visual routing.
- Multi-rate support — Auto-detects SD, HD, and UHD; rates from 270 Mb/s to 12G.
- Redundant power — Dual 100–240V AC inputs for uptime.
- Remote control — Ethernet, RS-422, and Videohub Smart Control Pro.
Typical Applications
- Broadcast studio — Large-scale 12G routing for cameras, playback, and monitoring.
- Auditorium — Source routing across large-venue and multi-stage productions.
- House of worship — Multi-camera routing across large multi-room campuses.
Technical Specifications
| Model | VHUBSMAS12G120120 |

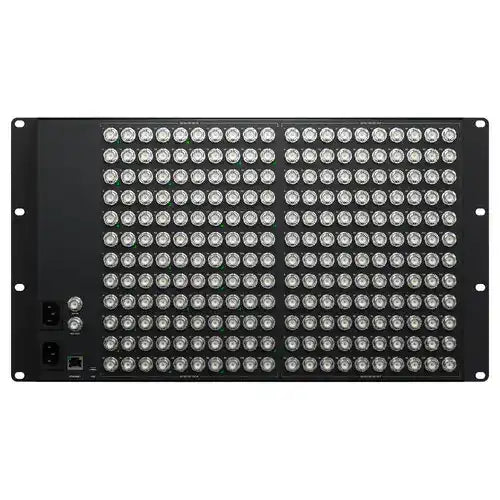

| Video Inputs | 120× 12G-SDI (BNC) |
| Video Outputs | 120× 12G-SDI (BNC) |
| SDI Rates | 270 Mb/s, 1.5G, 3G, 6G, 12G |
| Video Standards | SD, HD, Ultra HD 2160p60 (auto multi-rate) |
| Control | Built-in color LCD & spin knob; Ethernet, RS-422, Smart Control Pro |
| Power | Dual redundant 100–240V AC |
| Rack Units | 8 RU |
| Operating Temperature | 0–40°C (32–104°F) |
Frequently Asked Questions
How large is the crosspoint?
120×120 — 120 12G-SDI inputs to 120 12G-SDI outputs, the largest in the Videohub 12G family.
What SDI rates does it support?
270 Mb/s SD through 1.5G, 3G, 6G, and 12G, with automatic multi-rate detection across SD, HD, and Ultra HD up to 2160p60.
How is it controlled?
From the built-in color LCD and spin knob, or remotely via Ethernet, RS-422, and the Videohub Smart Control Pro panel.
Is the power redundant?
Yes — dual redundant 100–240V AC inputs keep it running in mission-critical environments.
