Blackmagic Design Videohub 20x20 12G – SDI Router
Product Overview
The Blackmagic Design Videohub 20x20 12G is a 12G-SDI video router with 20 inputs and 20 outputs in a 2 RU frame, routing any combination of SD, HD, and Ultra HD up to 2160p60 at the same time. A built-in color LCD and rotary knob allow fast routing directly on the unit, making it well suited to studios and mobile setups that need reliable multi-format routing.
Product Description

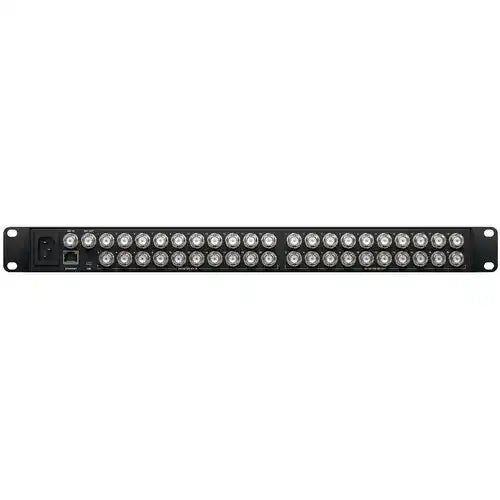

The Videohub 20x20 12G provides twenty 12G-SDI inputs and twenty 12G-SDI outputs, each carrying SD, HD, or Ultra HD over a single 12G-SDI connection, with automatic format detection and re-clocking so the router handles mixed standards simultaneously. The front-panel color LCD and rotary knob give you immediate source-to-destination control, while Ethernet and RS-422 allow remote operation and integration with router control panels and software. Dual redundant 100–240V AC supplies keep it running if one supply is interrupted, and the 2 RU chassis fits standard racks. It's part of the Videohub 12G family, which scales from 10×10 up through 40×40, 80×80, and 120×120 frames.
Key Features
- 20×20 12G-SDI routing — Twenty inputs and twenty outputs in 2 RU.
- Up to 2160p60 — Routes any mix of SD, HD, and Ultra HD simultaneously.
- Built-in control — Color LCD and rotary knob for fast routing.
- Auto format detection — Re-clocked outputs follow the incoming standard.
- Redundant power — Dual 100–240V AC supplies for reliability.
- Remote control — Ethernet and RS-422 for panels and software.
Typical Applications
- Broadcast studio — Multi-format 12G routing for cameras, playback, and monitoring.
- Auditorium — Source routing for live events and large-venue production.
- House of worship — Multi-camera signal routing for services and IMAG.
Technical Specifications
| Model | VHUBSMAS12G020020 |
| Inputs | 20× 12G-SDI |
| Outputs | 20× 12G-SDI |
| Supported Formats | SD, HD, Ultra HD (up to 2160p60) |
| Control | Built-in color LCD & rotary knob; Ethernet, RS-422 |
| Power | Dual redundant 100–240V AC |
| Rack Units | 2 RU |
| Operating Temperature | 0–40°C (32–104°F) |
Frequently Asked Questions
Can it route different formats at once?
Yes — it routes any combination of SD, HD, and Ultra HD up to 2160p60 simultaneously, with automatic format detection.
Does it need an external control panel?
No — the built-in color LCD and rotary knob handle routing on the unit; Ethernet and RS-422 are available for remote control.
Is the power redundant?
Yes — dual redundant 100–240V AC supplies keep it running if one is interrupted.
How much rack space does it use?
It occupies 2 RU.
