Blackmagic Design URSA Studio Viewfinder G2 - CINEURSANSVF2

Availability: Call for Availability
Availability: Direct Ship
Blackmagic Design SKU: CINEURSANSVF2
No reviews
Price:
$1,515.00

Description

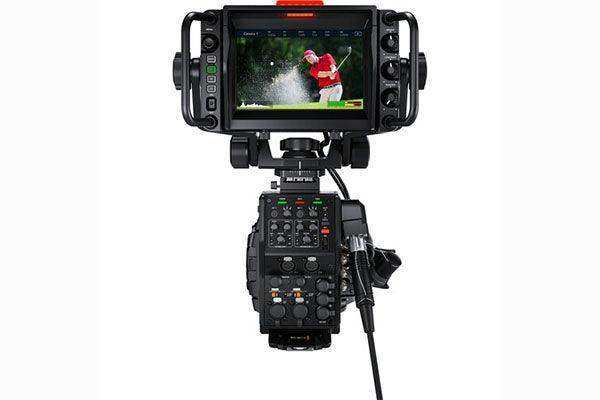

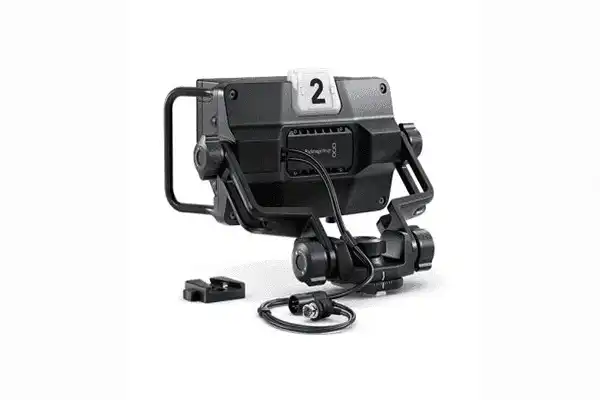

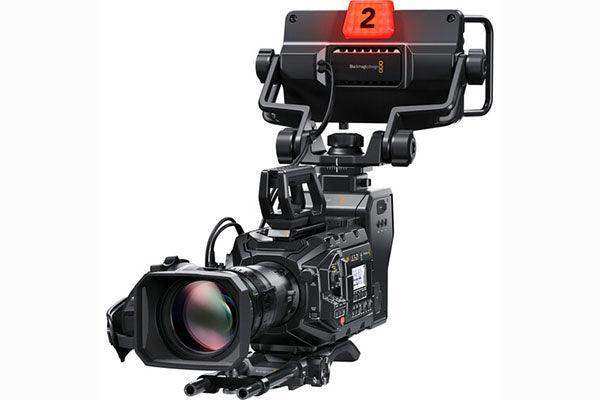

Add the Blackmagic Design 7" URSA Studio Viewfinder G2 to your URSA Studio G2 or URSA Mini camera to provide high-resolution monitoring. The 7" viewfinder/monitor features a high-resolution 1920 x 1200 TFT LCD screen, and it features a detachable sun hood to prevent glare. Large side handles allow you to adjust the angle, and it mounts onto the top of your URSA Mini top handle using the bottom V-lock mount.

The viewfinder connects to the camera using a 3G-SDI BNC input, and it features 2000 cd/m² brightness, allowing you to view images clearly indoors or outdoors. Multiple dials and knobs allow you to navigate and adjust settings, and an LED light provides tally information. Its status display provides metadata from the camera, including frame guides, status, and peaking, and it also shows the fps, battery level, shutter, gain, and more. It is powered using the 4-pin XLR power input that can be used right from your URSA camera power output. It also features a USB Type-C input for setup and firmware updates.

Controls Dial, knobs, and customizable function buttons for settings, shortcut features, and navigating menus. Handles Built-in grab handles for positioning the monitor independently from the camera. Position Adjustment Options Variable tension pivot points for articulated arm and grab handles with forward, backward, up, down, pan, and tilt adjustments. Mounting Options Quick release V-lock mounting bracket for attaching viewfinder to URSA Mini top handle. Tally Large LED tally light with customizable Perspex camera numbers. Metadata Support Detects camera information embedded in the SDI signal including status information, frame guides, focus peaking, tally, and more. Screen Interface On-screen meters and status information including camera ID, resolution, frames per second, shutter speed, gain, white balance, camera battery level, and more.
  • Designed for URSA G2/URSA Mini Cameras
  • 7" 1920 x 1200 TFT LCD Screen
  • 3G-SDI Connector to Camera
  • 2000 cd/m² Brightness
  • 4-Pin XLR Power, V-Lock Mount
  • Rotary Dials, Customizable Buttons
  • Detachable Sun Hood

Blackmagic Design URSA Studio Specs

 Display
Color/Monochrome Color
Panel Type TFT LCD
Display Size 7.0" / 17.8 cm
Screen Resolution 1920 x 1200
Touchscreen No
Maximum Brightness 2000 cd/m2
Image Controls False Color, Focus Assist, Focus Peaking, Screen Markers
I/O
Video I/O 1 x BNC (3G-SDI) Input
Video Format SDI (10-Bit 4:2:2 YUV)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Power I/O 1 x XLR 4-Pin (12 VDC) Input
Other I/O 1 x USB-C 2.0 Input
Power
DC Input Power 12 VDC
Environmental
Operating Humidity 0 to 90% (Non-Condensing)
Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
General
Mounting 1 x V-Lock
Dimensions 13.03 x 11.97" / 33.1 x 30.4 cm
Weight 5.93 lb / 2.69 kg
Packaging Info
Package Weight 8.07 lb
Box Dimensions (LxWxH) 13.9 x 12.1 x 7.7"
