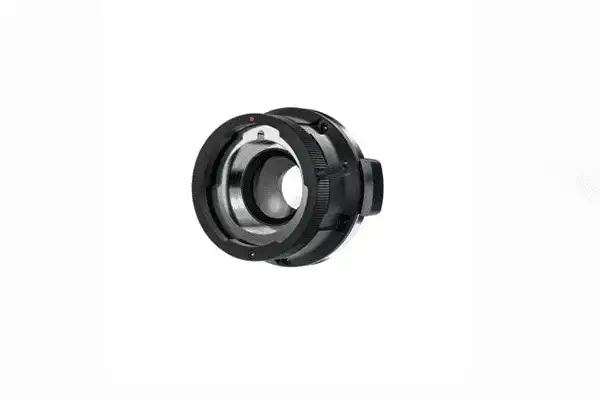

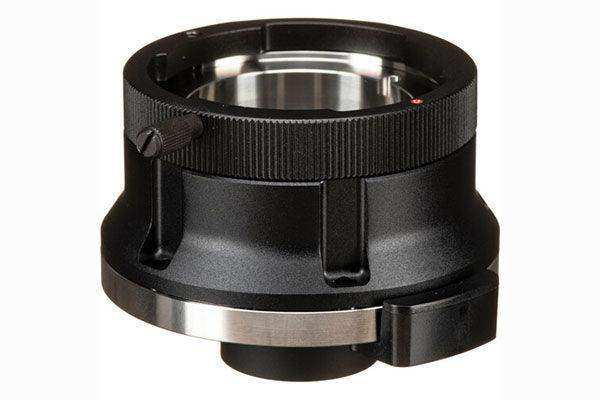

Blackmagic Design URSA Mini Pro B4 Mount - CINEURSAMUPROTB4HD
Product Overview
The Blackmagic Design URSA Mini Pro B4 Mount is a replacement lens mount that lets you fit ENG-style B4 HD broadcast lenses on the URSA Mini Pro. It includes corrective optics so three-sensor B4 lenses image correctly on the camera's single Super 35 sensor, ideal for broadcast and live production.
Key Specs
- Replacement B4 lens mount for URSA Mini Pro
- Includes corrective optics for three-sensor B4 lenses
- Enables ENG-style HD broadcast lenses
- 12-pin connector to power and control servo lenses
- Genuine Blackmagic mount
Product Description
The URSA Mini Pro B4 Mount from Blackmagic Design is a replacement mount for use on the URSA Mini Pro. This mount enables using your ENG-style B4 mounted HD lens on your URSA Mini Pro. The mount incorporates corrective optics that enable the use of a lens designed to work on a camera with three sensors and a prism, on the URSA Mini Pro, which is a single-sensor camera, without the image suffering from optical degradation.
The lens mount accepts lenses with a B4 lens mount and features a locking lever to engage the mount's lock. The included shim kit enables precise flange distance adjustment when installing this mount on your camera.
The integrated optics support HD resolution and are designed with spherical-aberration correction that compensate for the lens being used on a single-sensor camera while designed for a three-sensor/prism-block camera.
Features
- For HD Lenses with B4 Mount
- Integrated Optical Elements
- Spherical-Aberration Correction
- Includes Shim Set
Specification
Blackmagic Design CINEURSAMUPROTB4HD Specs
| Camera Mount | Blackmagic URSA Mini Pro |
| Lens Mount | B4 Mount |
| Magnification | 1.1x |
| Dimensions | H: 3.3 x W: 2.9 x D: 2.2" / H: 83.1 x W: 74.2 x D: 56.0 mm |
| Weight | 12 oz / 340 g |
| Package Weight | 1.445 lb |
| Box Dimensions (LxWxH) | 5.1 x 5.05 x 4" |
| Camera Mount | Blackmagic URSA Mini Pro |
| Lens Mount | B4 Mount |
| Magnification | 1.1x |
| Dimensions | H: 3.3 x W: 2.9 x D: 2.2" / H: 83.1 x W: 74.2 x D: 56.0 mm |
| Weight | 12 oz / 340 g |
| Package Weight | 1.445 lb |
| Box Dimensions (LxWxH) | 5.1 x 5.05 x 4" |
Frequently Asked Questions
What does this mount enable?
Using ENG-style B4 broadcast lenses on the URSA Mini Pro, with corrective optics for the single-sensor design.
Does it power the lens?
Yes, the 12-pin connector powers and controls compatible servo lenses.
Is it interchangeable?
Yes, URSA Mini Pro mounts are user-changeable (EF, PL, F, and B4 available).
