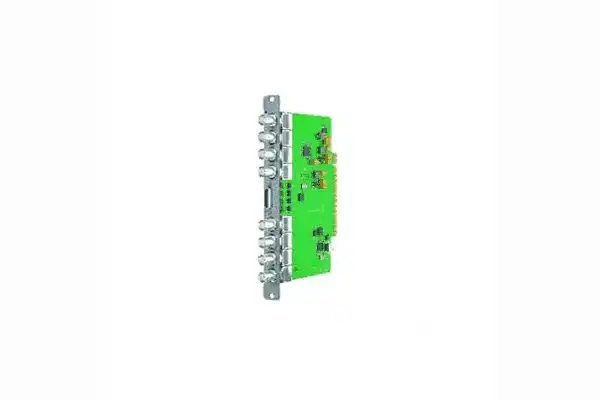

Blackmagic Design Universal Videohub SDI Interface – SDI Card
Final sale — no returns.
Product Overview
The Blackmagic Design Universal Videohub SDI Interface is an SDI interface card for the Universal Videohub, providing four SDI inputs, four SDI outputs, and four deck-control connections. It features full re-clocking and auto-switching across SD, HD, and 3 Gb/s SDI, connecting devices across a facility over distances up to 300' (91.4 m).
Product Description
This interface card expands a Universal Videohub router with four SDI inputs and four SDI outputs, plus four deck-control ports for controlling connected decks. It auto-switches and fully re-clocks SD, HD, and 3 Gb/s SDI signals, and uses 10-bit video quantizing — 1024 video levels — to eliminate banding and contouring for high-quality routing. With cable runs up to 300' (91.4 m), it's designed to tie together sources and destinations throughout a facility. This item is sold as a final sale with no returns.
Key Features
- 4 in / 4 out — Four SDI inputs and four SDI outputs per card.
- 4 deck control — Four deck-control connections.
- Re-clocking & auto-switch — SD, HD, and 3 Gb/s SDI handled automatically.
- 10-bit quantizing — 1024 video levels eliminate banding and contouring.
- Long cable runs — Connects devices over distances up to 300' (91.4 m).
Technical Specifications
| Model | VHUBUV/IF/SDI |
| Signal Inputs | 4× SDI |
| Signal Outputs | 4× SDI |
| Deck Control | 4× |
| Formats | SD, HD, 3 Gb/s SDI (auto-switch, re-clocked) |
| Video | 10-bit (1024 levels) |
| Max Cable Run | Up to 300' / 91.4 m |
Frequently Asked Questions
What is this card for?
It's an SDI interface module for the Universal Videohub, adding four SDI inputs, four SDI outputs, and four deck-control connections.
What formats does it support?
SD, HD, and 3 Gb/s SDI, auto-switched and fully re-clocked.
How far can it run cable?
It connects devices over distances up to 300' (91.4 m).
Can this item be returned?
No — it is sold as a final sale with no returns.
