Blackmagic Design Ultimatte Smart Remote 4 - ULTMSMTREM4
Product Overview

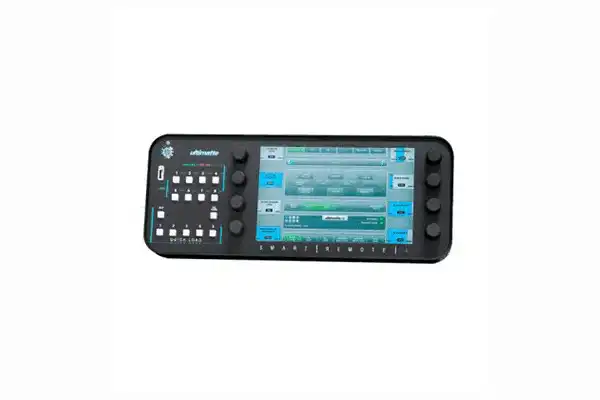

The Blackmagic Design Ultimatte Smart Remote 4 is a touchscreen control panel for Ultimatte compositing processors, letting one operator manage up to eight Ultimatte units over Ethernet. A large capacitive touchscreen, eight optical encoder knobs with per-unit selection, on-line and on-air indicators, and five quick save and load buttons make it fast to dial in and recall pulls, while Monitor Out Views give instant access to key functions from any menu.
Key Specs
- Touchscreen control panel for Ultimatte processors
- Controls up to 8 Ultimatte units over Ethernet
- 8 optical encoder knobs with per-unit selection
- On-line and on-air indicators, 5 quick save/load buttons
- 2x USB and SVGA output; rack-mount ears included
Product Description
Control up to 8 Ultimatte units via Ethernet with the Blackmagic Design Ultimatte Smart Remote 4. Its large display area, adjustable stand, and separate brightness controls for the display as well as the button layout make for an ergonomic, user-friendly experience. Furthermore, "Monitor Out Views" can be accessed from every menu for quick and easy operation of essential functions.- Capacitive touchscreen LCD screen
- Eight optical encoder knobs and unit selection buttons
- On Line and On Air indicators for each unit
- Five quick-save and quick-load buttons
Connections
Software Updates
2 x USB 2.0 and 1 x USB 3.0 for firmware updates.
SVGA Output
SVGA output allows for graphics to be viewed on an external VGA monitor.
Ethernet
2 x 10/100 Mbps Ethernet ports to connect to LAN networks for controlling Ultimatte 12.
RS-422
2 x for controlling Ultimatte 11.
Product Specifics
Rotary Knobs
8 x rotary knobs for adjusting parameters.
Unit ID Buttons
8 x buttons. Illuminated blue for active.
Unit ID LED Indicators
Illuminated green for on line and red for on air.
Alt + Quick Load/Save Buttons
Alt button plus 5 buttons for saving files into volatile RAM.
Quick Load/Save Buttons
5 x buttons for loading files stored in volatile RAM.
File Clear Button
1 x button for One Touch Keying.
Alt + File Clear
Alt button plus file clear button for One Touch Keying using some user defined presets.
Customizable Menus
4 x menus for building your own menu with your most used controls.
LED Control
User adjustable brightness control for LEDs.
Fan Speed Control
User adjustable.
What's Included
- Ultimatte Smart Remote 4
- SD card contains software and manual
- Rack mount ears
Features
- Controls up to 8 Ultimatte Units
- Capacitive Touchscreen LCD
- Rotary Encoders
- User-Friendly Interface
- On Line and On Air Indicators per Unit
Specification
| Package Weight | 14 lb |
| Box Dimensions (LxWxH) | 20.3 x 12.4 x 7.8" |
Frequently Asked Questions
How many Ultimatte units can it control?
Up to eight units over Ethernet.
Is an Ultimatte processor included?
No, the Smart Remote 4 controls separately sold Ultimatte compositing processors.
Are quick presets supported?
Yes, five quick save and load buttons let you store and recall pulls instantly.
