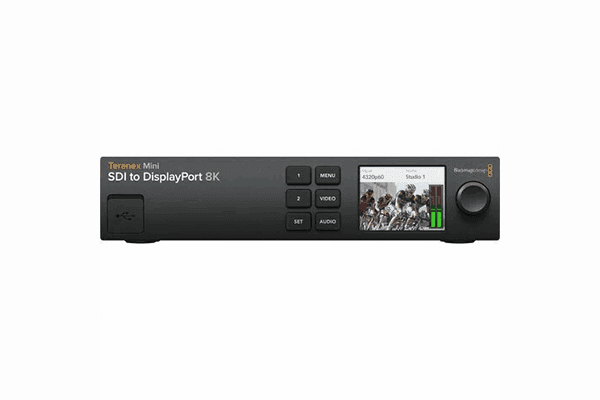

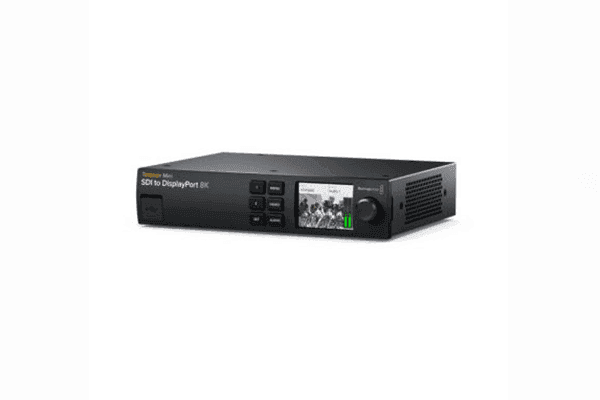

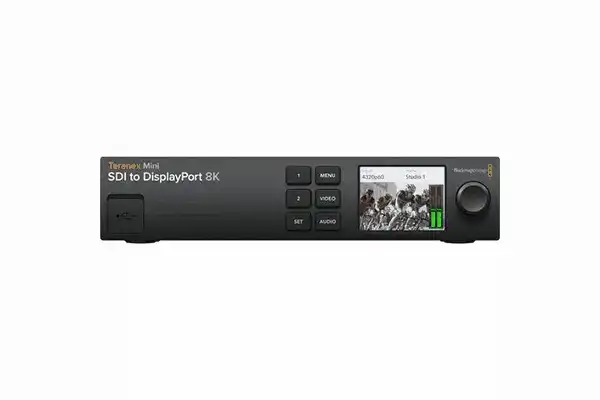

Blackmagic Design Teranex Mini - SDI to DisplayPort 8K HDR - CONVN8TRM/AA/SDIDP

Availability: Call for Availability
Availability: Direct Ship
Blackmagic Design SKU: CONVN8TRM/AA/SDIDP
No reviews
Price:
$1,415.00

Description

The Teranex Mini SDI to DisplayPort 8K HDR Converter from Blackmagic Design provides an advanced 8K monitoring solution. Its DisplayPort outputs enable you use pro monitors like the Apple Pro Display XDR as part of your on-set or post-production monitor setup. The four 12G-SDI inputs support 4K signals independently or an 8K input signal together, either DCI 8K or 8K video split into four UHD signals. It can use third-party calibration probes such as the SpectraCal C6, X-Rite i1 Display Pro, or the Klein K10-A probe to accurately align connected displays for precise color. The built-in, color LCD screen displays not only the video image, but it can also display two on-screen scopes selected from WFM, Parade, Vector, and Histogram options.

The 8K is available on the four SDI outputs, via the single USB-C DisplayPort output, or the two full-size DisplayPort outputs for monitors that support quad HDMI inputs. If you are not connected to an 8K monitoring solution, a built-in down-converter enables you to display the 8K input video on an Ultra HD or HD monitor. This unit will convert between 2SI and square division automatically. The Mini SDI to DisplayPort 8K HDR solution supports a variety of HDR workflows including PQ and HLG, and it supports both Rec. 202 and Rec. 709 as well as 100% of the DCI-P3 format. Two independent 3D LUTs can be loaded at the same time, and you can switch between them from the unit's front panel. In addition to the LCD video screen, the front of the Teranex Mini SDI to DisplayPort 8K HDR Converter features a rotating selection knob and six front-panel buttons for navigating. Use the included rubber feet for desktop mounting or support the converter with the separately available Teranex Mini Rack Shelf.

Note: The USB-C port is for DisplayPort over USB-C. Note that this requires a certified DisplayPort over USB-C cable, which is different from a generic USB-C cable or a Thunderbolt cable.
SDI to DisplayPort Conversion Converts SDI sources to DisplayPort, supporting up to DCI 8K60 input Quad-Link 12G-SDI Quad-link 12G-SDI inputs with loop outs SDI & DisplayPort Outputs Quad-link 12G-SDI output, one USB-C DisplayPort output, and two full-size DisplayPort outputs Pro Monitor Compatibility Compatible with pro monitors like the Apple 32" Pro Display XDR Calibration Tool Compatibility Supports third-party calibration probes like the SpectraCal C6, X-Rite i1 Display Pro, and the Klein K10-A for accurate alignment on connected displays HDR Support Supports SDR and both HLG or PQ HDR via the SDI and DisplayPort outputs Live Scope Overlays Overlay up to two live scopes on the monitor 3D LUT Support Supports 3D, 10-bit LUTs with two front-panel control buttons

Blackmagic Design Teranex Mini Specs

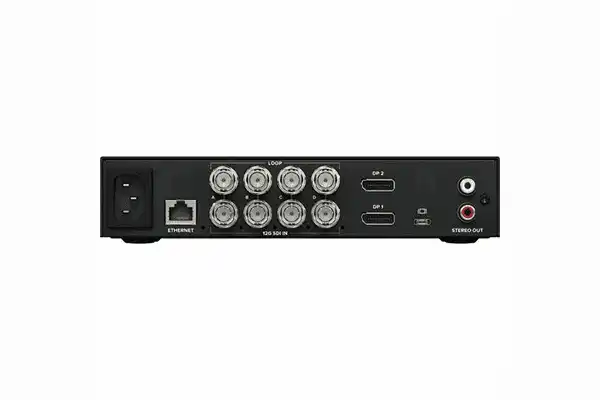

 Inputs / Outputs
Video Inputs 4 x BNC (12G-SDI)
Audio Inputs None
Video Outputs 4 x BNC (12G-SDI) (Loop Output)
2 x DisplayPort (DisplayPort 1.4)
1 x USB-C (DisplayPort 1.4)
Audio Outputs 2 x RCA Analog
Other I/O 1 x RJ45 Control
1 x USB-C
Format Support
Input Video Format SDI (4:4:4/4:2:2 RGB, YUV)
DCI 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
8K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 23.98/24/25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Output Video Format SDI (4:4:4/4:2:2 RGB, YUV)
DCI 8K at 25/29.97/30/47.95/48/50/59.94/60 fps
8K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 23.98/24/25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Output Audio Format Analog: 48 kHz / 24-Bit
Embedded Audio SDI: 16-Channel
Standards
Video Standard Compliance SMPTE 259M/292M/296M/372M/424M-B/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10
Hardware
Display Size 2.2"
OS Compatibility Windows 10
macOS 10.14
macOS 10.1 or Later
*As of April, 2020: Check with manufacturer for the most up-to-date compatibility
Power I/O 1 x IEC C14 Input
Power Consumption Device: 100 to 240 VAC (35 W)
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90%
General
Dimensions 8.27 x 6.93 x 1.73" / 21.01 x 17.6 x 4.39 cm
Weight 2.6 lb / 1.18 kg
Packaging Info
Package Weight 2.985 lb
Box Dimensions (LxWxH) 11.4 x 8.6 x 3.5"
