Blackmagic Design Teranex Mini SDI to Analog 12G – Converter
Product Overview

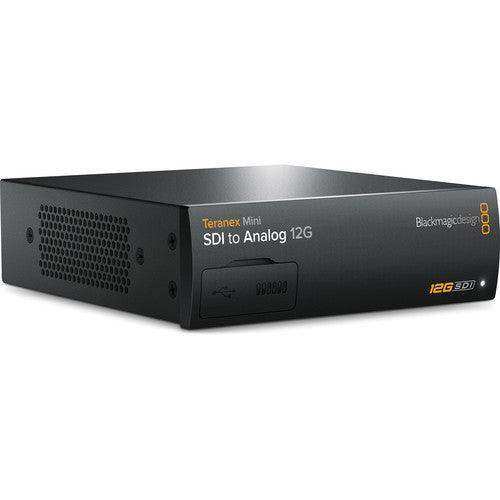

The Blackmagic Design Teranex Mini SDI to Analog 12G down-converts a 12G-SDI signal up to Full DCI 4K to analog, letting you connect high-resolution sources to component video equipment in HD or SD. Built on Teranex video processing, it adds switchable XLR audio outputs, a 12G-SDI loop output, Ethernet control with PoE, and an intelligent thermal design for rack, desktop, or cable-duct installation. It's a professional SDI-to-analog 12G converter for connecting modern sources to legacy gear.
Product Description

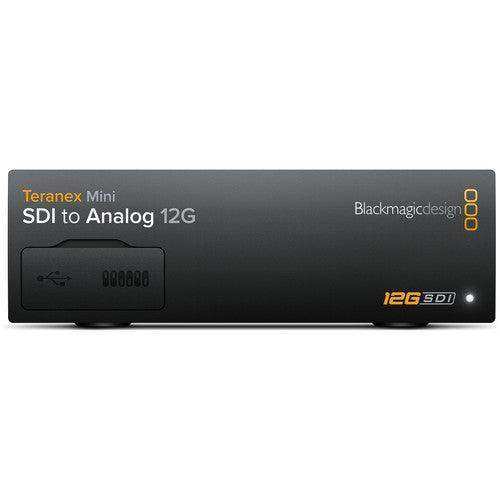

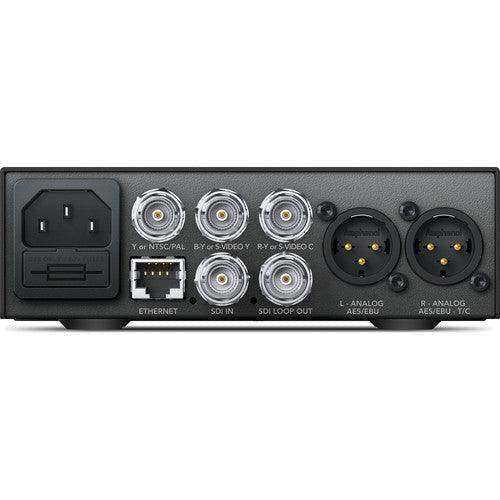

The Teranex Mini SDI to Analog 12G accepts a single 12G-SDI input (auto-switching SD/HD/2K/4K up to 4096x2160p) and outputs analog component SD/HD, NTSC, PAL, and S-Video, with HD down-conversion so high-resolution sources work with component equipment. A 12G-SDI loop output passes the signal on, and audio from the SDI stream can be output via full-size XLR connectors switchable between balanced analog (2-channel) and AES/EBU digital (4-channel), with the right XLR configurable for timecode output. A rear Ethernet port allows remote management or PoE power, and a built-in 90–240V supply means you only need a standard IEC cable (sold separately) if not using PoE. The standard front panel has mini switches for instant settings changes and can be swapped for the optional Smart Panel with a spin knob, color LCD, and six buttons to view the conversion, monitor audio, and verify timecode and video standard. Multiple units can be managed over Ethernet from Mac or Windows using the included Converter Utility, and a smart crossflow thermal design keeps units cool when rack-mounted side by side — up to three fit in an optional 1U 19" rack tray.
Key Features
- 12G-SDI to analog — Down-convert up to Full DCI 4K to component SD/HD, NTSC, PAL, S-Video.
- SDI loop output — Pass the 12G-SDI signal through with full re-clocking.
- Switchable XLR audio out — Balanced analog or AES/EBU digital; right XLR for timecode.
- Ethernet control and PoE — Remote management or power over Ethernet.
- Smart thermal design — Crossflow cooling for side-by-side rack mounting.
- Flexible mounting — Desktop, cable duct, or three units in an optional 1U rack tray.
- Optional Smart Panel — Spin knob, color LCD, and six buttons replace the mini-switch panel.
- Converter Utility — Manage multiple units from Mac or Windows.
Technical Specifications
| Model | CONVNTRM/BA/SDIAN |
| Video Input | 1× 12G-SDI (auto SD/HD/2K/4K) |
| Video Outputs | Analog component SD/HD, NTSC, PAL, S-Video; 1× 12G-SDI loop |
| Audio Outputs | 2× XLR — analog (2-ch) or AES/EBU (4-ch); right XLR timecode-capable |
| Max Format | Up to DCI 4K 4096×2160p60 (HD down-conversion to analog) |
| Sampling | SDI 4:2:2 / 4:4:4; audio 48 kHz / 24-bit |
| Control | USB and Ethernet; mini switches; optional Smart Panel |
| Standards | SMPTE 259M–425M; ITU-R BT.601/656 |
| Power | 90–240 VAC (IEC C14) or PoE (48 VDC); 15 W |
| Dimensions | 5.5 × 1.8 × 6.7" / 14 × 4.6 × 17 cm |
| Weight | 1.5 lb / 0.7 kg |
Frequently Asked Questions
What does it convert?
A 12G-SDI input up to Full DCI 4K to analog component SD/HD, NTSC, PAL, and S-Video for legacy equipment.
Does it pass the SDI signal through?
Yes — a 12G-SDI loop output carries the signal on with full re-clocking.
How is audio handled?
Audio from the SDI stream can be output via XLR, switchable between balanced analog and AES/EBU digital.
How is it powered?
Via a built-in 90–240V supply (standard IEC cable, sold separately) or PoE over the Ethernet port.
