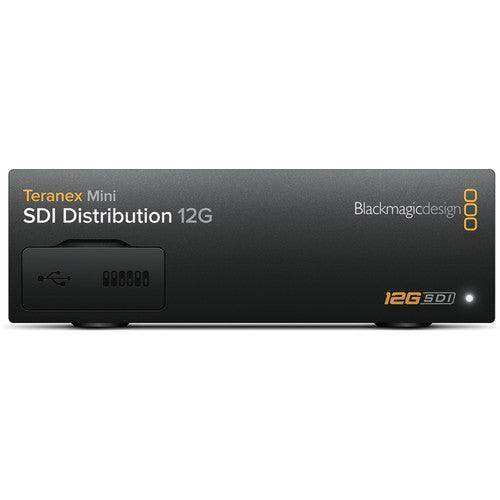

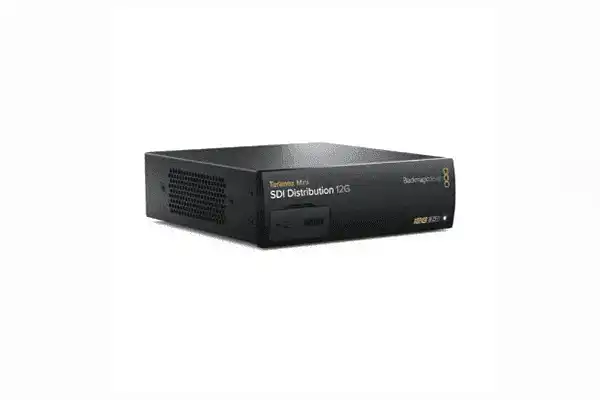

Blackmagic Design Teranex Mini SDI 12G Distribution - CONVNTRM/EA/DA

Availability: Call for Availability
Availability: Direct Ship
Blackmagic Design SKU: CONVNTRM/EA/DA
No reviews
Price:
$545.00

Description

Distribute a single SDI video input to up to eight SDI outputs. Features the latest multi rate 12G-SDI connections with full SDI re-clocking allowing the converter to automatically switch between all SD, HD and Ultra HD formats up to 2160p60. Perfect for distributing a single SDI signal to multiple devices such as monitors, switchers and encoders.

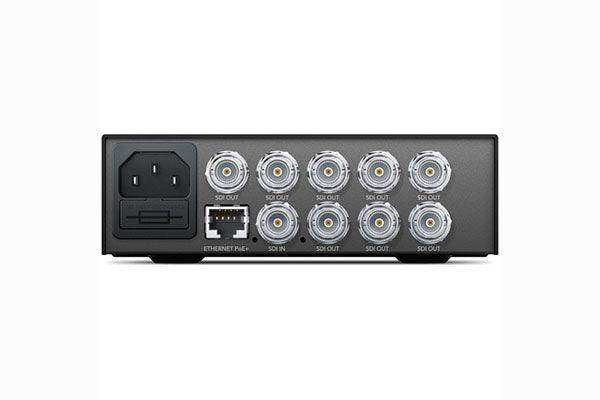

Connections:
SDI Video Input
1 x 12G-SDI SD/HD/2K/4K auto switching.

SDI Video Output
8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input

Multi Rate Support
Automatic switching between SD/HD/2K and 4K


Updates and Configuration
USB or Ethernet


Re-Clocking
Yes

Standards:
SD Format Support
525/29.97 NTSC, 625/25 PAL

HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.


2K Format Support
1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25,

Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60.

4K Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.

SDI Compliance
SMPTE 259M, 292M, 296M, 372M, 425M, ST 2081 & ST 2082

SDI Video Rates
SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.

SDI Video Sampling
4:2:2 and 4:4:4

SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.

SDI Color Space
YUV & RGB

Software

Software Control
Mac OS X™ and Windows™ software upgrade via USB and Ethernet.
Internal Software Upgrade
Via included updater application

Settings Control

Basic Settings Control
Mini Switches, USB and Ethernet via free software utility.

Optional Front Panel Control
Front mounted Smart Panel with LCD, rotary knob and six settings buttons.

Power Requirements

Power Supply
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.

Power Over Ethernet
Can be powered via 48V DC using PoE+ (power over ethernet).

Power Consumption
18 Watts
Operational Voltage Range
90 - 240V AC

Environmental Specifications
Operating Temperature
0°to 40°C (32° to 104°F)

Storage Temperature
-20°to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non-condensing

What's Included:
Teranex Mini - S DI Distribution 12G
Software SD Card

Warranty
3 year Limited Manufacturer’s Warranty.

  • 1 x 12G-SDI SD/HD/2K/4K auto switching
  • Automatic switching between SD/HD/ 2K and 4K
  • USB or Ethernet
  • Automatic switching between SD/HD/ 2K and 4K
Packaging Info
Package Weight 2.2 lb
Box Dimensions (LxWxH) 9 x 7.7 x 2.5"
