Blackmagic Design Teranex Mini Quad SDI to SDI 12G Converter - CONVNTRM/DA/QDSDI

Blackmagic Design SKU: CONVNTRM/DA/QDSDI
No reviews

Price:
Sale price$545.00

Description

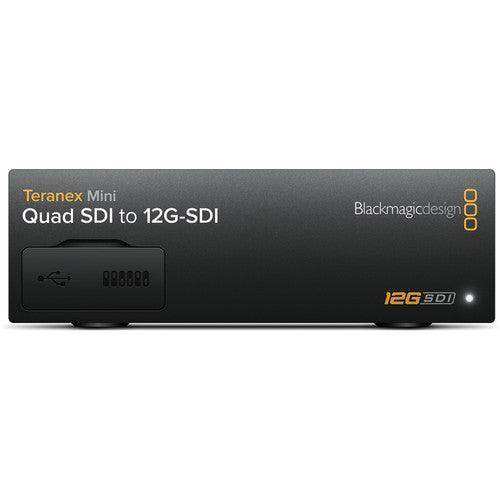

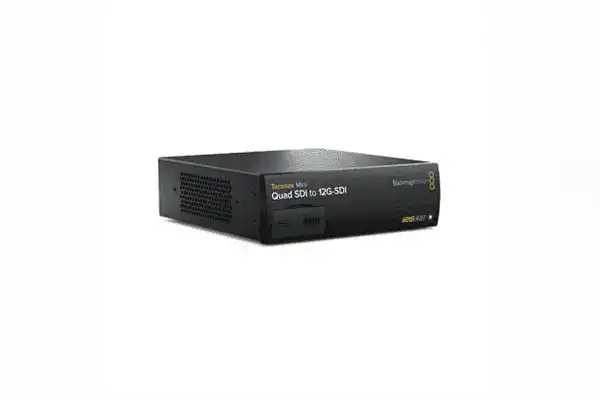

Connect Quad-Link SDI sources to 12G-SDI equipment with the Blackmagic Design Teranex Mini Quad SDI to SDI 12G Converter. Housed in a low-profile sleek black enclosure, this Teranex Mini Converter fits in studio and post-production workflows without disrupting the decor. While the functionality of this unit may be obvious, connecting the unit via Ethernet enables you to use the included control software to complete control and make adjustments to fit your needs. As an additional option, a front panel controller with a built-in confidence monitor can be purchased separately. DIP switch controls are also available behind the front panel flap.

Quad-Link and 12G-SDI protocols support high resolution video including DCI and UHD 4K as well as HD and SD signals. Automatic input signal detection acknowledges the signal resolution and configures the input accordingly. 24-bit 48 kHz broadcast-quality audio is supported.


  • Quad-Link 12G-SDI Input
  • 2 Single-Link 12G-SDI Outputs
  • Supports SD, HD, UHD 4K & DCI 4K Signals
  • Automatic Input Signal Detection
  • 24-bit, 48 kHz Audio
  • Control via DIP Switches or Software
  • USB 2.0 Port for Firmware Updates
  • Requires IEC C14 Power Cable


Blackmagic Design Teranex Mini Specs

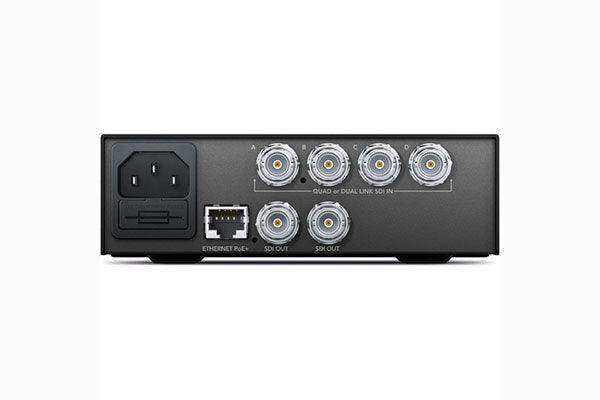

Video Inputs 4 x BNC 12G-SDI
Video Outputs 2 x BNC 12G-SDI
Other I/O 1 x RJ-45 Ethernet
1 x USB
Re-clocking Yes
Format Support 4096 x 2160 23.98/24/25/29.97/30
3840 x 2160 23.98/24/25/29.97/30/50/60
2048 x 1080p 23.98/24/25
2048 x 2160PsF 23.98/24/25
1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24/25
1080i 50/59.94/60
720p 50/59.94/60
NTSC
PAL
SDI Video Sampling 4:2:2, 4:4:4
SDI Audio Sampling 24-bit, 48 kHz
SDI Color Space YUV, RGB
Settings Control Front-panel mini switches
USB
Ethernet
Front-mounted smart panel (available separately)
Power Supply Built-in AC power supply, required IEC C14 power cable not included
PoE+ (Power over Ethernet)
Power Consumption 16 W
Operational Voltage Range 90-240 VAC
Environmental Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Relative Humidity: 0-90%, non-condensing
Dimensions 5.5 x 6.7 x 1.75" / 140 x 170 x 44 mm
Weight 1.3 lb / 580 g
Packaging Info
Package Weight 1.935 lb
Box Dimensions (LxWxH) 9 x 7.85 x 2.3"
